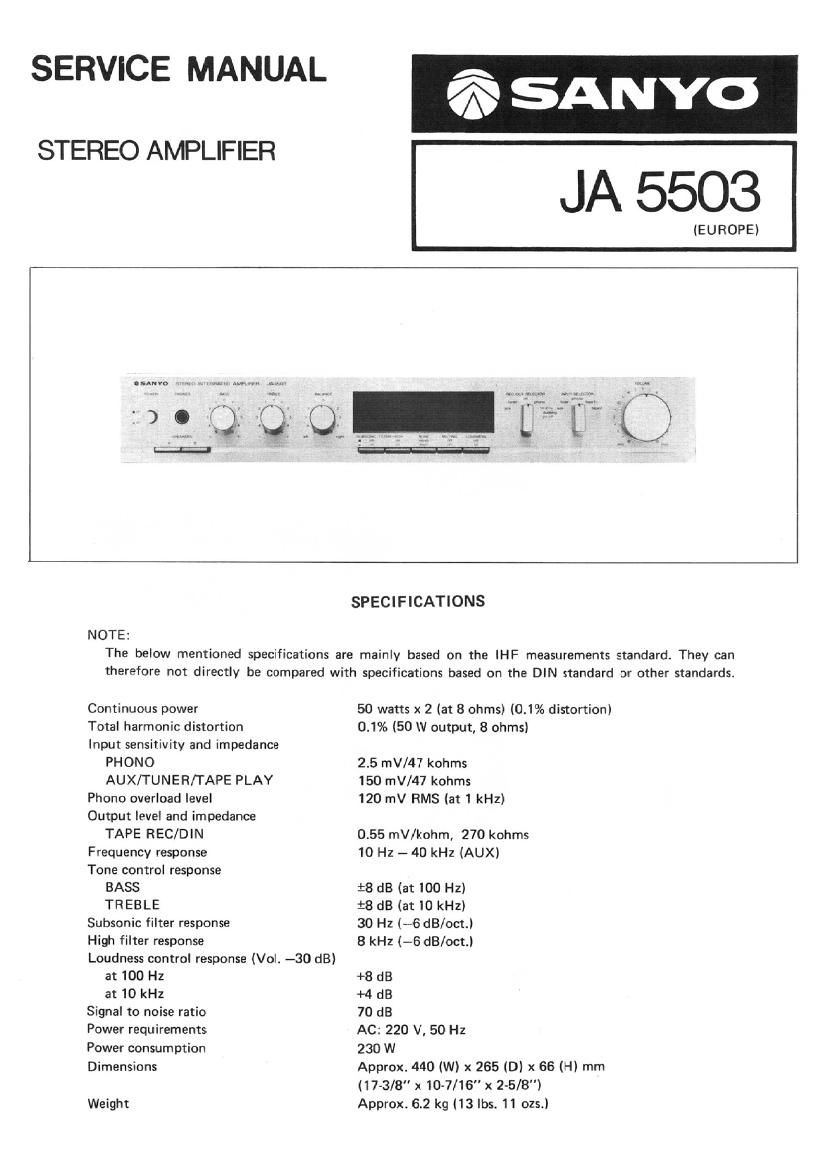

SERVICE MANUAL A
75 SANYO

JA 5503 (

STEREO AMPLIFIER

(EUROPE)

NOTE:

SPECIFICATIONS

The below mentioned specifications are mainly based on the IHF measurements standard. They can
therefore not directly be compared with specifications based on the DIN standard or other standards.

Continuous power

Total harmonic distortion

Input sensitivity and impedance
PHONO
AUX/TUNER/TAPE PLAY

Phono overload level

Output level and impedance
TAPE REC/DIN

Frequency response

Tone control response
BASS
TREBLE

Subsonic iilter response

High filter response

Loudness control response (Vol. -30 dB)

50 watts x 2 (at 8 ohms) (0.1% distortion)
0.1% (50 W output, 8 ohms)

2,5 mV/47 kohms
150 rnV/47 kohms
120 mV RMS (at 1 kHz)

0.55 mV/kohm, 270 kohms
10 Hz - 40 kHz (AUX)

i8 dB (at 100 H1)
18 dB (at 10 kHz)
30 Hz (-6 dB/oct.)
3 kHz (-5 dB/oct.)

at 100 Hz +8 dB

at 10 kHz +4 dB
Signal to noise ratio 70 dB
Power requirements AC: 220 V, 50 Hz
Power consumption 230 W

Dimensions Approx. 440 (W) x 265 (D) x 65 (H) mm
(17-3/8" x 10-7/16" x 2-5/8")
Weight Approx. 6.2 kg (13 lbs. 11 ozs.)
