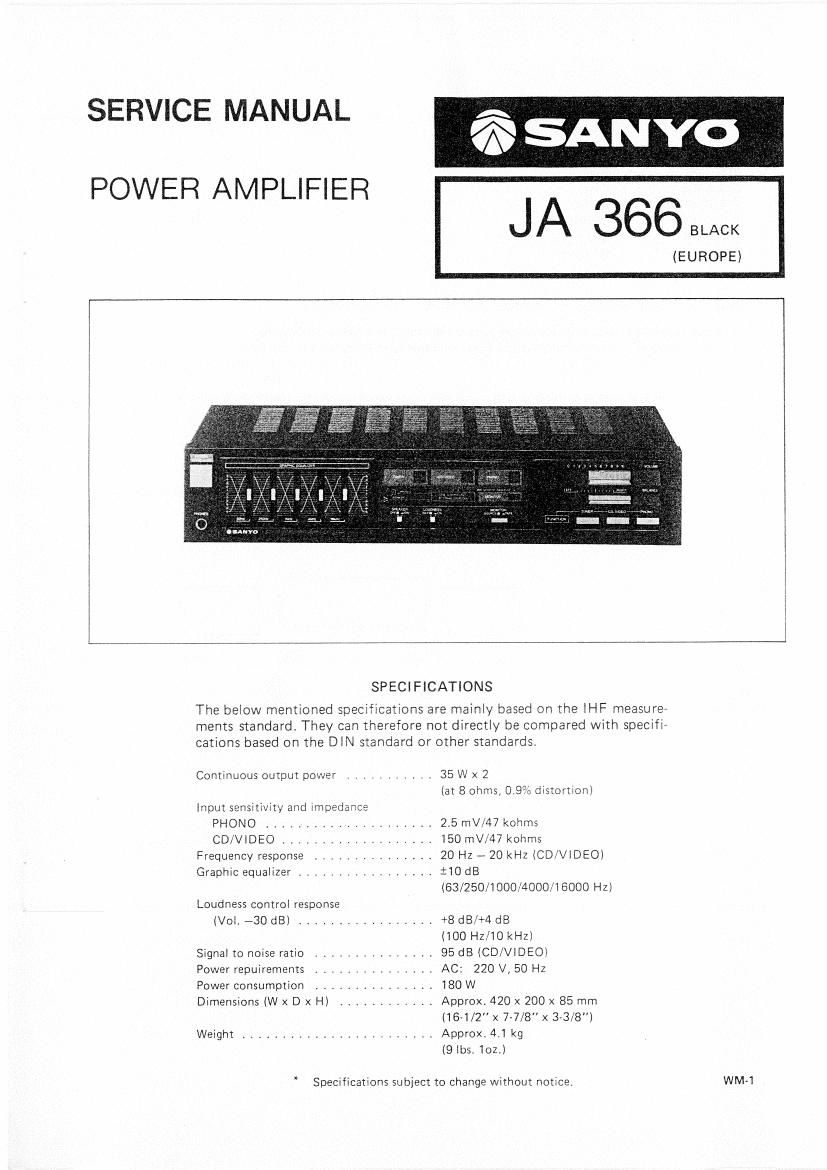

SERVICE MANUAL
55 SANYO
JA 366
POWER AMPLIFIER
(EUROPE)
SPECIFICATIONS
The beiow mentioned specifications are mainiy based on the IHF measure
merits standard. They can therefore not directiy be compared with specifi-
cations based on the DIN standard or other standards.
. 35 W x 2
(at 8 ohms, 0,935 distortion)
Continuous output power
Input sensitivity and impedance
PHONO . ........... 2.5 mV/47 kohms
CD/VIDEO ...................
Frequency response ...............
Graphic equalizer .................
Loudness control response
(Vol, #30 dB) .................
Signal to noise ratio
Power repuirements
Power consumption ...............
Dimensions (W x D x H)
Weight ........................
Specifications subject to change without notice,
150 mV/47 1(0th
20 Hz A 20 kHz (CD/VIDEO)
:10 dB
(63/250/1000/4000/16000 Hz)
+8 LIB/*4 dB
(IOU Hz/iOkHz)
95 d8 (CD/VIDEO)
AC: 220 V, 50 Hz
180W
Approx. 420 x 200 x 85 mm
HEM/2" x 77/8" x 3-3/8")
Approx, 4} kg
(9 lbs. 101,)
WMeI
Page 2
BIAS CURRENT ADJUSTMENT
CONDITIONS
VOLUME
BALANCE
EQUALIZER
FUNCTION
SPEAKER
Output Load
Minimum
Center
Center
CD/VIDEO
OFF
No Load
Adjustment shou|d be made after 3 minutes that the power switch is turned on.
I. Adiust SVR703 to obtain 1.0 mV reading between xerminals of R709 for left channel.
2, Adjust SVH803 to obtain 1.0 mV reading beween terminals of R809 for right channel,
Q
was EBB9
@3
swam: svn so:
