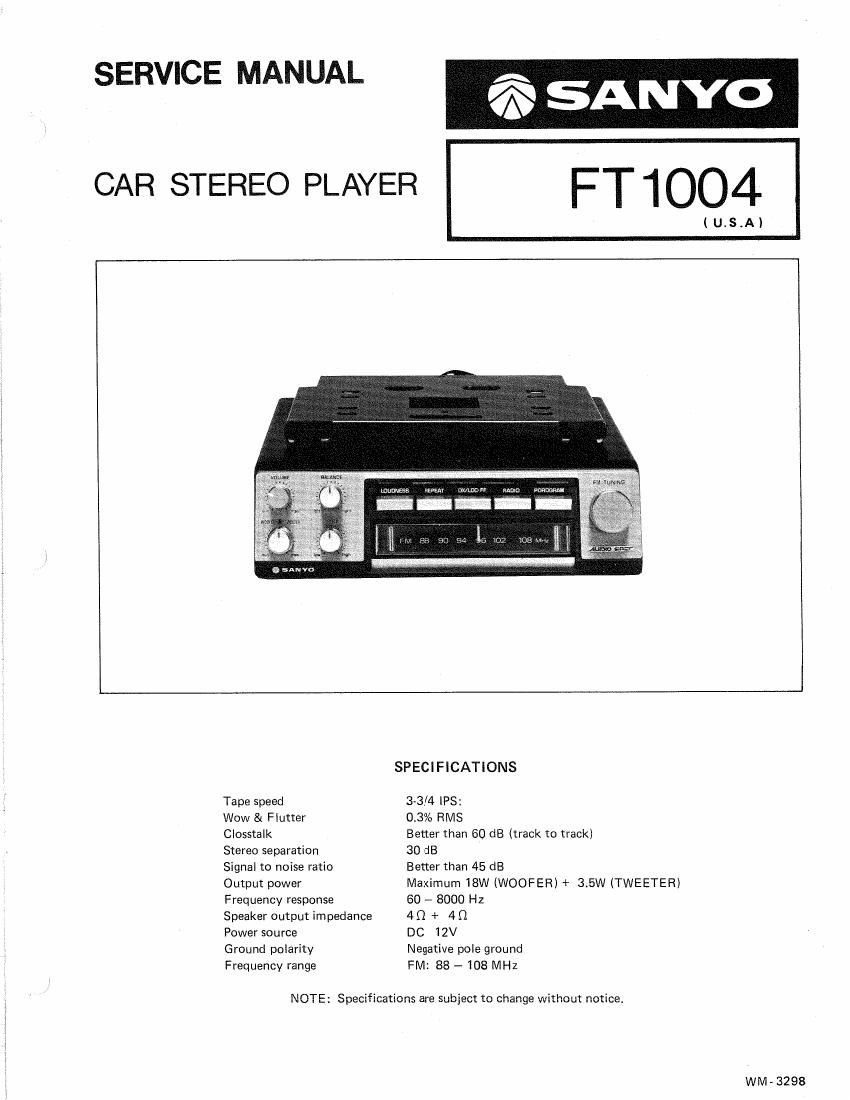

Sanyo FT 1004 Service Manual
This is the 12 pages manual for Sanyo FT 1004 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sanyo FT 1004 Service Manual (Ocr-read)
Page 2
TAPE H EAD ADJUSTMENT
Before adjustment, check that the tape head is clean.
If it is dirty, clean its surface with a cotton swab moistened
with head cleaner fluid.
Insert a tape cartridge into the player and select a program
which contains high frequency sound (piano or strings).
Turn the tone and tweeter control knobs fully clockwise
(maximum high position).
Insert a screwdriver through the opening on top of the unit.
Turn the tape head height adjusting plate nut (see Ref.
No. 21 on Mechanism Exploded View) clockwise or counter-
clockwise until only one program is clearly heard without
crosstalk.
Insert a screwdriver through the opening on the bottom of
the unit. Turn the azimuth adjusting screw clockwise or
counter-clockwise until the clearest high frequency reprodu-
ction is obtained. if this adjustment does not improve the
high frequency reproduction, check for:
A. worn tape head
B. defective component in the audio circuit
C. a magnetized tape head
TAPE HEAD
CAPSTAN
Fig. 2
COTTON SWAB
HEIGHT
lll'l
AZlMUTH
