Sanyo ECD T1550 Owners Manual

This is the 16 pages manual for Sanyo ECD T1550 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 16

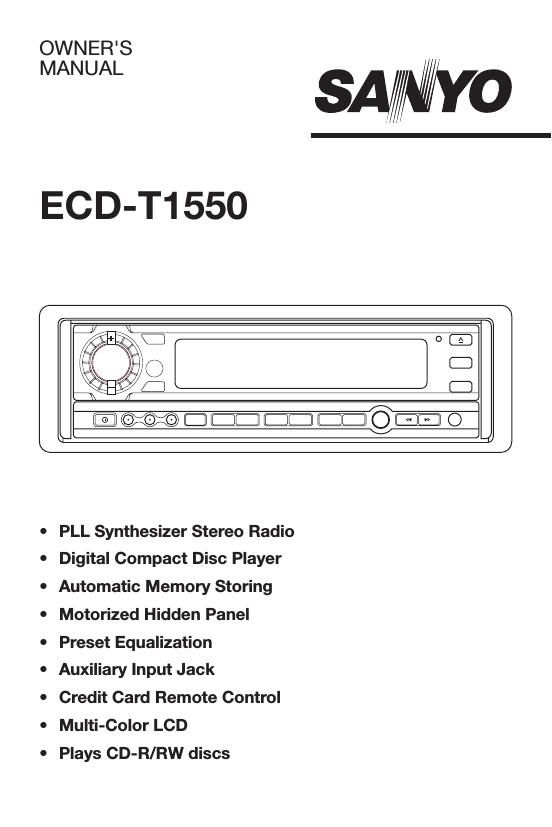

Sanyo ECD T1550 Owners Manual

Extracted text from Sanyo ECD T1550 Owners Manual (Ocr-read)


Page 1

2 CONTENTS Installation ......................................3 Take out screw before installation ...3 DIN Front-Mount (Method A) ...........3 Installing the unit ..........................3 Removing the unit ........................4 DIN Rear-Mount (Method B) ............5 Using the front panel .....................6 Wiring Connection .........................7 Operation........................................8 Switching on/off the unit..................9 Faceplate release ............................9 Sound adjustment ...........................9 Loudness .........................................9 Set the clock....................................9 Mute ................................................9 Equalization .....................................9 Liquid crystal display .......................9 Flashing LED ...................................9 Remote sensor ...............................9 Reset function .................................9 Radio operation ...............................10 Switching to radio mode ..............10 Selecting the frequency band ......10 Selecting station ..........................10 Local/distant ................................10 Automatic memory storing& program scanning ........................10 Station storing ..............................10 Mono/stereo .................................10 CD operation ...................................10 Switching to CD mode .................10 Selecting tracks............................11 Pausing playing ............................11 Previewing all tracks ....................11Repeating the same track ............11 Playing all tracks in random .........11 Ejecting a disc ..............................11 Disc notes ........................................11 Specification ....................................12 Trouble shooting ..............................13

Page 2

3 Notes: - Choose the mounting location where the unit will not interfere with the normal activity of the driver. - Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly. Test to see if the system is working properly. - Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the drivers way and cannot injure the passenger if there is a sudden stop. - If installation angle exceeds 30˚ from horizontal, the unit might not give its optimum performance. - Avoid installing the unit where it would be subject to high temperature, such as direct sunlight, hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. DIN FRONT/REAR-MOUNT This unit can be properly installed either from Front (conventional DIN Front- mount) or Rear (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods. 30˚ INSTALLATION TAKE OUT SCREW BEFORE INSTALLATION Before install the unit, please remove the two screws. DIN FRONT-MOUNT (Method A) Installation Opening This unit can be installed in any dashboard having an opening as show below: Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit. 182 mm 53 mm Take out screw before installation
