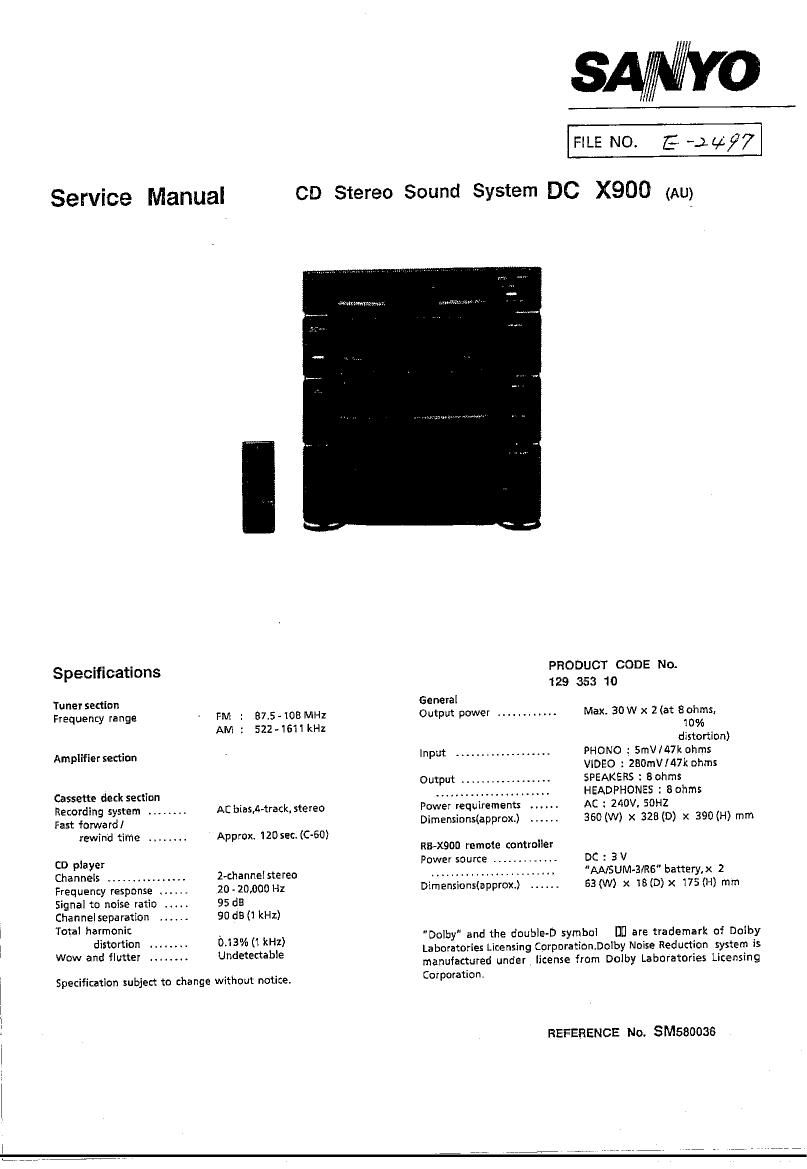

Service Manual
Specifications
Tuner section
Frequency range
Amplifier section
Cassette deck section
Recording system ........
Fast forward]
rewind time ........
CD player
Channels ................
Frequency response
Signal to noise ratio . ..
Channel separation ......
Total harmonic
distortion . .......
Wow and flutter
FM : 87.5-108MHZ
AM: 522-1611kHz
Al: bias,4»track, stereo
Approx. 1ZDsec. (C-60)
Zvchannel stereo
20 - 20,000 Hz
95 dB
90 dB (1 kHz)
6.13% (1 kHz)
undetectable
Specification subject to change without notice.
CD Stereo
mumyrmm
slew/Miro
FILE NO. E 2144;?
Sound System DC X900 (AU?
PRODUCT CODE No.
129 353 10
General
Output power ............
Power requirements . .
Dimensions(approx.) ......
RB-XQDD remote controller
Power source ..
Dimensmnshpprox.)
"Dolby" and the double-D symbol
Max. 30W x 2 (at thms,
10%
distortion)
PHONO : SmV/fl7k ohms
VIDEO : ZEOmVI47k ohms
SPEAKERS : Bohms
HEADPHONES : Sohms
AC : 240V. SOHZ
360 (W) x 328 (D) x 390 (H) mm
DC : 3 V
"AA/SUM-ZIRE" battery,x 2
63 (W) X 1803) X 175 (H) mm
DU are trademark of Dolby
Laboratories Licensing CorporationDolby Noise Reduction system is
manufactured under license from Dolby Laboratories Licensing
Corporation.
REFERENCE NO. 5M580036
Page 2
LASER BEAM SAFETY PRECAUTIONS
Do not look directly at the laser beam coming from the
pick-up or allow it to strike against your fingers. skin, etc.
Do not apply power if there is a broken part in the laser
output section oi the pickup,
Structural Safety Interlock
This model has a disc chuck lever and top lid. This disc chuck
lever and top lid prevent to expose the laser beam for users.
INVISIBLE LASER RADIATION EXPOSURE TO BEAM IS DANGEROUS CLASS I LASER PRODUCT
OUTPUT POWER : 0.6 mW MAX
WAVELENGTH 2 790 nm
HANDLING THE PICK-UP
l.
a.
F_-
RADIAIIBN WHBI
I'IPEN AND INTEHLOCK
timid-W
nVEl'll'llDlIBl.
ER
PANEL
CAUTION » USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED IN THE OPERATING INSTRUCTIONS MAY RESULTIN HAZARDOUS RADIAHON EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED 0R REPAIFIED BY ANYONE EXCEPT PROPERLY
QUALIFIED PERSONNEL
Shipping and storage cautions
The pick-up must be stored in a conductive bag until
immediately prior to its use.
. Do not drop it or subject it to impacts.
Repair cautions
. when handling the pick-up. be careful not to give it
undue force or shock by your hands. Otherwise the
pick-up may malfunction or the PCB may be cracked.
. The pick-up which has been minutely adjusted before
shipment as one part, Never touch and move the
adjusting points and setscrews of the pick-up unless
otherwise described in the item of adjustment to avoid
damage,
E.
A strong magnet is used in the pick-up.
Do not bring a magnet or other magnetized object near
to it.
. Cleaning the lens
*lf dust gets on the lens, clean it away by using an air
brush such as used for a camera lens.
*The lens is held in place by a spring.
if the center of the lens is dirty, carefully clean it
using cotton swab moistened with isopropylalcohoi.
Since special coating is made on the surface of the
lens which is made of plastics, do not use other kind
of alcohol and cleaning fluid to prevent damage to
the lens. Also, be careful not to bend the lens spring
when cleaning.
BEFORE REPAIRING THE CD PLAYER
1 .
Preparations
av Many It}. LSl and the Pick-up (laser diode) are used in
the compact disc player. These components are sensitive
to static electricity, and might be damaged by static
electricity or high voltage, so particular care should be
taken regarding this point.
. Many precision components and the lens are used in
the pick-up.
Never attempt to make repairs. or to store parts.
where the temperature or humidity is high, where
magnetism is strong. or where there is much dust.
2 Notes regarding repairs
. Be sure to first disconnect the power ping before
attempting to replace any component.
. All tools, instruments. etc, used for measuring must be
grounded.
Grounding can be accomplished by using conductive
metal sheet on the work bench.
To prevent AV leakage of the soldering iron. ground its
metal part.
Repair personnel must be grounded.
