Sanyo dc x5 077
This is the 45 pages manual for sanyo dc x5 077.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sanyo dc x5 077 (Ocr-read)

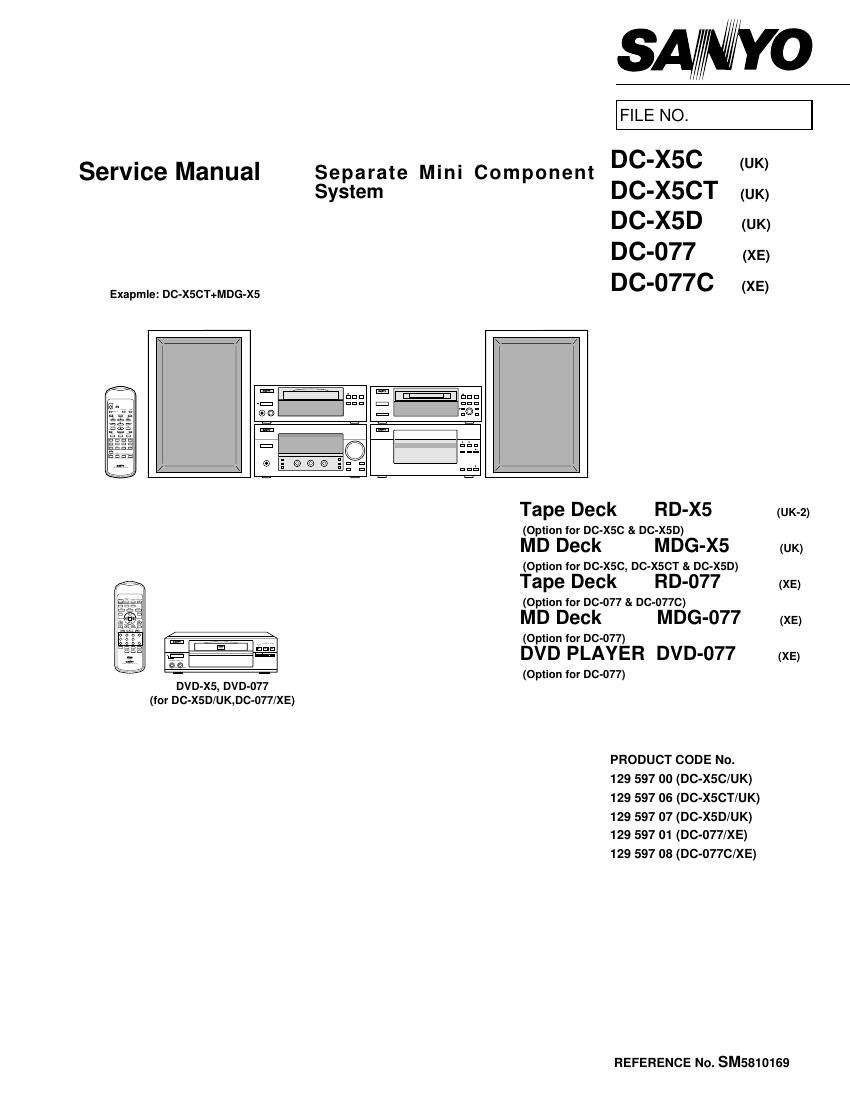

Page 1
- 1 - CONTENTS Tuner adjustments ........................................................... 7 Exploded view (Cabinet & Chassis) ...................................................... 8 Parts list ........................................................................... 9 IC block diagram & description ........................................ 16 FL display description ...................................................... 19 Schematic diagram (Tuner) .......................................................................... 20 (Pre-amplifier & Main) ................................................... 24 (Front) ........................................................................... 28 Wiring diagram (Tuner,Pre-amplifier, Pre-amplifier 2 & Sub P.T) .......... 22 (Main, Primary P.T & Secondary P.T) ........................... 26 (Front & Headphone) .................................................... 30 Wiring connection ............................................................ 32 TUNER/AMPLIFIER SECTION CD SECTION Laser beam safety precaution ........................................... 33 CD pick-up maintenace ..................................................... 33 CD pick-up replacement ................................................... 33 Exploded view (Cabinet & Chassis ) ...................................................... 34 Parts list ............................................................................ 35 Exploded view (CD changer mechanism ) ............................................. 37 Parts list(CD changer mechanism) ................................... 38 Exploded view (CD base mechanism ) .................................................. 38 IC block diagram & description ......................................... 39 Schematic diagram (CD) ................................................................................ 42 Wiring diagram (CD) ................................................................................ 44 TAPE DECK SECTION Tape deck adjustment ...................................................... 46 Exploded view (Cabinet & Chassis) ...................................................... 48 Parts list ........................................................................... 49 Exploded view (Tape mechanism) ........................................................ 51 IC block diagram & description ........................................ 52 Schematic diagram (Deck) ............................................................................ 54 Wiring diagram (Deck & Deck Switch) ................................................... 56 Specifications .................................................................... 2 Arrangement ..................................................................... 3 System Connections ......................................................... 4 What to do if ...................................................................... 6 DVD SECTION DVD .................................................................................. 58
Page 2
- 2 - TAPE DECK SECTION Track system .................... 4-track, 2-channel stereo Frequency response ........ 50 Hz to 16 kHz (CrO 2 tape) 50 Hz to 15 kHz (Normal tape) Signal-to-noise ratio ......... 60dB (Dolby B NR ON) Wow/flutter ....................... 0.12%(WRMS) Fast forward/rewind time .. Approx.110 sec. (C-60) Power supply ................... Supplied from the Tuner/Amplifier Dimensions ...................... 270 (W) x 122 (H) x 276 (D) mm Weight .............................. 1.9 kg TUNER SECTION Reception frequency ........ FM : 87.5 - 108 MHz AM : 522 - 1,611 kHz Output power ................... 70W x 2 (at 6 ohm, 10% distortion) Inputs ............................... VIDEO (AUDIO) : 500 mV/50k ohms Outputs ............................. SPEAKERS : 6 ohms PHONES : 8 - 32 ohms SUB WOOFER OUT : 10k ohms Power requirements ......... AC 230V, 50 Hz Power comsumption ........ 110W 0.8W (Ecology On standby mode) 16W (Ecology Off standby mode) Dimensions ...................... 270 (W) x 122 (H) x 287 (D) mm Weight .............................. 5.3 kg CD SECTION Type ................................. Changer, 3-disc Channels .......................... 2-channel stereo Sampling frequency ......... 44.1 kHz Pick-up ............................. Optical 3-beam semiconductor laser Laser output ..................... 0.6 mW (Continuous wave max.) Wave length ..................... 790 nm Frequency response ........ 20 Hz to 20 kHz Wow/flutter ....................... Below measurable limits Output .............................. OPTICAL DIGITAL OUT : Optical Power supply ................... Supplied from the Tuner/Amplifier Dimensions ...................... 270 (W) x 87 (H) x 276 (D) mm Weight .............................. 2.3 kg SPECIFICATIONS WIRESS REMOTE CONTROL Power requirements ......... 2 "R6 (HP7)" batteries Dimensions ...................... Approx. 66(W) x 200(H) x 32(D)mm Weight .............................. Approx. 115g (without batteries) Specifications subject to change without notice. SPEAKER SYSTEM Type ................................ 3 way bass reflex Built-in magnetic stray field compensation Unit used ......................... Woofer : 15 cm cone type Mid range : 8 cm cone type Tweeter : 3.5 cm balance driver Maximum power-handling capacity .......................... 140W (peak) Nominal impedance ........ 6 ohms Dimensions ..................... 230 (W) x 343 (H) x 253 (D) mm Weight ............................. 4.7 kg (per speaker) DVD SECTION Playback system .............. DVD-Video, Video CD,CD Playback standard ........... PAL or NTSC Laser ................................ 44.1 kHz Pick-up Wave length ................. 650 nm (Semiconductor laser) Laser output (Continuous wave max.) 1 mW (DVD) 0.5 mW (CD) Frequency range (digital audio) ......................................... 4 Hz to 44 kHz (DVD fs:96kHz) Signal to noise ratio ......... More than 105dB Harmonic distortion (digital auidio) ......................................... 0.003% Wow and flutter ................ Below measurable level Outputs Digital out ..................... for optical cable A/V Euro connector ...... for Euro-AV cable S-Video out .................. Y:1.0 Vp-p(75 )NTSC , 1.0 Vp-p (75 ) PAL C: 0.286 Vp-p (75 ) NTSC 0.3 Vp-p (75 ) PAL Video out ...................... 1.0 Vp-p (75 ) Audio out ...................... 1.9 V rms Power requirements ......... AC 230 V, 50 Hz Power consumption ......... 16 W, Less than 2W (standby mode) Dimensionsr ..................... 270(W) x 87(H) x 282(D) mm Weight .............................. 2.4kg
