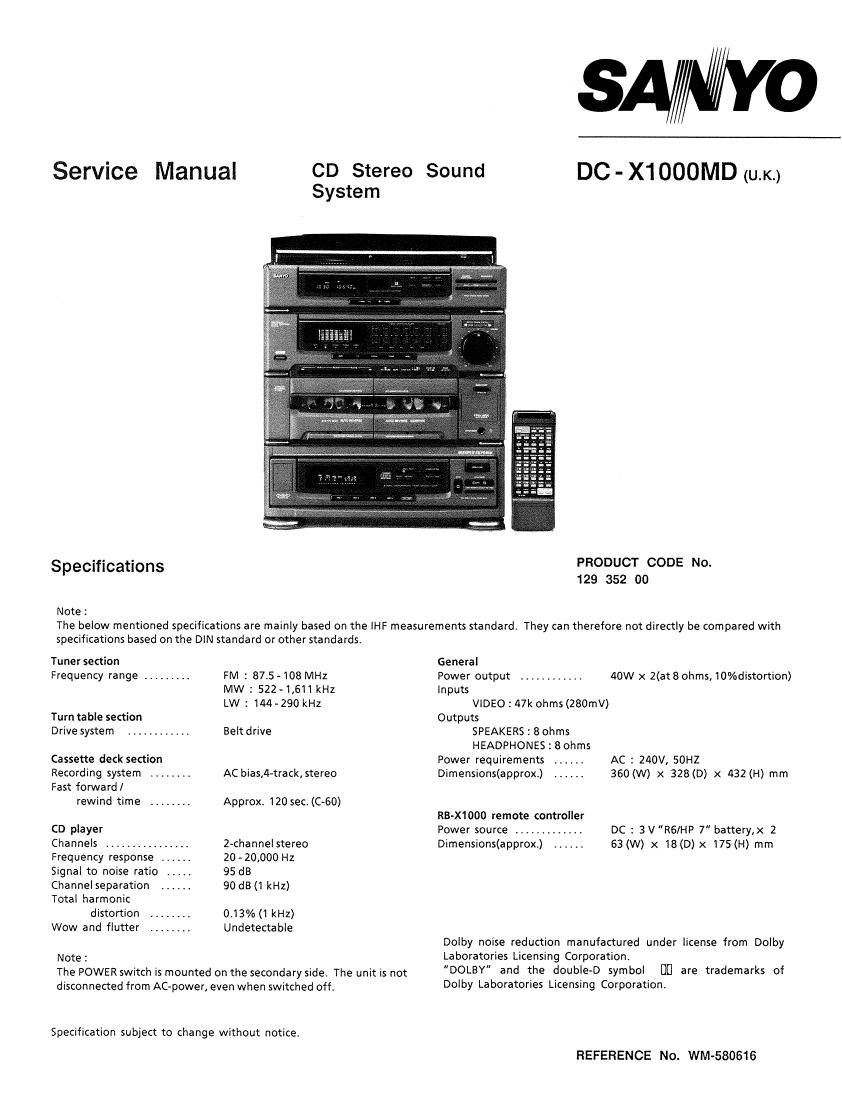

Page 1
Service Manual
Specifications
Note :
CD Stereo Sound
System
SA/WYO
DC - X1000MD (U.K.)
PRODUCT CODE N0.
129 352 00
The below mentioned specifications are mainly based on the |HF measurements standard. They can therefore not directly be compared with
specifications based on the DIN standard or other standards.
Tuner section
Frequency range .........
Tum table section
Drive system ............
Cassette deck section
Recording system ........
Fast forward/
rewind time ........
CD player
Channels
Frequency response
Signal to noise ratio ,
Channel separation ......
Total harmonic
distortion
Wow and flutter
Note:
FM : 87.5- 108 MHZ
MW 2 522 - 1,611 kHz
LW: 144 - 290 kHz
Beltdrive
AC bias.4-track, stereo
Approx. 120 sec. (C-60)
2-channel stereo
20 - 20,000 Hz
95 dB
90 dB (1 kHz)
0.13% (1 kHz)
undetectable
The POWER switch is mounted on the secondary side. The unit is not
disconnected from AC-power. even when switched off.
Specification subject to change without notice.
General
Power output ............
inputs
40W x 2(at 8 ohms,10%distortion)
VIDEO: 47k ohms (280mV)
Outputs
SPEAKERS : Bohms
HEADPHONES : Sohms
Power requirements
Dimensions(approx,)
AC : 240V, SOHZ
360 (W) x 328 (D) x 432 (H) mm
RB-X1000 remote controller
Power source
. DC : 3VR6IHP 7" battery,>< 2
Dimensions(approx.) ......
63(W) x 18(D) x 175(H) mm
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY" and the double~D symbol DCI are trademarks of
Dolby Laboratories Licensing Corporation.
REFERENCE No. WM-580616
