Sanyo dc f410 f410u

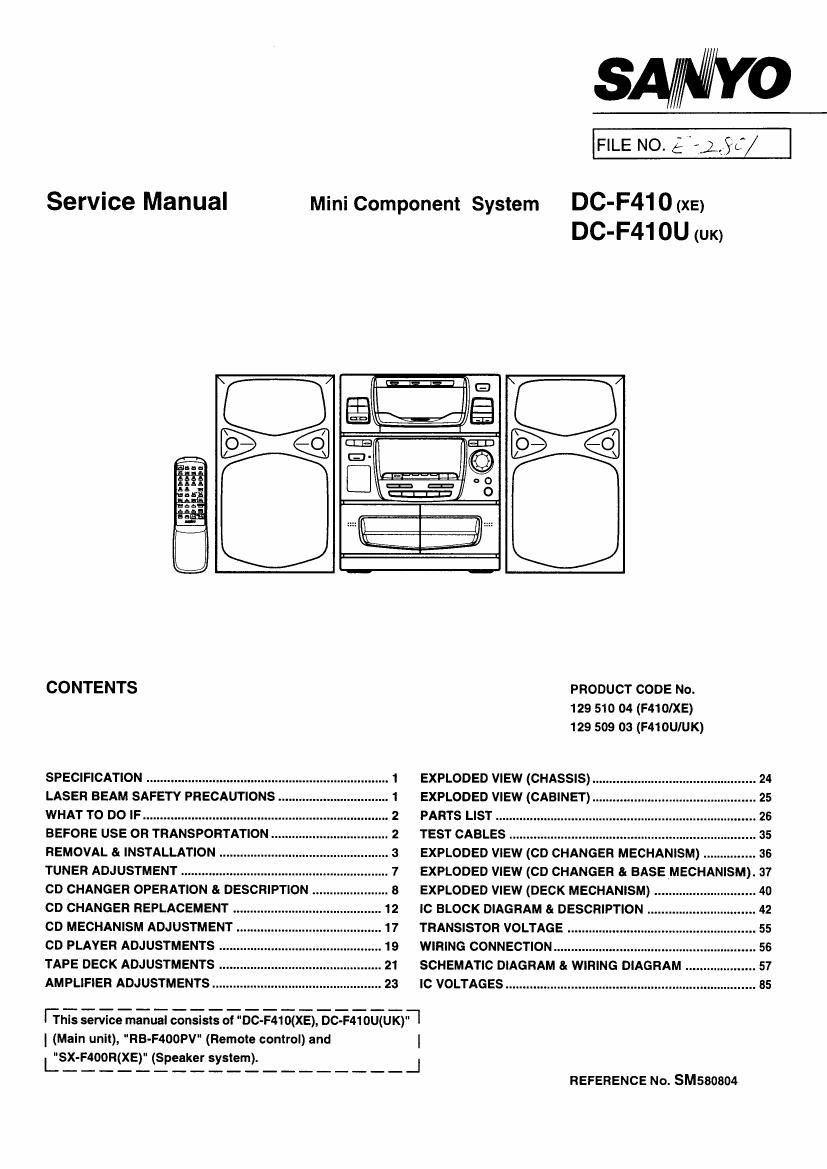

Page 1

Service Manual

CONTENTS

SPECIFICATION ...................................................................... I
LASER BEAM SAFETY PRECAUTIONS
WHAT TO DO IF ......................................
BEFORE USE OR TRANSPORTATION .
REMOVAL & INSTALLATION ..
TUNER ADJUSTMENT ..........
CD CHANGER OPERATION 8- DESCRIPTION
CD CHANGER REPLACEMENT .......................
CD MECHANISM ADJUSTMENT .
CD PLAYER ADJUSTMENTS ......
TAPE DECK ADJUSTMENTS
AMPLIFIER ADJUSTMENTS .....

| (Main unit), "RB-F400PV" (Remote control) and
LISX-F4OOR(XE)" (Speaker sysIem).

Mini Component System

SAMYO

FILE NO. 5 21,5;

DC-F410 (XE)
DC-F410U (UK)

A

PRODUCT CODE No.
129 510 04 (F410IXE)
129 509 03 (F410U/UK)

EXPLODED VIEW (CHASSIS) ............................................... 24
EXPLODED VIEW (CABINET) 25
PARTS LIST ........................... 26
TEST CABLES ......................................................... 35
EXPLODED VIEW (CD CHANGER MECHANISM).
EXPLODED VIEW (CD CHANGER & BASE MECHANISM). 37
EXPLODED VIEW (DECK MECHANISM) ..
IC BLOCK DIAGRAM 8: DESCRIPTION
TRANSISTOR VOLTAGE ..
WIRING CONNECTION ......
SCHEMATIC DIAGRAM 8: WIRING DIAGRAM
IC VOLTAGES .......

REFERENCE No. SM580804

Page 2

SPECIFICATIONS

Note:

The below mentioned specifications are mainly based on the IHF measurements standard. They can therefore not directly be
compared with specifications based on the DIN standard or other standards.

Tuner section

Reception frequency .............. FM : 87.5 - 108 MHz
MW: 522 - 1611 kHz
LW: 144 - 288 kHz

CD player section

Type .. Changer, 3-disc

Channels. .. 2-channel stereo

Sampling frequency .. 44.1 kHz

Pick-up Optical 3-beam semiconductor
laser

Laser output .. .. 0.6 mW (Continuous wave max.)

Wave length .. .. 790 nm

Frequency response .. .. 20 Hz to 20 kHz

Wow/flutter .............. .. Below measurable limits

Cassette deck section

Track system: ........................ 4-track, 2-channel stereo

Frequency response .............. 50 Hz to 15 kHz (Cr02 tape)
50 Hz to 14 kHz (Normal tape)

Signal-to-noise ratio .. 60 dB (Dolby NR ON)

Wow/flutter .............. .. 0.12% (WRMS)
Fast forward/rewind time ....... Approx. 110 sec. (0-60)

LASER BEAM SAFETY PRECAUTION

Amplifier section

Output power 80 W x 2 (at 6 ohms, 10

distortion)

.. Four electronic presets

.. VlDEO/PHONO IN: 400 mV
(50k ohms)/4 mV(50k ohms)

.. 300 mV/75k ohms

.. PROCESSOR OUT: 430 mV
SPEAKERS: 6 ohms
PHONES: 8 - 32 ohms

.. AC 230 V, 50 Hz

120 W

270(W) x 330(H) x 348(0) mm

10.4 kg

Sound preset
Inputs .

PROCESSOR lN
Outputs ...............

Power requirements
Power consumption
Dimensions ..
Weight

Speaker systems (DC-F410(XE) ONLY)

Type ....... ..3 way bass reflex

Unit used .. Woofer: 16 cm cone type
Mid range: 5 cm cone type
Tweeter: piezoelectric

Maximum

Power-handling capacity ..
Nominal impedance ..
Dimensions ..
Weight .......

.. 180 W (peak)

.. 6 ohms

.. 200(W) x 330(H) x 267(D) mm
.. 3.7 kg (per speaker)

Specifications subject to change without notice.

- Pick-up that emits a laser beam is used in this CD player section.

CLASILASERPHIDUCT
LUCKAN'ILAERLAITE
KLASSIlASERAPPARAT

CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL - usvuuc LASER STRALING VED ABNING, NAR
SIKKERHEDSAFBRVDERE ER UDE AF FUNKTION, UNDGA ups IETI'ELSE
FOR STRALING.

VARNING- OSYNLIG LASER STRALNING NAR DENNA DEL AR OPPNAD
OCH SPARR AR URKOPPLAD. STRALEN AR FARLIG.

VOHSICHT- iUNSIcHTBARE LASERSTRAHLUNG TRITT AUS. WENN
DECKEL GEOFFNET UND WENN SICHERHEITSVERRIEGELUNG
UBERBRUCKT IST. NICHT DEM STRAHL AUSSETZEN.

VARO- AVATTAESSA JA SUOJALUKITUS OHITEI'I'AESSA OLET ALTTIINA
NAKYMATTOMALLE LASERSATEILVLLE. ALA KATSO SATEESEEN.

IIIIIIIIIIIIIIIIJ
(5 000000000 5,
O o
