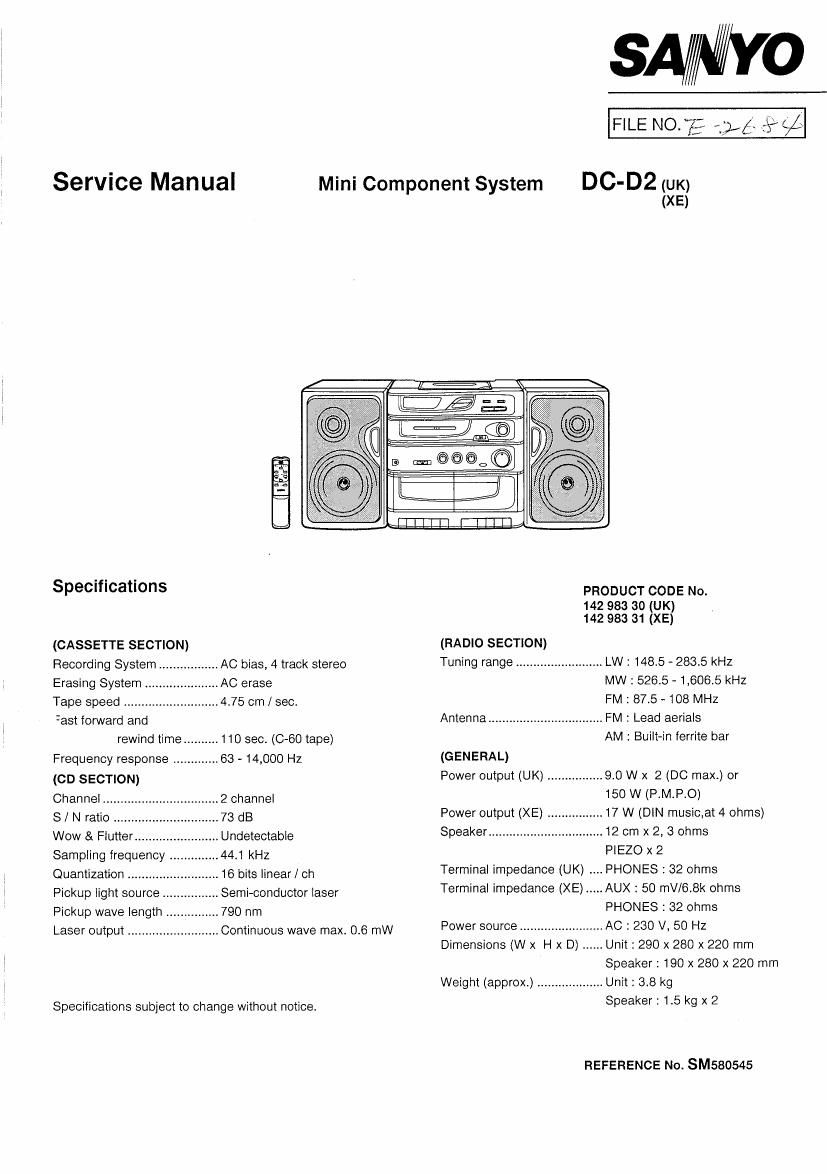

Service Manual
Mini Component System
SNWYO
FlLE No.7; 32,5. 5>§L
DC-D2 (UK)
(XE)
Specifications
(CASSETTE SECTION)
Recording System ................. AC bias, 4 track stereo
Erasing System ...AC erase
Tape speed ......... 4.75 cm / sec.
:ast forward and
rewind time .110 sec. (0-60 tape)
Frequency response .....
(CD SECTION)
Channel ..
...63 ~14,000 Hz
.2 channel
S/ N ratio .. ....73 dB
Wow & Flutter .......... Undetectable
Sampling frequency ....44.1 kHz
Quantization ............ 16 bits linear / ch
Semi-conductor laser
790 nm
Continuous wave max. 0.6 mW
Pickup light source ..
Pickup wave length .
Laser output .....
Specifications subject to change without notice.
PRODUCT cone No.
142 933 so (UK)
142 983 31 (XE)
(RADIO SECTION)
Tuning range ......................... LW: 148.5 - 283.5 kHz
MW : 526.5 -1,606.5 kHz
FM : 87.5 ~ 108 MHz
Antenna ................................. FM : Lead aerials
AM : Built-in ferrite bar
(GENERAL)
Power output (UK). 9.0 W x 2 (DC max.) or
150 W (P.M.P.O)
17 W (DlN music,at 4 ohms)
12 cm x 2, 3 ohms
PIEZO x 2
Terminal impedance (UK) PHONES : 32 ohms
Terminal impedance (XE) ..... AUX 2 50 mV/6.8k ohms
PHONES : 32 ohms
Power source ........................ AC : 230 V, 50 H2
Dimensions (W x H x D) ...... Unit : 290 x 280 X 220 mm
Speaker: 190 x 280 x 220 mm
Unit : 3.8 kg
Speaker: 1.5 kg x 2
Power output (XE) .
Speaker ..................
Weight (approx)
REFERENCE No. SM580545
