Sanyo CDP 244 Owners Manual
This is the 9 pages manual for Sanyo CDP 244 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sanyo CDP 244 Owners Manual (Ocr-read)

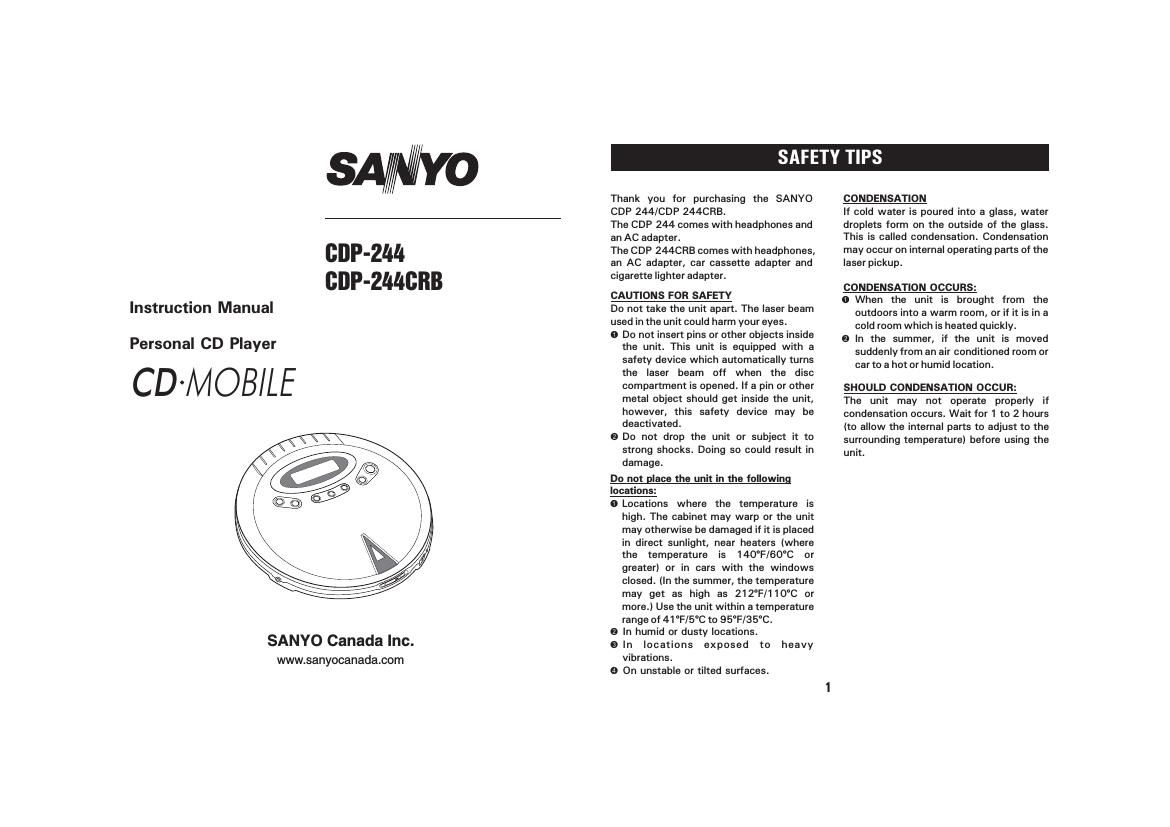

Page 1
3 2 THIS SET EMPLOYS AN OPTICAL LASER BEAM SYSTEM IN THE CD MECHANISM, DESIGNED WITH BUILT IN SAFEGUARDS. DO NOT ATTEMPT TO DISASSEMBLE. EXPOSURE TO THIS INVISIBLE LASER LIGHT BEAM MAY BE HARMFUL TO THE HUMAN EYE. THIS IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS, ADJUSTMENTS OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN HAZARDOUS LASER LIGHT BEAM EXPOSURE. THIS COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL. THE LASER MECHANISM IN THE SET CORRESPONDS TO THE STYLUS (NEEDLE) OF A RECORD PLAYER. ALTHOUGH THIS PRODUCT USES A LASER PICK UP LENS, IT IS COMPLETELY SAFE WHEN OPERATED ACCORDING TO DIRECTIONS. LASER SAFETY SAFETY TIPS SAFETY INSTRUCTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN product. The lightning flash and arrow head within the triangle is a warning sign alerting you of "dangerous voltage" inside the The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product. Do not apply oil or petroleum products or solvents to any part of this set. CAUTION: Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam. CONTROLS 1. CD lid 2. PLAY/PAUSE button 3. STOP button 4. PROGRAM button 5. ANTI S (anti skip) button 6. P MODE (Program, Repeat, Intro scan, Random play) button 7. Display screen 8. SEARCH (forward) button 9. SEARCH (backward) button 10. PHONES jack 11. OPEN latch 12. VOLUME control 13. LINE OUT jack 14. BATTERY compartment 15. DC IN 4.5V jack 16. BASS X BOOST (BassXpander) switch N 1 2 3 4 5 6 7 8 10 111213 9 16 15 14
Page 2
5 4 POWER SUPPLY Plug one end of the AC adapter into the DC 4.5V jack, then plug the other end into an AC wall outlet. ALKALINE BATTERY INSTALLATION Insert two AA batteries (not supplied) into the battery compartment on the bottom of the unit. Be sure to observe the proper polarity (the"+" and" " signs) as indicated inside the battery compartment. NOTE ON ALKALINE BATTERIES REMEMBER When replacing the alkaline batteries, use two new batteries of the same type. Do not mix a used battery with a new one or mix different types of batteries. When inserting the batteries, mistakenly inserting even one with improper polarity will cause leakage. Never charge, heat, disassemble, or throw batteries into a fire. If the symbol " " flashes in thedisplay, your batteries are weak. Replace them or use the AC adapter If the display is blank no numbers show when PLAY/PAUSE button is pushed, the batteries are dead. Replace them, or use AC adapter. (Also check if you inserted the batteries according to the + and as or cigarette lighter adapter (CDP 244CRB only). The supplied cigarette lighter adapter is designed for use with vehicles that have a 12V, negative ground electrical system. Most vehicles have this type of electrical system, but if you are unsure about the system in your vehicle, contact the vehicle dealer. Precautions on using the AC Adapter. Do not touch the AC adapter with wet hands. Doing so is dangerous, as this could result in an electrical shock. If the AC adapter is connected when the batteries are installed, the power supply automatically switches to the AC power source and the batteries are disconnected. IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local solid waste authority. CIGARETTE LIGHTER ADAPTER (FOR CDP 244CRB) Plug one end of the cigarette lighter adapter into the [DC IN 4.5V], then plug the other end into the cigarette lighter jack. Caution on the cigarette lighter adapter. Use this unit only with the supplied cigarette lighter adapter. Use with other cigarette lighter adapters could damage the unit. When the inside of the cigarette lighter jack is dirty with ashes or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter jack before use. After use, disconnect the cigarette lighter adapter plugs from both this unit and the cigarette lighter jack. The cigarette lighter adapter may cause interference with reception from the car radio or another radio inside the vehicle. If this is the case, disconnect the cigarette lighter adapter from the cigarette lighter jack, or use the radio at a distance from the cigarette lighter adapter. DC IN 4.5V CAR KIT ADAPTER (FOR CDP-244CR ONLY)
