Sansui XR Q7 Owners Manual

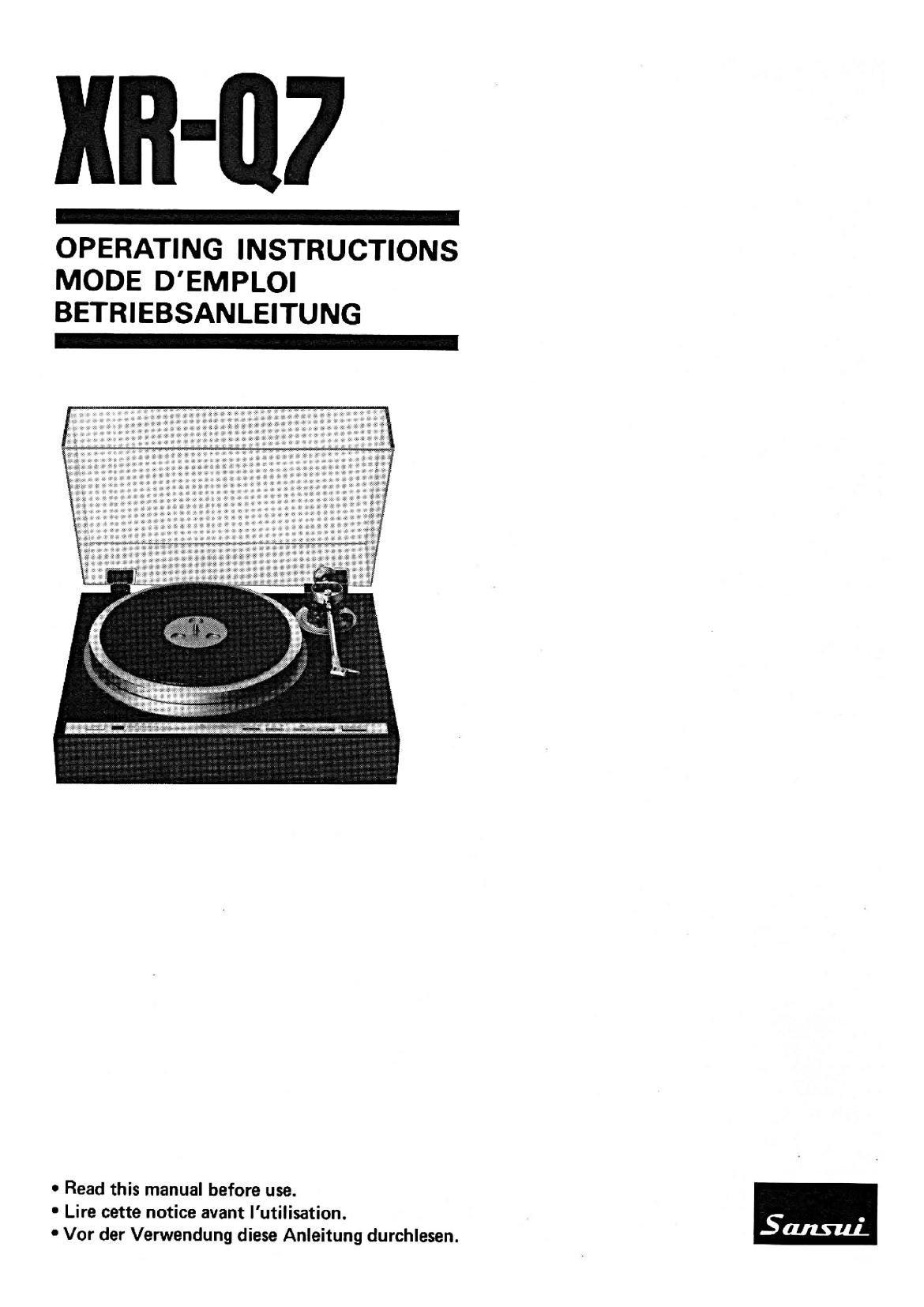

Page 1

-
_
OPERATING INSTRUCTIONS
MODE D'EMPLOI
BETRIEBSANLEITUNG

o Read this manual before use.
' Lire cette notice avant Iutilisation. 5
0 Vor der Verwendung diese Anleitung durchlesen.

Page 2

For the United Kingdom only

Important

The wires in this mains lead are coloured in accordance with the
following code;

Blue: Neutral

Brown: Live
If the colours of the wires in the mains lead of this equipment
should not correspond to the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal
which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the termi
nal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly. if you are in
any doubt, consult a qualified electrician.

For equipment purchased outside the U.K. with a "EUROPEAN"
two-pin mains plug, the plug should be removed and connections
made in accordance with the above instructions. Ensure also that
the equipment is properly adjusted to 240 volts operation. If you
are in any doubt, consult a qualified electrician. 0r our Service
Agent in the U.K.

a: MNM WNMNMM new M *"NMN M '

WARNING: To prevent fire or shock hazard, do not
expose this appliance to rain or moisture.

O The Model No. and Serial No. of your unit are shown on its back
paneL

0 Do not lose the Warranty Card that carries your unit's Model No.
and Serial No.

a SANSUI attests that this product conforms with EEC directive
76/889.

M Wyn" 9' us. M"»M"»""»M "an. an. "ear w'

ATTENTION: Pour éviter les dangers d'électrocution
ou d'incendie, ne pas exposer cet appareil a la pluie
ou a l'humidité.

a Le numero du models et la numéro do sbrie do leppareil sont inscrits
sur son panneau arriere.

0 Ne pardez pas la carte de garantie otr est indiqube lo numero du
modele at Ie numéro dans la sbrie du type do Iappareil.

0 Le societe SANSUI declare one pot appareil est confOrme aux pre-
scriptions de la directive 76/889 CCE.

par-u: "WM-WJNN'WNHN .171 new N'" in

WARNUNG: Setzen Sie dieses Gerat zur Verhiitung
von Feuer- und Stromschlaggefahr weder Regen noch
Feuchtigkeit aus.

0 Die Modell- und die Seriennummer Ihres Gerates sind auf der Ger-
ateriickseite angegeben.

o Verlieren Sie bine nicht den Garantieschein, auf dem die Modell~
und die Seriennummer dieser Einheit angegoben sind.

a SANSUI waist ans, dell dieses Produkt uemfiB der EWG~Vorschrift
76/889 gobaut in.

wuww-wwuuwwwwwum.umcmmfl

We are grateful for your choice of the Sansui XR-Q7 stereo turntable.
This precision instrument is designed to give you many years of superb
hi once for instructions on correct assembly prooedures, connection with
other equipment and correct operating procedures.

Contents

Precautions ................................. 2
Controls and parts callouts ........................ 4
Setting-up and connections ........................ 6
Operation .................................. 10
Some useful hints ............................. 12
Specifications ................................ 14
Precautlons

Turntable dismantling

Do not extract the unit's platter shaft or dismantle the'motor assembly.
NFVER try to much any part inside the turntable unit. Such action
may result in deterioration in performance or in mechanical break-
down.

Caution prior to operation

Avoid exposing the turntable (as well as your amplifier and other
audio equipment) to rain or direct sunlight.

Avoid exposing the turntable to dust, excessively warm or cold
temperatures.

Place your turntable on a solid, vibration.free surface.

Avoid placing your turntable on an inclined surface, otherwise
incorrect stylus tracking will deteriorate overall performance. See
that the surface of a record. when placed upon the platter. is strictly
horizontal.

Avoid placing the unit in a position where it will be exposed to a
strong spotlight or other light source.

When cleaning the turntable base and dust cover, be sure to use a
dry, soft cloth. Never use thinner or alcohol. Also take care not to
accidentally apply insecticides or other volatile liquids or sprays.

Power plug

9

Do not touch the power plug with wet hands, for you may be sub-
jected to electrical shock.

When unplugging the power plug, do not pull the cable; grasp the
plug and pull it out of the wall outlet.
