Sansui TU 919 Service Manual

This is the 13 pages manual for Sansui TU 919 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 13
Sansui TU 919 Service Manual

Extracted text from Sansui TU 919 Service Manual (Ocr-read)

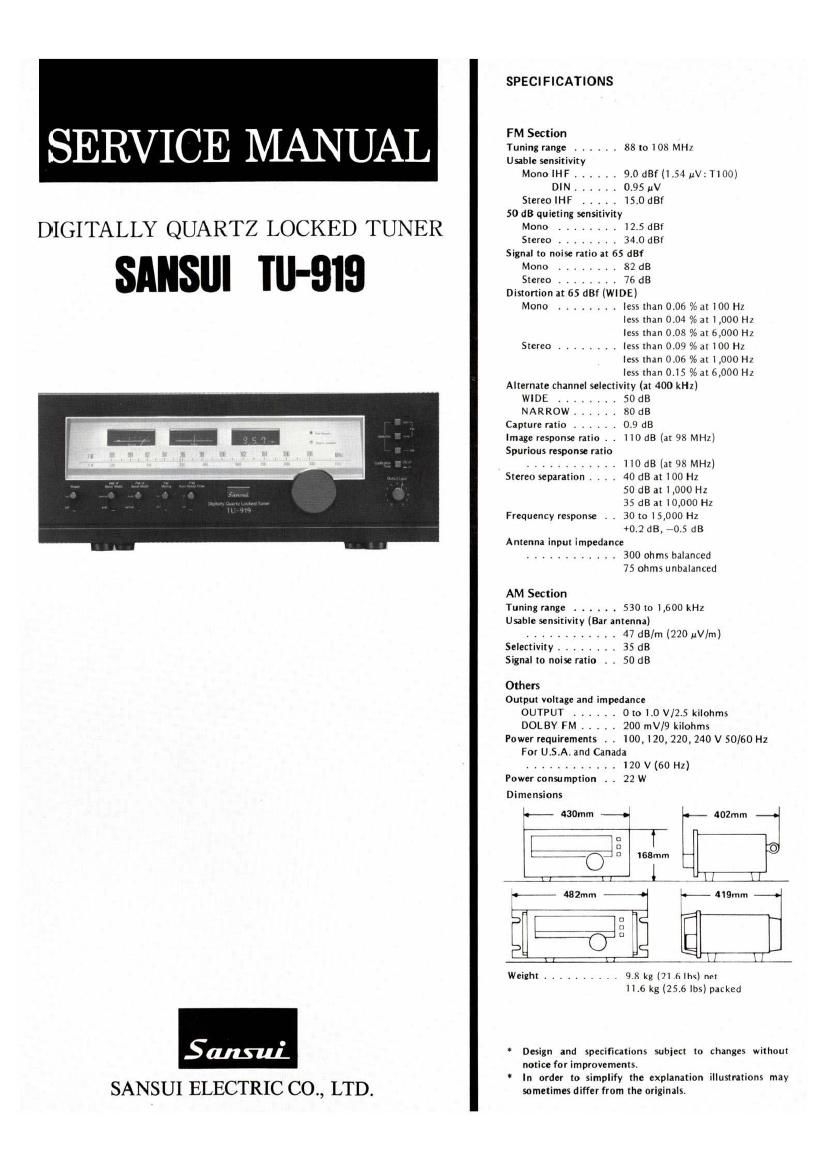

Page 1

SPECIFICATIONS

" 7 FM Section
ER I E Tuning range ...... 88 to 10K MH/
Usable sensitivity

MonolHF ...... 9.0dfifll.54 uV:IlUOl
DIN ...... 0.95 uV
Stereo IHF ..... 15.0 (131

DIGITALLY QUARTZ LOCKED TUNER 5° 033; 3;;
Signal to noise ratio at 65 um

Mono ........ 82 dB
Stereo ........ 76 dB
Distortion at 65 dBf (WIDE)

Mono ........ less than 0.05 /3 .u 100 H]
less than 0.04 % at 1,000 HI
less than 0.08 % at €1,000 HI

Stereo ........ less than 0.09 % at 100 Hz
less than 006 % at 1,000 Hz
less than 0.15 % at h,000 Hz

Alternate channel selectivity (at 400 kHz)

WIDE ........ 50 dB

NARROW. ..., 80 d8
Capture ratio ...... 0.1dE
Imageresponse ratio . . 110dB (at 98MHI)

Spurious response ratio
............ 110 dB (at 18 MHz)
Stereo separation . . . . 40 dB at 100 Hz
50 dB at 1,000 H2
35 dB at 10,000 Hz
Frequency response . . 30 to 15,000 Hz
+0.2 dB. 70.5 dB
Antenna input impedance
............ 300 ohms balanced
75 ohms unbalanted

AM Section

Tuning range ...... 530 to 1,600 kHz

Usable sensitivity (Bar antenna)
............ 47 dB/m (220 uV/m)

Selectivity ........ 35 dB

Signal to noise ratio . . 50 :18

Others

Output voltage and impedance
OUTPUT tttttt 0 to 1.0 V/2.S kilohms
DOLBY FM ..... 200 mV/9 kilohms

Power requirements t . 100,120,220,240 V 50/60 Hz
For U,S.A. and Canada
............ 120 v (50 Hz)

Power consumption . . 22W
Dimensions
L- 430mm fl 7V 401mm
L l 0
168mm
, 7 l . I 1' _LL___

LL, ,47

Weight .......... 9.5 kg (211: lbs) net
11.6 kg (25.6 lbs) packed

0
5m ' Design and specifications subject to changes wuhoul

notice for improvements.
In order to simplify the explanation illustrations may

SANSUI ELECTRIC CO., LTD. sometimes differ from the originals.
