Sansui TU 919 Owners Manual

Extracted text from Sansui TU 919 Owners Manual (Ocr-read)

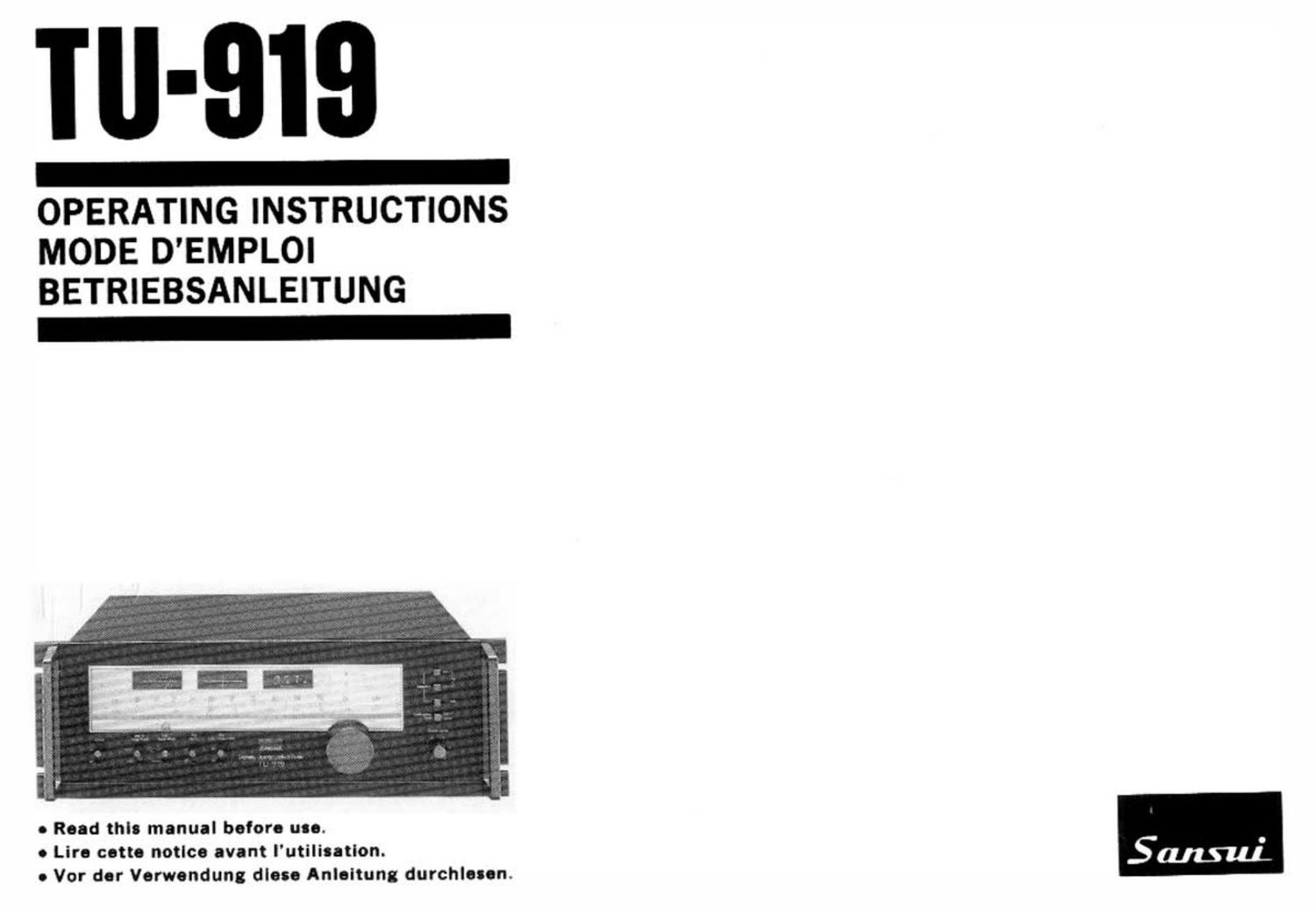

Page 1

Ill-919

OPERATING INSTRUCTIONS
MODE DEMPLOI
BETRIEBSANLEITUNG

0 Road thls manual beforo uu.
o Lire can. notlco avant I'utiliutlon.
o Vor dcr Verwondung dleso Anleitung durchloun.

Page 2

We are grateful for your choice of this fine Sansui high fidelity product.
Before you operate it. we suggest that you read this booklet once
through carefully, familiarizing yourself with the important precau-
tions, operational procedures and every one of the products many
features. it will help to ensure that you will avoid possible damage and
that the products superb performance will be yours to enjoy for many
years to come.

Table of contents
Precautions ......................... . ....... 4
Connections ................................. 8
Panel information ............................. 13
Operating procedures ........................... 18
Some useful hints ............................. 24
About rack mounting adaptors ...................... 32
Specifications ................................ 34

WARNING: To prevent fire or shock hazard,
do not expose this appliance to rain or
moisture.

e The Model No. and Serial No. of your unit are shown on its back
panel.

0 Do not lose the Warranty Card that carries your unit's Model No.
and Serial No.

Page 16

16

AM IF
Band Width

I'III'IIIW

wide

FM
Muting

oil

Calibration
Tom

FM IF
Band Width

wide

"0"

FM
Auto Noise Filter

off

on

7 AM IF BAND WIDTH Switch

8 FM IF BAND WIDTH Switch

You can select the IF bandwidth between WIDE (wide band) and

NARROW (narrow band) for your FM and AM reception.

WIDE: Select this position when the station you desire is free of
interference from neighboring station. FM and AM recep-
tion can then be a enjoyed with optimum tonal quality,
because of the wide IF band width.

NARROW: Select this position when your desired station suffers in-
terference from neighboring stations. The selectivity will
then be high and interference will be effectively dimi-
nished.

9 FM MUTING Switch

The built-in muting circuit eliminates the irritating noise heard while
you are tuning from one FM station to another. Since it also eliminates
weak signals, set the FM MUTING switch to OFF to receive faraway
stations with faint signals. Keep it at ON at all other times.

10 FM AUTO NOISE FILTER Switch
When set to ON, it automatically reduces the noise, heard when receiv-
ing faint-signal FM stations. Reception quality will then be improved.

11 CALIBRATION TONE Switch

This switch helps you set the appropriate recording level when re-
cording an FM broadcast. When set to ON. it activates the build-in
test~signal generator.
