Sansui SS 50 Brochure

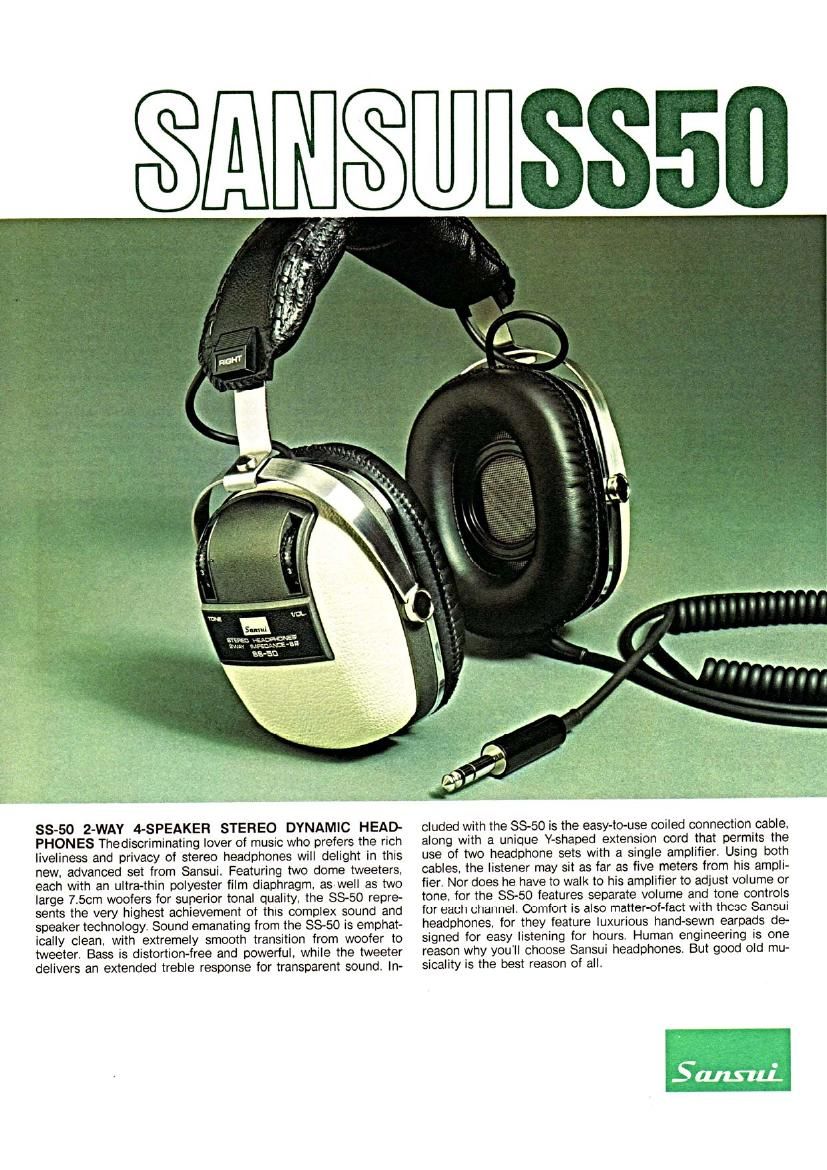

Page 1

88-50 2-WAY 4~SPEAKER STEREO DYNAMIC HEAD-
PHONES Thediscriminating lover of music who prefers the rich
Iiveliness and privacy of stereo headphones will delight in this
new. advanced set from Sansui. Featuring two dome tweeters.
each with an ultra-thin polyester film diaphragm. as well as two
large 7.50m woofers for superior tonal quality. the 88-50 repre
sents the very highest achievement of this complex sound and
speaker technology. Sound emanating from the 88-50 is emphat-
ically clean. with extremely smooth transition from woofer to
tweeter Bass is distortion-free and powerful. while the tweeter
delivers an extended treble response for transparent sound. In-

IIIIIH"

I'lg"".'

eluded with the 38-50 is the easy-to-use coiled connection cable.
along with a unique Y-shaped extension cord that permits the
use of two headphone sets with a single amplifier. Using both
cables. the listener may sit as far as five meters from his ampli-
fier. Nor does he have to walk to his amplifier to adjust volume or
tone. for the 88-50 features separate volume and tone controls
for each channel. Comfort is also matter-of-fact with these Sansui
headphones. for they feature luxurious hand-sewn earpads de-
signed for easy listening for hours. Human engineering is one
reason why you'll choose Sansui headphones. But good old mu-
sicality is the best reason of all,

'0...

Page 2

New comfort and musicality from

a 2-way 4-speaker stereo headphone set

2-WAY LSPEAKER SYSTEM Each headphone
in the 88-50 encloses a large 7.5cm woofer.
featuring a special cone noted for high bass-
radiation effucnency, and a 3.3cm tweeter. that
features a new polyester diaphragm. Both of
these speakem are carefully mounted on the
same axis. The crossover network that allocates
signals to the two speakers is the eleborate
LC type employing a special laminate core. The
result of such meticulous construction is an
extremely smooth and natural transition from
woofer to tweeter, and thus very natural sound
reproduction. Frequency response is a very
wide 20-20.000Hz.

NEWLY-DEVELOPED SPEAKERS The woofer
is able to reproduce distortion-free. powerful
bass notes. thanks to two Sansui innovations:
a new triple-corrugation surround and special
damping agent. Actually. these feature lower
the speaker's minimum resonance frequency
while extending its bass response. and thus per-
mit the reproduction of extremely deep lows.
The tweeter is equally efficient. It employs a
0.075mm thick. or very ultra-thin. polyester film
diaphragm for extended treble response. This
diaphragm works in concert with the tweeter's
tangential surround to improve its harmonic
distortion, inter-modulation distortion and tran-

Woofer with trlple-cormpntlon surround

SPECIFICATIONS

SPEAKERS
(2-way. separate dynamic woofer
8. tweeter speakers)
WOOFER 7.5cm (3") cone type
TWEBER 3.3cm (1 Xi")
dome type
IMPEDANCE 81!
FREQUENCY RESPONSE RANGE
20-20.000HZ

MAXIMUM POWER INPUT SOOthpeak)
SENSITIVITY 106GB (at ZOOHZ)
CROSSOVER NETWORK 6dB/OCI.. L-Ctype
GROSSOVER FREQUENCY 1,000Hz

CORD LENGTH r. TYPE
MAIN CORD 3m (9.8ft.) coiled
EXTENSION CORD 2m (6.5ft.) straight
(w/iacks)
WEIGHT OF HEADPHONES ONLY
8009 (28201.)

Design and specifications subject to change
without notice for improvements.

a

sient distortion. What you can expect. of course.
is greater transparency and better resolution of
all reproduced sound.

SEPARATE CLICK-STOP TONE CONTROLS
Separate tone controls for left and right head-
phones are provided to permit adjustment of
the tonal quality to the listener's personal taste
or compensate for any undesirable properties
in the program source. These tone controls
possess ideal treble attenuating characteristics
and thus eliminate such nuisances as tape hiss.
scratch noise and other disturbing high-fre-
quency noise. if it is ever present. Both con-

:rsnsa HFI.:A>-nlt=

trols are provided with click stops so that they
can be equally adjusted instantly

SEPARATIVE VOLUME CONTROLS Separate
volume controls are provided next to the tone
controls on both left and right headphones. This
means you'll save countless walking trips to

RESPONSE (dB)

your amplifier to make these adjustments. es-
pecially if you are employing the supplied ex-
tension cable. Balancing the left and right
channels may also be accomplished with these
controls.

IMPROVED SPIRAL CABLE This new spiral
cable is not curled near the headphones. So
it does not get in your way when you put the
set on.

Y-SHAPED EXTENSION CORD This twometer
long cable is supplied as standard equipment
and lets you sit a sufficient distance from your
amplifier while you listen, Its Y-shape also lets
one of your friends connect his (or her) head-
phone set to the same cable to enhance listen-
ing togetherness.

COMFORTABLE HEADBAND AND EAR
CUSHIONS The hand-sewn,foam-filled head-
band and ear cushions of the $350 easily fit
the contour of your head softly and comfortably
as its stainless steel end pieces slide in or out.
For added convenience, three click stops are
provided for adjustment.

FREQUENCY (Hz)

SANSUI ELECTRIC 00.. LTD 1+1. Z-CHOME. IZUMI,SUG|NAMl-KU.TOKYO168,JAPAN/TELEPHONE:323-1111/TELEX'232-2076 smi-
SANSUI ELECTRONICS CORPORATION 55-11 QUEENS BLVD, WOODSIDE. NEW YORKI1377.U S A FELEX: NEW YORK 422633 SEC Ul
SANSUI AUDIO EUROPE SA. DIACEM BUILDING. VESTINGSTRAAT 53-55. 2000 ANTWERP, EELGIUM/TELEX: ANTWERF 33538

Frinlad in le-n IEDOGSKAI
