Sansui SS 2 Brochure

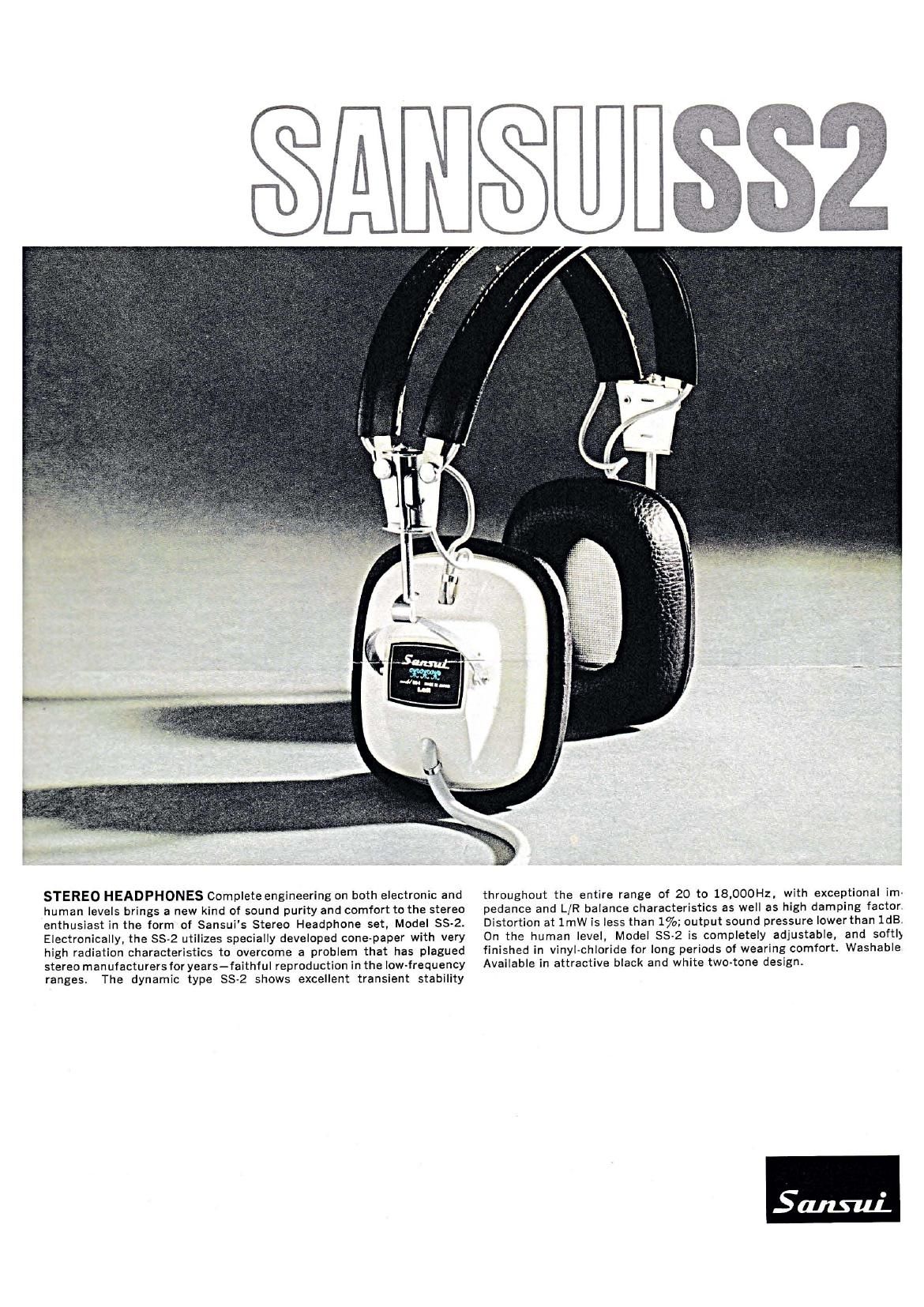

Page 1

STEREO HEADPHONES Complete engineering on both electronic and
human levels brings a new kind of sound purity and comfort to the stereo
enthusiast in the form of Sansui's Stereo Headphone set, Model SS-Z.
Electronically, the 83-2 utilizes specially developed cone-paper with very
high radiation characteristics to overcome a problem that has plagued
stereo manufacturersfor years-faithful reproduction in the low-frequency
ranges. The dynamic type SS-2 shows excellent transient stability

throughout the entire range of 20 to 18,000Hz, with exceptional im~
pedance and L/R balance characteristics as well as high damping factor
Distortion at 1mW is less than 1%; output sound pressure lowerthan ldB
On the human level, Model 88-2 is completely adjustable, and softly
finished in vinyl-chloride for long periods of wearing comfort. Washable
Available in attractive black and white two-tone design.

Page 2

OUTSTANDING BASS REPRODUCTION: The
cultivation of a very high-radiation cone-paper
enables low-frequency reproduction all the way
down to 20Hz, a figure almost beyond the re-
production capability of a 12-inch woofer. Dis-
tortion is less than 1% at 1mW input.

FLAT CHARACTERISTICS: The high-moving
coil with its excellent transient stability, and
special cone~paper with its superior vibration
characteristics (70mm in diameter) combine to
completely cover the wide range of frequencies
from 20 to 18,000 Hz. The impedance charac-
teristic is also excellent, allowing powerful
sound reproduction with a high damping factor.

SPECIFICATIONS

Type: Dynamic type
Impedance: 8 ohms
Frequency Response: 20 to 18,000 Hz
Distortion: less than 1% at 1mW input
Input Power: 1mW

Max. Rated Power Input: SOOmW
Diameter of Cone Paper: 70mm

Weight of Cone Paper: 450mg
Diameter of Voice Coil: 132mm

Length of Cord: 6 (1.8m)
Weight: \Netl: 12.6 oz. (3608)

SANSUI ELECTRIC 00., LTD. 14-1. 2~CHOME. IZUMI. SUGINAMl-KU, TOKYO 166. JAPAN/TELEPHONE: 323-1111/TELEX: 232-2076
SANSUI ELECTRONICS CORPORATION 32-17 618T STREET, WOODSIDE, NEW YORK 11377. U.S.A./TELEX: NEW YORK 422633 SEC Ul

RIGHT AND LEFT CHANNEL BALANCE:
The output sound pressure level is rated at
lower than 1dB for perfectly balanced stereo
reproduction from both Right and Left chan-

nels. Unlike listening via speaker systems,
headphone listening assures an optimum stereo
effect, since Right and Left channel sounds
never have the chance to interfere with each
other in the air.

EAR PADS DESIGNED FOR COMFORT: The
ear pads for Model 882 are made of softly
finished Vinyl-Chloride, leather-like in appear-
ance. They have been doubly finished so that
ambient heat never becomes a comfort-impair-
ing factor. They can be worn over an extended
period of time in complete comfort.

WASHABLE: The ear-pats are easily removed
for cleaning. They may be washed with soap-
suds or alcohol.

bios

circuit as illustrated. This cir

V -.e-r,,-w

LTo connect the 83- 2 to an amplifier which Is not equipped with headphone lack employa junctton

7- emleIier ,
_ CHANNEL-Loutput .1 .

FUNCTIONAL AND ATTRACTIVE: The head
band is completely adjustable for individual head
and ear positioning. The 88-2 is available in
black and white two-tone design.

CAUTION: The 88-2 is a highly-sensitive
headphone set. Its sound output is extremely
high even at an input as low as one-thousandth
of a watt. If the amplifier power is beyond the
Maximum Rated Power Input, there is a pas
sibility of damage. Therefore, in connecting
this set directly to a higher-powered amplifier.
the volume of the amplifier should always be
reduced.

eadset, speakers or hot

i . 8~16h o'-
1.».amplifier

CHANNEL-IR 7

gsmyELR > speaker . , . . , 1
cc ' ac '. ' 'f, I

Stun-u}.

SANSUI AUDIO EUROPE S.A. DIACEM BUILDING, VESTINGSTRAAT 5355, 2000 ANTWERP, BELGIUM/TELEX: ANTWERF 33538

Printed in Japan(410001Kl
