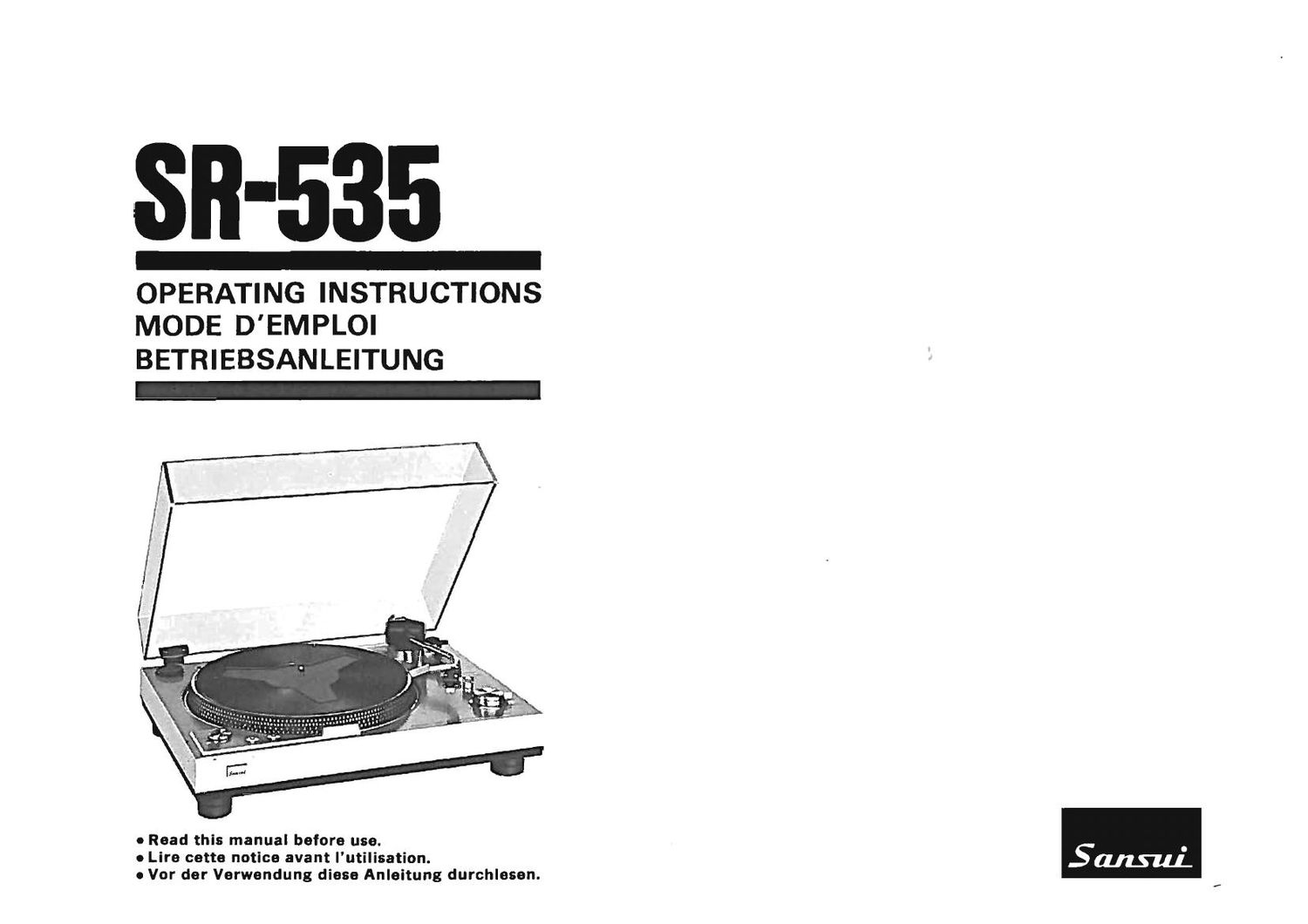

OPERATING INSTRUCTIONS
MODE D'EMPLOI

BETRIEBSANLEITUNG

. Read this manual before use.
0 Lire cetta notice avant I'utilisation.
- Vor der Verwandung diese Anleitung durchlesan.

Page 2

For the United Kingdom only

Important

The wires in this mains lead are coloured in accord-
ance with the following code:

Blue: Neutral

Brown: Live
If the colours of the wires in the mains lead of this
equipment should not correspond to the coloured
markings identifying the terminals in your plug, pro-
ceed as follows:

The wire which is coloured blue must be connected
to the terminal which is marked with the letter 'N'
or coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter 'L' or
coloured red.

Ensure that your equipment is connected correctly.
If you are in any doubt, consult a qualified electrician.

For equipment purchased outside the U.K. with a
"EUROPEAN" two-pin mains plug, the plug should
be removed and connections made in accordance with
the above instructions. Ensure also that the equipment
is properly adjusted to 240 volts operation. If you are
in any doubt, consult a qualified electrician, or our
Service Agent in the U.K.

We are grateful for your choice of the Sansui SR-535 stereo turntable.
This precision instrument is designed to give you many years of superb
hi-fi performance. We suggest that you read through this manual at least
once for instructions on correct assembly procedures, connection with
other equipment and correct operation procedures.

Contents 2
Features ................................... 4
Precautions ................................. 6
Controls and parts callouts ........................ 8
Setting-up and connections ........................ 10
Operation .................................. 20
Some useful hints ............................. 26
Specifications ................................ 32

WARNING: To prevent fire or Shock hazard,
do not expose this appliance to rain or
moisture.

0 Do not lose the Warranty Card that carries your unit's Model No.
and Serial No.

0 The Model No. and Serial No. of your unit are shown on its back
panel.

Page 6

Precautions

Turntable dismantling

Do not extract the unit's platter shaft or dismantle the motor assembly.
NEVER try to touch any part inside the turntable unit. Such action
may result in deterioration in performance or in mechanical break-
down.

In] Ill
illiii

a . . Caution prior to operation

* Avoid exposing the turntable (as well as your amplifier and other
, audio equipment) to rain or direct sunlight.
_ * Avoid exposing the turntable to dust, excessively warm or cold
I- u I I temperatures.
Place your turntable on a solid, vibration-free surface.
Avoid placing your turntable on an inclined surface, otherwise
incorrect stylus tracking will deteriorate overall performance. See

that the surface of a record, when placed upon the platter, is strictly

horizontal.
* When cleaning the turntable base and dust cover, be sure to use a
0 dry, soft cloth. Never use thinner or alcohol. Also take care not to

accidentally apply insecticides or other volatile liquids or sprays.

_ _. . A
m
-_I Power ping 7 ., .

* Do not touch the power plug with wet hands, for you may be sub-
jected to electrical shock.

* When unplugging the power plug, do not pull the cable; grasp the
plug and pull it out of the wall outlet.

Page 28

28

[SN-50]

Replacement .of styli

A diamond-tipped stylus will usually provide about 500 to 800 hours of
high fidelity record playback.
A worn stylus, however, will cause distorted or crackling sound repro-
duction. You are advised to replace your stylus as frequently as possible.
A replacement stylus is available from the nearest Authorized Sansui
Service Station or from the Sansui dealer from whom you have pur-
chased your turntable. Be sure to specify the model SN-50" Sansui
replacement stylus.

fil.uybrieation A 7 7 7 _
Your unit requires no lubrication whatsoever. Note that application of
oil to the units platter shaft or platter bearing may cause turntable

breakdown.

Power voltage

Your turntable is adjusted in our factory to operate on the power
voltage of the area where you purchased it. Therefore, should you move
to an area where the voltage is different from the factory-adjusted one,
you have to make the voltage changeover. Make the changeover refer-
ring to the attached voltage/frequency changeover sheet.

If, however, the area where you bought your turntable is one where
users are prohibited from making such changeover, changeover is not
possible. In other areas, consult with your nearest electric appliance
dealer about the specific voltage adjustor you need.

Lifter descent time _ _
Please note that when you use your unit after a long period of disuse,

or when you use it in a cold room, it may take longer time for the arm
lifter to descend to the record for the first few plays.
