Sansui SR 4050 C Owners Manual

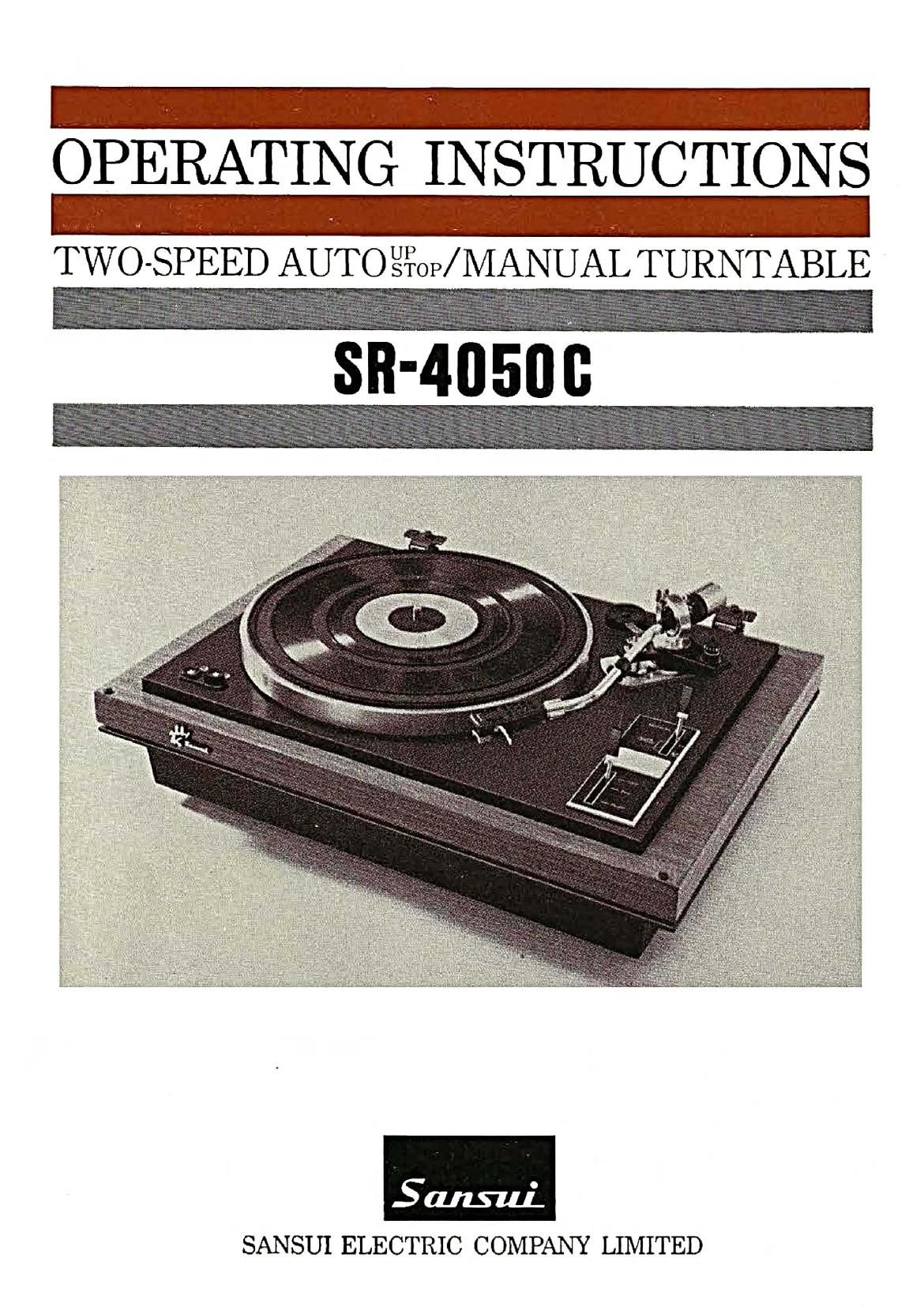

Page 1

OPERATING INSTRUCTIONS

TWO-SPEED AUT Ls1?op/ MANUAL TURNTABLZ

LU

SANSUI ELECTRIC COMPANY LIMITED

Page 2

Thank you for selecting the Sansui SR-4050C Two-Speed Auto Up Stop/
Manual Turntable. In doing so, we feel youve made an excellent choice, one
that promises you many years of rich musical enjoyment.

As an audio-only specialist, Sansui is recognized worldwide for the unsurpas-
sed quality of its products, be they turntables, stereo receivers, speaker sys-
tem or headphone sets, and takes the greatest measures to merit and maintain
this reputation.

The SR-4050C is no exception. We have not overlooked a single detail in
bringing it to you in perfect operating condition. Featuring the oil-damped
delay-motion lifter and automatic after-play arm lift and shut-off, the SR-
4050C eliminates all danger of accidental damage to the stylus or records
through the manual handling.

It is now up to you to assemble the'turntable properly and to keep it working
perfectly. This manual has been prepared to help you do just that. Please
read it carefully.

Learn how to assemble, balance and operate the turntable first. Youll then be
better prepared to enjoy the worlds highest standards of audio reproduction.

CONTENTS

METHOD OF ASSEMBLY .................................................... 3, 4
TERMS AND FUNCTION OF PARTS ...................................... 5, 6
CONNECTION/OPERATION .................................................. 7
MAINTENANCE .......................................................... 8, 9, 10

SPECIFICATIONS .............................................................. 10

Page 5

4. Adjust the stylus pressure as indicated on page
S. The correct stylus pressure is 2 grams.

5. Check to see if the cartridge is upright as
viewed from the front. If it is not, the shell can be
rotated. Turn the shell as reguired, while holding
the tonearm firmly.

i"

'I lilIlIIIllll.|l Ill

sit:

l

1E1

r91

Dust Cover
1. Position the dust cover as illustrated below:

Dust Cover

About 90

2. Fit the round flat heads of the base hinge pins
into the square groaves of the dust cover metal plates
and then slide the dust cover in the direction of the

arrow until it stops.
HOW TO FIT
9951 COVER l l

Insert pin in slot
and pull dust cover
toward y0u.

3. Slide the dust cover in the direction of the arrow
into place.

_

Hinges

Slide dust cover in
direction of arrow
_unti|l it is locked
Into place
