Sansui SR 4040 Brochure

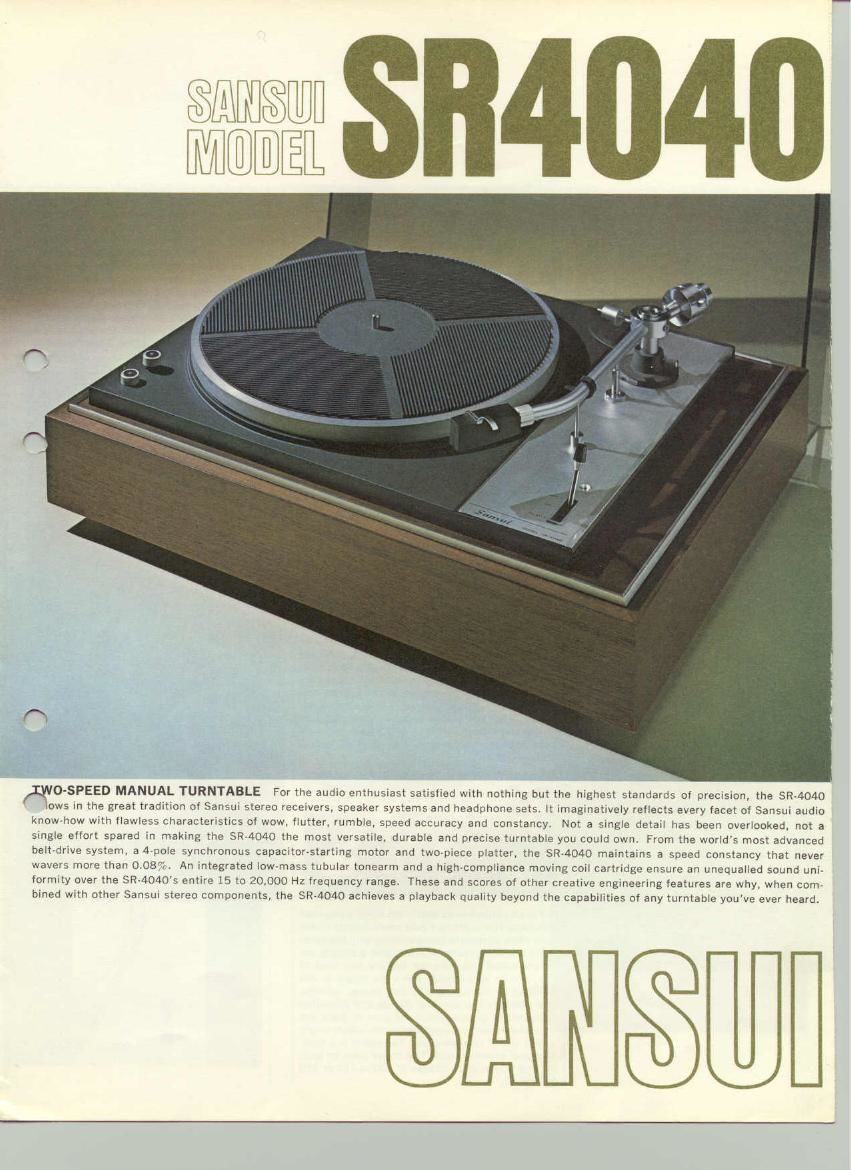

Page 1

mwsn404o
WEE

(WC-SPEED MANUAL TURNTABLE For the audio enthusiast satisfied with nothing but the highest standards of precision, the 571-4040
ows in the great tradition of Sansul stereo receivers, speaker systems and headphone sets. It imaginatively reflects every facet of Sansui audio
know~how with llawless characteristics of wow. flutter, rumble, speed accuracy and constancy. Not a single detail has been overlooked. not a
single ellort soared in making the SR-404O the most versatile, durable and precise turntable you could own. From the worlds most advanced
belt-drive system. a 4»pole synchronous capaatorstarting motor and two-piece platter. the SR-404O maintains a speed constancy that never
wavers more than 0.08"}. An Integrated low-mass tubular tonearm and a high-compliance moving coil cartridge ensure an unequalled sound unit
formity over the SR-4040's entire 15 to 20,000 Hz treouency range These and scores of other creative engineering features are why, when com-
bined with other Sansul stereo components, the SR~4040 achieves a playback quality beyond the capabilities of any turntable youve ever heard.

Page 2

QlliILt Uth Drivr- Syéy\\.ln Model Sir-{74040 in~
:orporates Sansui's exclusive direct belt~drive
system for speed constancy and accuracy with»
Jutrumble orwow over longer oeriodsofcontind
JUS use. Basically simple, this system features a
:olyurerhane endless belt that loops around the
urntable's inner platter and the motor pulley.
Unlike most conventional belt~drive systems,
rhis belt is eaSily removed for realacement. To
wrotect the beltfrom wear and deformation the
turntable is crowded With an exclusive belt pro-
tection mechanism which automatically locks
the beit in place whenever the power Sivitch is

Cgintt't 5(1'rjtlit'dlittliiwrillz, ModelSRflOiO's

l Center spindle is the longestol any turntable in
its class 4 . The shaft bearing is lined With
expensive gun metal, Together, they prowde
the kind of precision required to keep the turn»
table from deflecting, even micrometrically
from a perfectly horizontal position. They also
assure that lhe heavy turntable applies only
a minimum of pressure on the spindle's pivot
bearing, a device made of strongerthan-metal
Teflon for longer life. This bearing ls housed in
a special oil cup that screws on from the bottom
of the spindle shaft making the need tor oilings
few and far between.

turned ofl The belt itself. finished by a preci»
sion glitlei, is uniform in thickness down to the
micron order and has excellent mechanical and
JhySlCal properties, aging and abrasion YESISl~
ance, and is not affected by variations in tem-
Jerature.

,W":

A unique 2-niece turntable. consist-
line. of a 12 inch in diameter outer rilatter and an
8-inch in diameter inner platter. assure precise
and constant speed lhrough optimum llywheel
action. The outer is made of cast zinc base alloy
and weighs 5. pounds the inner platter ot cast
alumirnurn alloy. It weighs slightiy over one
pound. Both are driven by a belt that loops
around the inner platter and are covered by an
antistatic rubber mat that fully supports the re-
cord without charging it With dust-attracting
static electricity.

,1 ti

. iv .t M .. iii . SRAO-Goispowered
byacapacitor-startinted-polesynchronousmntor
that show complete compatibility With the :urn-
table's drive system. It maintains a steady. ac-
curate speed and does not require any kind of
micrometic adiustnient since its speed is not
affected by fluctuations in load and or voltage.
The motor is housed ll\ 3 double Vibrationfree
suspensmn System which ISOiaZFBS it from the
inotorboard and Cuts out Vibrations which might
affect sound reprodudtion. The result is a high-
er signalto-nome ratio. The motor runs. on both
50 and 60 Hz, and voltages of 100 to 120m 220
to 240 AC.
