Sansui SR 333 Brochure

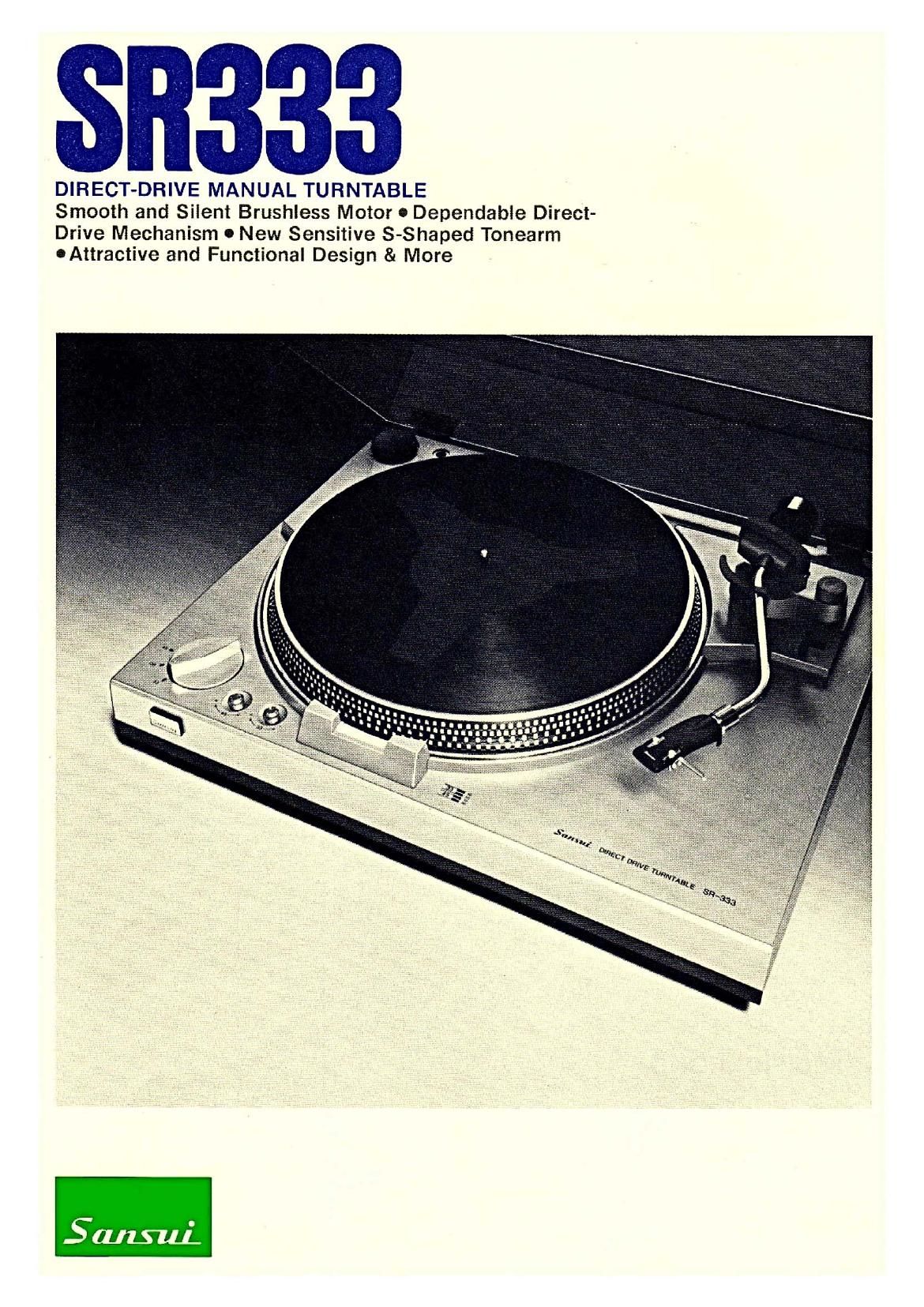

Page 1

DIRECT-DRIVE MANUAL TURNTABLE

Smooth and Silent Brushless Motor 0 Dependable Direct-
Drive Mechanism 0 New Sensitive S-Shaped Tonearm
OAttractive and Functional Design 8: More

1/", ,1
$0ququ

Page 2

Q

-
\fi/

tQ

\u/

11:: Sun-l um mi.- mun-ax 3mm

__

A dependable; high-performance
manual turntable reasonably priced?
That's Sansui's SR-333. a direct drive
design that's perfect in every way.
especially for audiophiles movmg into
the total world of component sound.
Scientific measurements. even its tine
performance specifications. can't really
describe the key criterion of this unit.
its superb tonal quality. And it also has
many of the most important features
of the more expensive Sansui turntable
line.

20-Pole, 30-Slot Brushless Direct-
Drive Motor

The platter is driven directly by a
20-pole 30-slot brushless motor.
The motors speed is regulated

SPECIFICATIONS

TYPE Two-speed. direct-drive
manual turntable
MOTOR 20»po|e. 30-stot DC

brushless
Direct spindle drive.
electronically servo
controlled

DRIVE SYSTEM

PLATTER 318mm (12%"1.
aluminum alloydie-cast.
weighing 1 4kg (3lbs.i

PERFORMANCE

WOW at FLUTTER less than 0.035%
SIGNAL TO NOISE RATIO
better than BOOB
IlEC»Bt

correctly at all times. Besides an

excellent start-up torque. the motor
teatures many other superior perform-
ance specifications including low wow
and llutter of 0.035%. Also included
are fine pitch controls.

The platter is large Mime-inches
diameter) and heavy i8 poundsl.
die-cast 01 aluminum and provided
with four stroboscopic stripe patterns
'on the rim. Superior inertia character-
istics keep the platter revolution silky
smooth.

Long-life Parts for Durability

The revolving and moving parts of the
SR-333 are designed for supreme long
life. Sansui has used a new. super-
hardened stainless steel spindle and

RUMBLE better than 70dB
(DIN-B)

FINE SPEED ADJUSTMENT
13.5%

TONEARM Staticallybalanced
S-shaped resonance-
tree lonearm with two
point pivot support

LENGTH 220mm (8'%a|
OVERHANG 17.5mm (%"l

OFFSET ANGLE 24 5°

MINIMUM TRACKING FORCE SETTING
0.89

ACCEPTABLE CARTRIDGE WEIGHT
4-119

a new bearing made of a special nylon
compound containing molybdenum
disulfide. Additionally. the surtace ot
the bearing is tinished with a special
mirror finish" technique that minimizes
wear.

New Accurate-Tracking S-Shaped
Tonearm

This tonearm improves on conventional
models. The fulcrum point of the
tonearm now has increased area and
weight. and thus it is more securely
positioned. This means it will resist
any harmful vibration in the front~back
or left-right directions. and respond
positively only to the undulations in the
record groove. The result is increased
stability.

Other advantages include a tubular
tonearm titled with a special acoustic
absorbent. and the tonearm which is
solidly mounted on a large. thick

zinc die-cast base to prevent re-
sonance. Also. the connector contacts
of the universal headshell are gold-
plated to prevent deterioration.

All of this careful attention to detail
contributes overall to the enhanced
tonal quality of the SR'333 that is
obvious when you ptay a record

on it.

Sturdy. Howling-Resistant Cabinet
The elegant. ruggedly designed cabinet
includes numerous anti-howling
measures specially developed by
Sansui tor this turntable. The particle-
board base lixed inside the cabinet
increases the internal loss ol vibration
energy. There are also newly«developed
corn plex-structure insulators that
absorb any external vibration. The
cabinet also comes complete with a
removable. transparent dust cover with
tree-stop hinges.

COMPENSATION Bias
CUEING Separate lever at base
POWER CONSUMPTION
less than 5 watts

DIMENSIONS 460mm (18%"5W
153mm l6'/ie")H
373mm ll4'%a"ID

WEIGHT 78kg l172lbsl

oNo cartridge is provided on units sold in the U S A..
Canada or UK

ODestgn and spectticatlons subtecl to change Without
notice lor improvements.
