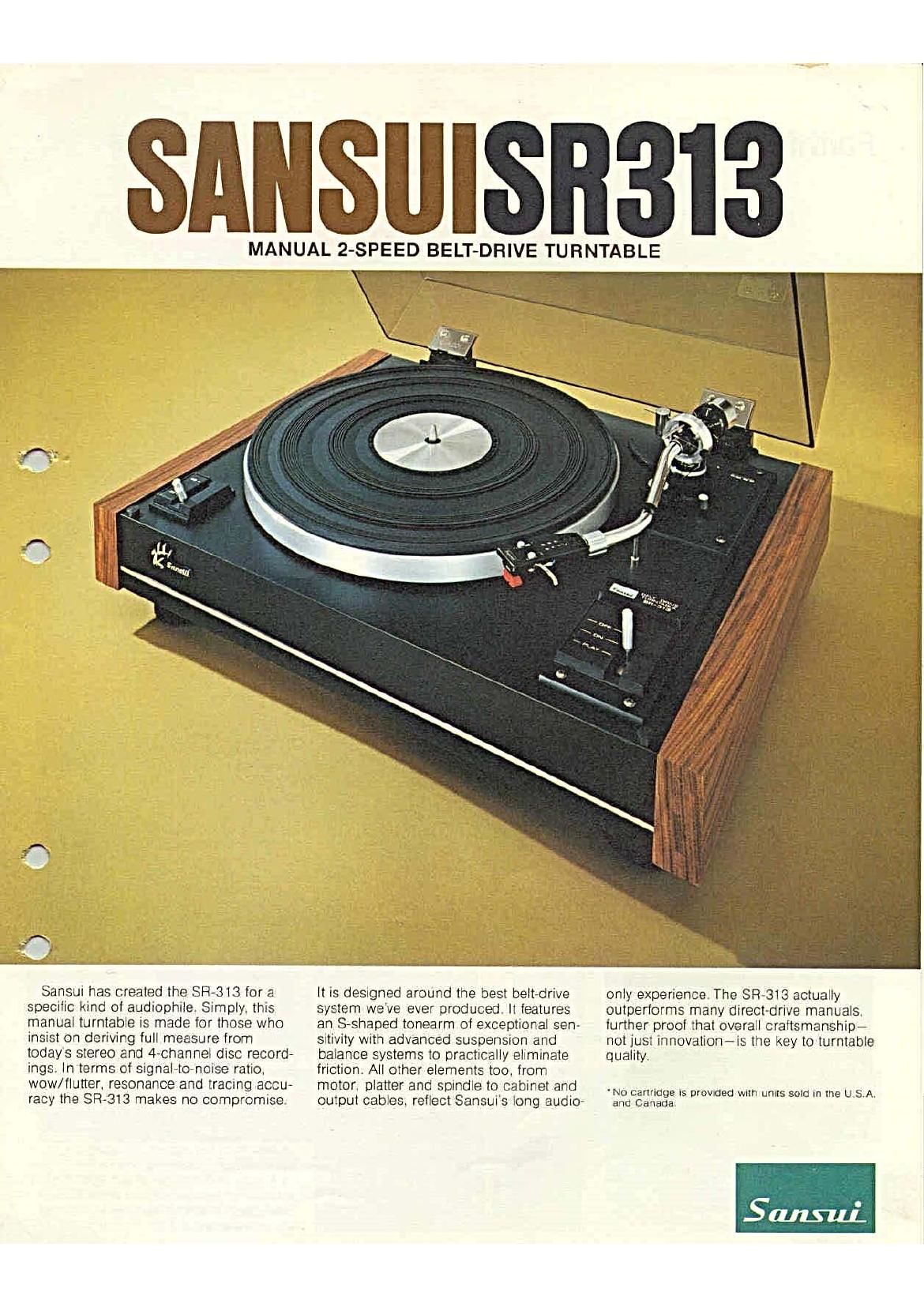

SANSUISH3I3

w-v-w- _. _,,

Sansui has created the SR-313 for a
specific kind of audiophile. Simply. this
manual turntable is made for those who
insist on deriving full measure from
todays stereo and 4-channel disc record
ings. In terms of signal-to-noise ratio.
wow/ flutter. resonance and tracing accu~
racy the SR-313 makes no compromise

MANUAL 2-SPEED BELT-DRIVE TURNTABLE

. . , . v

It is designed around the best beltdrive
system we've ever produced. It features
an S-shaped tonearm of exceptional sen-
sitivity with advanced suspension and
balance systems to practically eliminate
friction. All other elements too, from
motor. platter and spindle to cabinet and
output cables. retlect Sansui's long audio-

only experience. The SR-313 actually
outperforms many direct-drive manuals.
further proof that overall craftsmanship-
not just innovation- is the key to turntable
quality.

' No cartridge is Drovnded with units sold in the U SA.
and Canada

Page 2

Faithful record reproduction & top-class features

SILENT BELT-DRIVE SYSTEM

4-Pole Synchronous Motor

Because the 4-pole synchronous outer-
rotor motor of the SIR-313 is not affected by
fluctuations in AC line voltage or platter load.
you never need make speed adjustments.
Precision parts are used throughout to pro-
vide long years of reliable service.

MOTOR CROSS SECTION

' Molar Shell

3 Frictiormoe Bearing-

Hystsresls Magnet
Special Lubricant
Stator Cora

Stator Winding

Outer Rotor

Precision Center Spindle

The center spindle is precision-machined
and encased in a rugged housing using self-
lubricating metal and tellon bearings for a
minimum of wow and flutter. improved sig-
nal-to-noise ratio and prolonged life.

Polyurethane Drive Belt

A superfine polyurethane belt of high
dimensional accuracy, uniform thickness
(05mm) and excellent aging characteristics
is responsible for accurate platter rotation
with minimum wow/flutter. It is precision-
finished and unaffected by long use or
changes in atmosphere.

SENSITIVE TONEARM

S-Shaped Tonearm

Sansui has selected a special S-shaped
tonearm of high sensitivity. It is statically
balanced, damped for extremely low reso
nance and suitable for tracing even the most
complex undulations of the record groove
perfectly.

Unique Knife-Edge Suspension

The sensitivity of the tonearm in the
SR-313 is five times that of conventional
tonearms. This is due largely to the low-
triction support system employed-a knife
edge support for the vertical plane with
precision-polished miniature bearings used
for horizontal motion of the tonearm.

ABM sup- . RT chose secnou
(treat view)

Lower Thrust Boating

Reduced Tracing Distortion

A lateral balancer for correct left/right
balance. a speciallyconstructed skating-
force canceler to prolong record and stylus
wear. and the friction-free characteristics of
the support system contribute to the reduc-
tion of tracing distortion.

Simple Manual Operation

No mechanical linkages inhibit error-free
manual operation. The risk of damage to
the tonearm. stylus and your records is
minimized by using the oildamped cu
lever to lower the tonearm gently to the part
of the record you wish to play,

RESONANCE-FREE CABINET

Solid All-Wood Construction

The handsome cabinet of the SR-313 is
free of acoustic feedback ("howling") since
it uses highdensity 15mm thick laminate
of selected wood fiber and minimizes the
hollow or "dead" spaces in interior cavity.
It is beautifully finished in natural Andes
Rosewood.

Effective Insulation

Further reducing the chance of cabinet-
related distortion is the advanced effective-
suspension/insulation system Large hemi-
spherical insulators and thick rubber platter
mat contribute to reduce the resonance
which could otherwise be caused by internal
or external vibration, The result is unmud
always clean record reproduction.

TURNTABLE FOOT CROSS SECTION

Natural Rubber
Suppert,

Dust Cover and Low-Capacitance Cables

A lreestop dust cover of smoked plastic
is provided. designed to remain in place
when lifted. Also included is a lowcapaci-
tance (40pF/m) output cable so that all
signals from any record. including the ultra-
sonic carrier frequencies used in some types
of 4-channel discs. can be conveyed to your
amplifier or receiver without measurable
attenuation. A 45 rpm Adaptor is included
for convenience.

Page 4

HIGH-PERFORMANCE

IM CARTRIDGE

Adopting the induced magnet design for
reducing the mass of its moving parts. the
magnetic circuit of the 80-38 cartridge in

the SFt-313 is tree Irom saturation and hys-
terisis distortion. You hear nothing but the
clean. clear sounds of all recorded informa-
tion as they Shauld sound. (No cartridge is
provided with units sold in the USA. and
Canada.)

FREQUENCY RESPONSE (SC-38)

RESPONSE (as)
3

\

resonancv (Hz:
SPECIFICATIONS
TYPE Twospeed. beltdriven FREQUENCY RESPONSE POWER CONSUMPTION
SPEEDS 33%, 45rpm 20-20.000Hz i3dB towatts lrated)
PLATTER Aluminum alloy die cast CHANNEL SEPARATION DIMENSIONS
diameter 300mm (12") more than 17dB at LOOOHz 464mm (18%") W
MOTOR Four-pole synchronous OUTPUT BALANCE 380mm 1 15") D
WOW & FLUTI'ER wrthln 2.0dB at 1.000Hz t85mm rm") H
Less than 0.06% (WERMS) STYLUS COMPLIANCE WEIGHT 9.7 kg {2174 lbs) Net
SIGNAL TO NOISE RATIO 6X10 cm/dyne (at 100Hz Dynamic) 1145 kg (25,4Ibs) Packed
Better than 50dB 25X 101cm/dyne tat 1.000Hz Static) ACCESSORY MECHANISMS

TONEARM Statically-balanced S~shaped tubular
tonearm With anti-skating device.
direct readout stylus pressure dial.
4-contact plug-in head. lateral balancer

TONEARM LENGTH
220mm 18%.") pivot to stylus tip
OVERHANG
17 5mm (An"
SUITABLE CARTRIDGE WEIGHT
4-1lgrams

CARTRIDGE

(For the SFI-3l3 sold outside USA
and Canada only)
$038 (Induced magnet type)

SANSUI ELECTRIC CO LTD. 14<1.2~CHOME. IZUMI, SUGINAMl-KU, TOKYO 165. JAPAN/TELEPHONE 323411 T/TELEX 2322076
SANSUI ELECTRONICS CORPORATION 55-11 QUEENS BLVD WOODSIDE. NEW YORK 11377. USA ITELEX: NEW YORK 422633 SEC UI
SANSUI AUDIO EUROPE 8 A DIACEM BUILDING. VESTINGSTRAAT 5365 2000 ANTWERPI BELGIUM/TELEX: ANTWERP 33536

OUTPUT VOLTAGE
3.0mV per channel
lat 1.000Hz 50mm/sec. Lateral)
LOAD IMPEDANCE
47km
TRACKING FORCE
1.5-2.0grams
STYLUS 0.5m". diamond spherical (SN-38)
POWER REQUIREMENTS
120/240V
(Usable th~130/220~250V)
50/60Hz
120V (Usable 110~130Vl.
60Hz (For USA. and Canada only)

lnsrdelorce canceler
Direct- reading stylus pressure scale
4-contact plug-in head a

ACCESSORIES
45rpm record spindle adaptor.
removable dust cover With automatic
hinges (and motor pully lor SOHz or
GUI-I2)

Fk
