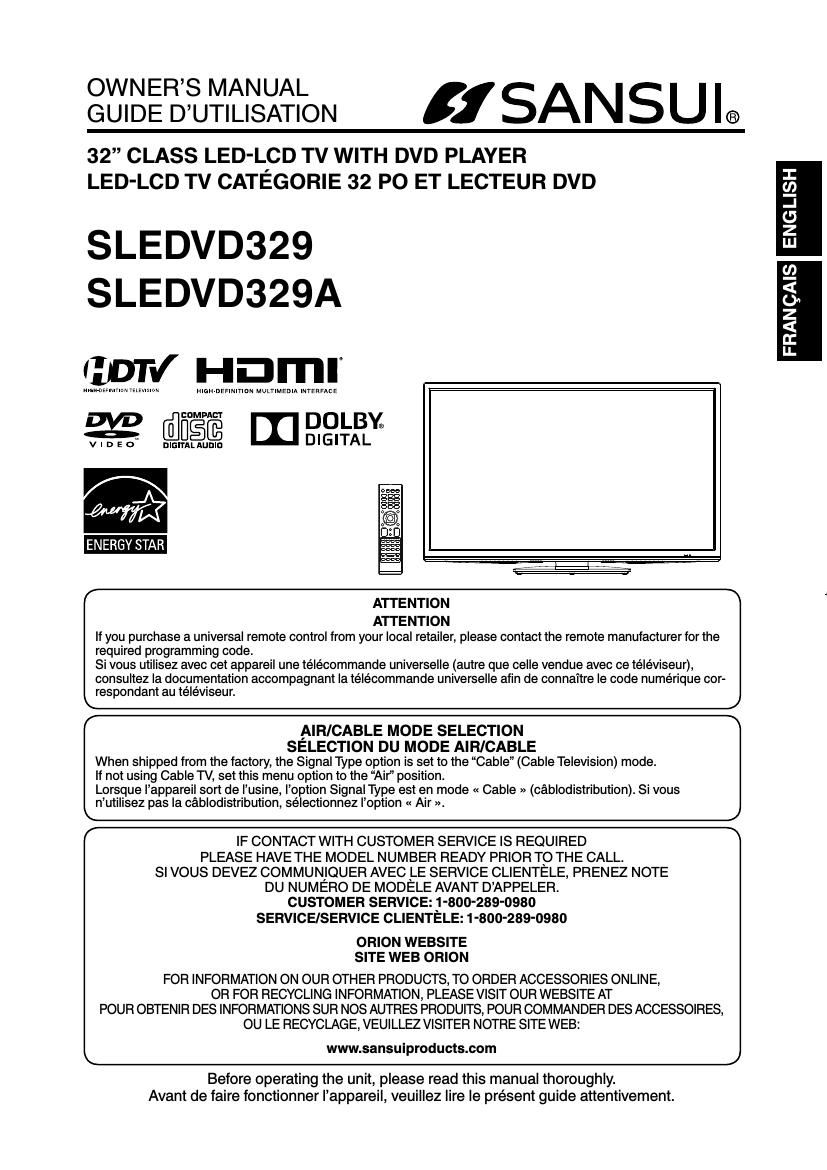

Sansui SLE DVD329 Owners Manual
This is the 43 pages manual for Sansui SLE DVD329 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui SLE DVD329 Owners Manual (Ocr-read)
Page 1
EN2 CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO THE BEAM. Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES. CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the users authority to operate this equipment. ENGLISH CLASS 1 LASER PRODUCT Record the model number and serial number. Serial number Model number
Page 2
3EN 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock. 18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit. 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. 20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition. 22) Keep your fingers clear of the disc slot as it is closing. It may cause injury. ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ANTENNA LEAD IN WIRE GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC NATIONAL ELECTRICAL CODE S2898A EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE IMPORTANT SAFETY INSTRUCTIONS
Page 5
EN6 How to attach the stand NOTE: - Unplug the AC cord. - Before beginning this process, assure that the TV is laid on a clean, safe, and cushioned surface to avoid any damage to the unit. - Do not touch or press the TV-screen, glass might break under pressure. Place the TV on its front onto a table. Align the stands bottom-plate (supplied) as seen here. It will t in only one direction. Hold the unit and attach the stand slowly, as shown in Figure 1. Finally secure the bottom-plate with 3 screws (supplied) (4x16mm(5/32x5/8 inches)) as indicated by the arrows in Figure 2. Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support your unit correctly, and could result in damage or injury from tip-over. - How to remove the stand When you transport this product, remove the stand and pack at against the back of the unit in the carton. To remove the stand, perform these steps in reverse order. For wall mounting, the base must be removed. To disconnect the base/stand remove the 3 screws from the back (see page 5). Figure 1Figure 2 LCD PANEL SIDE
Page 20
21EN Labeling channels Channel label appear with the channel number display each time you turn on the TV, select a channel, or press DISPLAY. You can choose any 7 characters to identify a channel. To create channel labels 1 Select Channel Channel Number. 2 Press or to select a channel you want to label, then press to select Channel Label. Then press or ENTER. Air/Cable Picture Sound Time Setup LockChannel Auto ScanCable 23 CH-2 Channel List Show/Hide Channel Number Channel Label 3 Press or repeatedly until the character you want appears in the first space. Picture Sound Time Setup LockChannel CH 3 If the character which you desire appears, press . You can also change the position which input character by pressing or . Repeat this step to enter the rest of the characters. 4 Repeat steps 1-3 for other channel. You can assign a label to each channel. 5 When you finish inputting the label name, press EXIT to return to the normal screen. NOTE: The channel labels will be reset after Auto Scan on page 20. - Setting the Lock An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to TV and MPAA if this data is transmitted. You may set this restriction separately. To use the Lock function, you must register a password. To register a password 1 Select Lock, then press . 2 Press 0000 using Number buttons(09). (This is default password.) Enter Password Picture Sound Time SetupLockChannel appears instead of the number. NOTE: If you forget the password, contact Customer Service at 1-800-289-0980 for assistance. Your original remote control will be required. To avoid forgetting the password, write it down and keep in a safe place. How to enter the Lock menu 1 Select Lock menu, then press . 2 Use Number buttons (09) to enter your password. To Lock connected devices 1 In the Lock menu, press or to set System Lock to On. 2 Press or to select Input Block, then press or ENTER. TV Picture Sound Time SetupLockChannel AV Component HDMI1 HDMI2 PC MediaUnBlock UnBlock UnBlock UnBlock UnBlock UnBlock UnBlock 3 Press or to select which device will be blocked, then press or to select Block. NOTE: Blocked device will appear in Source Select window. Enter your password before watching. If you want to use such a device again, you should setting UnBlock in step 3. - - -
Page 33
EN34 Parental Control Some discs are specified as not suitable for children. Such discs can be limited not to playback with the unit. How to into the Parental Lock menu 1 Press SETUP in stop mode. HOME MENU will appear. 2 Press /// to select Initial Settings, then press ENTER. Audio Settings Video Adjust Disc Navigator Play Mode Initial Settings HOME MENU DVD 3 Press / to select Options, then press or ENTER . Then press or ENTER to enter the Parental Lock menu. Set Password 1 Press or to select Password, then press ENTER. Parental Lock Digital Audio Out Video Output Language Display Options Initial Settings Password Level Change Country Code 2 Press Number buttons (0–9) to input the password, then press ENTER. Digital Audio Out Video Output Language Display Options Initial Settings Parental Lock: Register Code Number Change Password 1 Press or to select Password Change, then press ENTER. Parental Lock Digital Audio Out Video Ou put Language Display Op ions Ini ial Set ings Password Change Level Change Coun ry Code 2 Press Number buttons (0–9) to input the current password, then press ENTER. Digital Audio Out Video Ou put Language Display Op ions Ini ial Set ings Parental Lock: Password Change Password New Password 3 Press Number buttons (0–9) to input the new password. Press ENTER. Now your new password has been set. Be sure to remember this number! Parental Lock: Password Change Password New Password Digital Audio Out Video Ou put Language Display Op ions Ini ial Set ings Level Change 1 Press or to select Level Change, then press ENTER. Par ntal Lock Digital Audio Out Video Ou put Language Display Op ions Ini ial Set ings Password Change Level Change Coun ry Code 2 Press Number buttons (0–9) to input the current password, then press ENTER. Digital Audio Out Video Ou put Language Display Op ions 1 2 3 4 5 6 7 8 Off Ini ial Set ings Par ntal Lock: Level Change Password 3 Press or to select from the level 1 to level 8. The limitation will be more severe as the level number is lower. Then press ENTER. Digital Audio Out Video Ou put Language Display Op ions 1 2 3 4 6 7 8 Off Ini ial Set ings Par ntal Lock: Level Change Password 5 Level 1: DVD software for adults cannot be played back. Level 8: Virtually all DVD software can be played back. Level Off: The parental control setting does not function. Country Code 1 Press or to select Country Code, then press ENTER. Par ntal Lock Digital Audio Out Video Ou put Language Display Op ions Ini ial Set ings Password Change Level Change Coun ry Code 2 Press Number buttons (0–9) to input the current password, then press ENTER. Digital Audio Out Video Output Language Display Options Initial Settings Parental Lock: Change Country Code Password Country Code List Code us 2 119 3 Press or to select the input mode from Country Code List or Code. Digital Audio Out Video Output Language Display Options Initial Settings Parental Lock: Change Country Code Password Country Code List Code 2 119 us When you selected Country Code List: Press or to select Country Code, then press ENTER. When you selected Code: Press then use the Number buttons (09) to enter the 4-digit Country Code, then press ENTER. (see Country/Area Code List on page 35) - - NOTE: Depending on the discs, the unit cannot limit playback. Some discs may not be encoded with specific rating level information though its disc jacket says adult. For those discs, the age restriction will not work. If you input a wrong number, press , then input correct number. - - -
