Sansui SE 300 Service Manual

Page 1

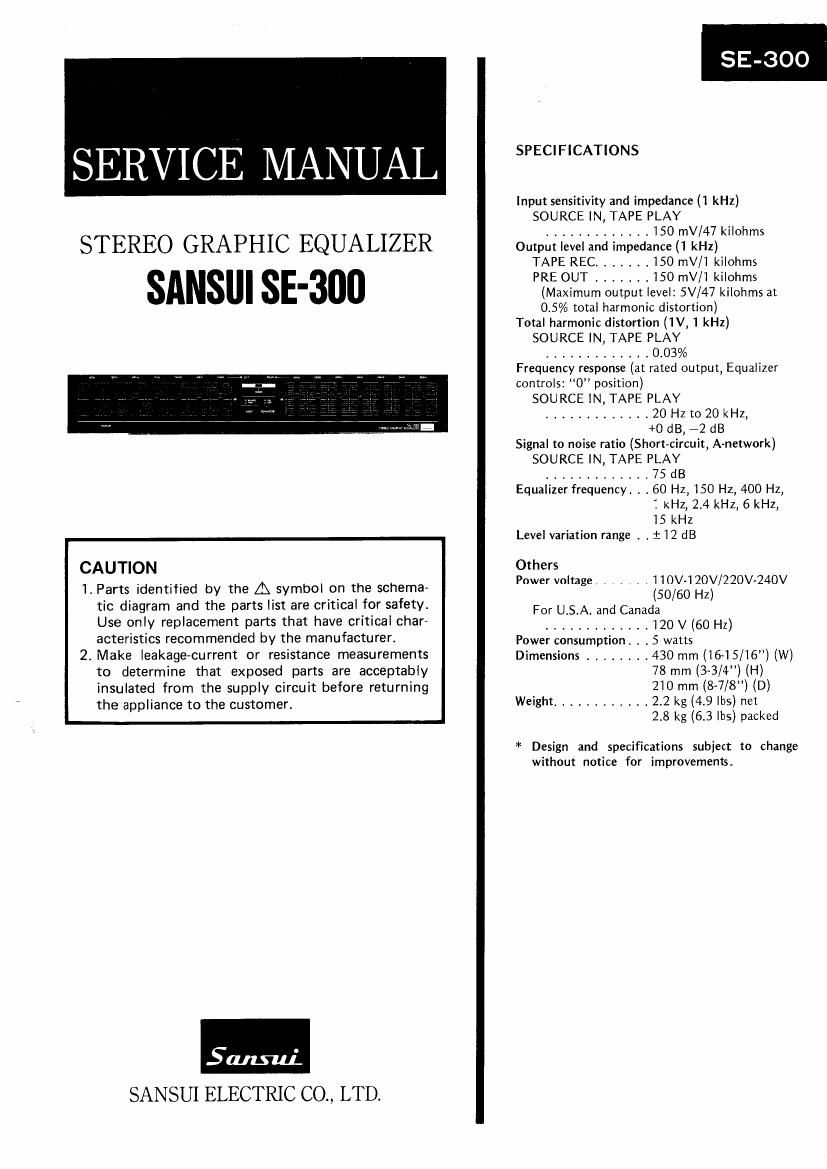

SERVICE MANUAL

STEREO GRAPHIC EQUALIZER

SANSIJI SE-300

CAUTION

1. Parts identified by the A symbol on the schema-
tic diagram and the parts list are critical for safety.
Use only replacement parts that have critical char-
acteristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably
insulated from the supply circuit before returning
the appliance to the customer.

Sans-u}.

SANSUI ELECTRIC CO., LTD.

SE-SOO

SPECIFICATIONS

Input sensitivity and impedance (1 kHz)
SOURCE IN, TAPE PLAY
............. 150 mV/47 kilohms
Output level and impedance (1 kHz)
TAPE REC ....... 150 mV/1 kilohms
PRE OUT ....... 150 mV/1 kilohms
(Maximum output level: 5V/47 kilohms at
0.5% total harmonic distortion)
Total harmonic distortion (1V, 1 kHz)
SOURCE IN, TAPE PLAY
............. 0.03%
Frequency response (at rated output, Equalizer
controls: 0" position)
SOURCE lN, TAPE PLAY
............. 20 Hz to 20 kHz,
+0 dB, -2 dB
Signal to noise ratio (Short-circuit, A-network)
SOURCE IN, TAPE PLAY
............. 75 dB
Equalizer frequency, , .60 Hz, 150 Hz, 400 Hz,
1 KHz, 2.4 kHz, 6 kHz,
15 kHz
Level variation range . . t 12 dB

Others

Power voltage ....... 1 1OV-12OV/22OV-24OV
(50/60 Hz)

For USA and Canada
............. 120 V (60 HZ)

Power consumption. . .5 watts

Dimensions ........ 430 mm (16-15/16") (W)
78 mm (3-3/4") (H)
210 mm (8-7/8) (D)

Weight ............ 2.2 kg (4.9 lbs) net
2.8 kg (6.3 lbs) packed

* Design and specifications subject to change
without notice for improvements.

Page 2

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the
parts list and the schematic diagram mean followings respec-
tively.

UL ........... Manufactured for USA. market.
(Underwriters Laboratories approved model.)

CSA .......... Manufactured for Canadian market.

SA. . . . . . . . . . . Manufactured for South African market.

BS, UK ....... Manufactured for United Kingdom market.

EU. . . . . . . . . . . Manufactured for European market.

AS ........... Manufactured for Australian market.

XX ...... ...Standard Version.

NON MARK. . .Common Parts.

. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not
indicated at the ends of the board names. However, the indi-
vidual parts on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from parts
lists in this service manual, refer to the Common Parts List for
capacitors & resistors, which was issued on February 1983.

. Abbreviations in this service manual are as follows.

- Abbreviations List

C.R. : Carbon Resistor E,B.L. : Low Leak Bi-Polar

S.R. : Solid Resistor Electrolytic Capacitor

CeR. : Cement Resistor Ta .C. I Tantalum Capacitor

M.R. : Metal Film Resistor F.C. : Film Capacitor

FR. : Fusing Resistor M.P. : Metalized Paper Capacitor

N.I.R. : Non-lnflammable Resistor RC, : Polystyrene Capacitor

A.R. : Array Resistor GtC. : Gimmic Capacitor

C.C. : Ceramic Capacitor A.C. : Array Capacitor

C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temoerature Compensation S.V.R, : Semi Variable Resistor

EC. : Electrolytic Capacitor SW. 2 Switch

E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor

EB. : Bi-Polar Electrolytic

Capacitor
