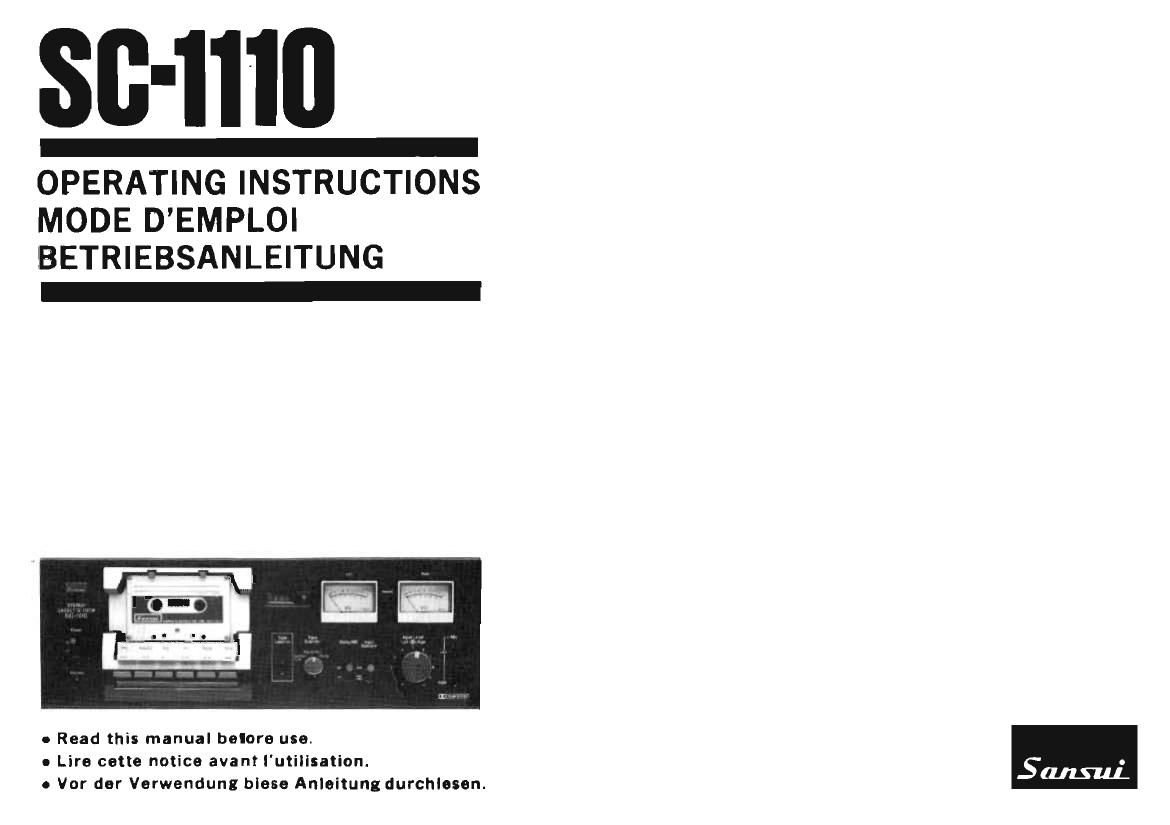

Sansui SC 1110 Owners Manual

Page 1

OPERATING INSTRUCTIONS
MODE DEMPLOI
FBETRIEBSANLEITUNG

. Read this manual beloro use.
0 Lire cette notice avant I'utilisation.
o Vor dar Verwendung blese Anleitung durchlosen.

Page 2

WARNING: To prevent fire or shock hazard,
do not expose this appliance to rain or
moisture.

ATTENTION: POur éviter les dangers d'élec-
trocution ou dincendie, ne pas exposer cet
appareil a la pluie ou a l'humidité.

WARNUNG: Setzen Sie dieses Gerat zur
Verh't'itung von Feuer- und Stromschlaggetahr
weder Regen noch Feuchtigkeit aus.

We are grateful for your choice of the Sansui SC-l110 stereo cassette
tape deck.
Before you begin to operate it, may we suggest that you read this
booklet of operating instructions once carefully? You will then be able
to connect and operate it correctly, and enjoy its superb performance
for years.

Features ................................... 4
Connections ................................. 6
Panel information ............................ 8
Operation .................................. 10
Some useful hints ............................. 22
Specifications ................................ 26
Conditions mistaken for breakdowns .................. 28
About rack mounting adaptors ...................... 31

Important precautions

" Avoid exposing the tape deck (as well as your amplifier and other
audio equipment) to rain or direct sunlight.

Avoid exposing the tape deck to dust, excessively warm or cold
temperatures.

Place your tape deck on a solid, vibration-free surface.

Never remove the side bottom plates. Such removal is both physical-
ly and electrically dangerous.

If you place the tape deck on a shelf,be sure that the shelf board is
thick and strong enough to support the weight of the tape deck.
To clean the face and rear panels, wipe gently with a soft cloth
damped with water. Avoid the use of alcohol, thinners or benzine as
the surfaces in question may be permanently marred.

x

a

t

s

a

Do not lose the Warranty Card that carries your units Model No.
and Serial No.

Page 22

Some useful hints

Cleaning the heads

The binder and oxide from magnetic tape accumulate on the heads (A
and B) over a long period of time, along with dust and other impurities.
This will impair the heads sensitivity as well as the total quality of
reproduced sound, and could also result in 'dropouts of sound. In
addition, if the capstan shaft [Cl and pinch roller (D) are contaminated,
it could cause irregular revolution (technically termed 'wow').

If such seems to be the case with your tape deck, wipe these parts
carefully with the Head Cleaning Pen (supplied) or a head cleaning
kit. Cleaning of the head is made easier if you push the PLAY button
while you clean it. Never use anything that may scratch or nick the
head surfaces.

Demagnetizin ereco play head

The record/play head (B) of your tape deck gradually becomes mag-
netized with use and tends to add noise to reproduced sound.

It is therefore adVisable to demagnetize the head from time to time,
using a head demagnetizer. This greatly helps to prevent precious music
tapes and important recordings from acquiring undesirable noise, and
also helps you make noise-free recordings. Be sure to turn the POWER
switch off before you attempt to demagnetize the tape head.
