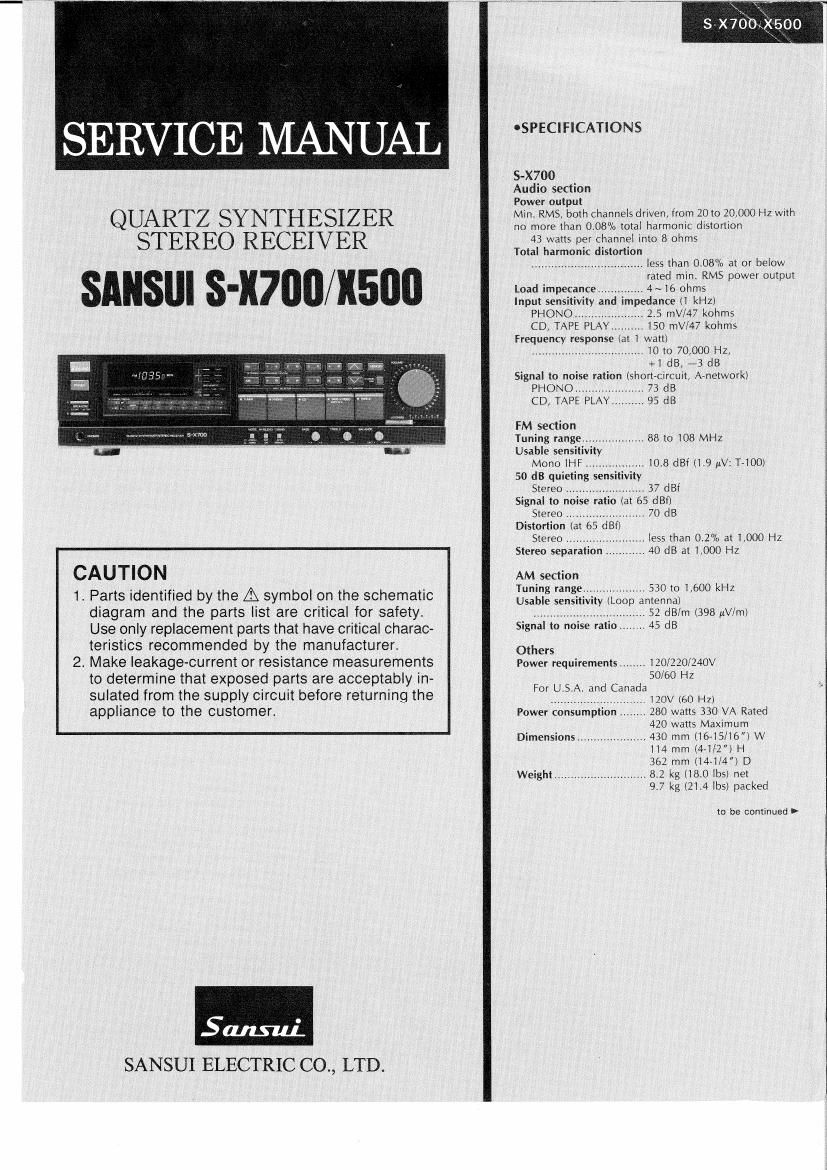

SERVICE MANUAL

QUARTZ SYNTHESIZER
STEREO RECEIVER

SAHSIII S-X700/X500

CAUTION

1. Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

Sara-u}.
SANSUI ELECTRIC CO., LTD.

'SPECIHCATIONS

5-X700
Audio section
Power output
Min. RMS, both channels driven, from 20 to 20,000 Hz with
no more than 0.08% total harmonic distortion
43 watts per channel into 8 ohms
Total harmonic distortion
.Iess than 0.08% at or below
rated min. RMS power output
Load impecance.... ...... 4 ~ l6 ohms
Input sensitivity and impedance (1 kHz)
PHONO ......... . . 2,5 mV/47 kohms
CD, TAPE PLAY 150 mVi47 1(0th
Frequency response lat 1 watt)
................................ TO to 70,000 Hz,
+1 dB, 73 dB
Signal to noise ration (ShOerCNCUiI, Arnetwork)
PHONO. .....
CD, TAPE PLAY

FM section
Tuning range ................... 88 to 708 MHZ
Usable sensitiv y

Mono lHF. ..

Signal to noise ratio (at 65 dBfi

Stereo ...................... 70 dB
Distortion (at 65 dBt)
Stereo .less than 0.2% at 1,000 Hz

Stereo separation r . 40 dB at 1000 Hz

AM section

Tuning range ................. 530 to 1,600 kHz
Usable sensitivity {Loop antenna)

.52 dB/m (398 uV/m)
45 dB

Signal to noise ratio

Others
Power requirements 120i220i'240V

50/60 HZ

For U SA. and Canada
. iZOV (60 HZ)
.. 280 watts 330 VA Rated
420 watts Maximum
Dimensions ................... . 430 mm (l6-i5/ib") W
H4 mm (4-1/2") H
362 mm ii4rii4) D
Weight .......................... 8.2 kg (18.0 lbs) net
9.7 kg (2i.4 lbs) packed

Power consumption

to be continued >

Page 2

S-X500
Audio section
Power output
Min. RMS, both channelsdriven, from 30 to 20,000 Hz with
no more than 0.2% total harmonic distortion
30 watts per channel into 8 ohms
Total harmonic distortion
.................................. less than 0.2% at or below
rated min. RMS power output
Load impecance ............. 4-16 ohms
Input sensitivity and mpedance (1 kHz)
PHONO ......... 2.5 mV/47 kohms
CD, TAPE PLA 150 mV/47 kohms
Frequency response (at 1 watt)
.................................. 10 to 70,000 Hz,
+1 dB, 73 dB
Signal to noise ration (short-circuit, A PHONO ......... 73 dB
CD, TAPE PLA 95 dB

_ FM section
Tuning range. ............... 88 to 108 MHz
Usable sens" 'vtty
Mono IHF ......
so dB qui

,. 10.8 dBf (1.9 V: T-100)

Stereo .. 37 dBf
Signal to noise rat (a 65 dBf)
Stereo ........................ 70 dB
Distortion (at 65 dBf)
Stereo ttttttttt ., less than 0.2% at 1,000 Hz

Stereo separation . .. 40 dB at 1,000 Hz

ttttttttttt 530 to 1,600 kHz
Y (Loop antenna)
.. 52 dB/m (398 uv/m)

Signal to noise ratio.., .. 45 dB
Others
Power requirements ........ 120/220/240V
50/60 HZ
For U.S.A. and Canada
,. 120V (60 HZ)

.. 190 watts 220 VA Rated
280 watts Maximum
Dimensions ..................... 430 mm (16-15/16") W
114 mm (4-1/2) H
362 mm (14-1/4) D
Weight ............................ 7.4 kg (16.3 lbs) net
8.6 kg (19.0 lbs) packed

Power consumption

- Desiyl and specifications suhiect to changes without notice for im-
provements.

- Due to local laws and regulations, this unit sold in some areas are not
equipped with variable voltage selector!

CAUTION

. The symbols, UL, CSA, SA, BS, UK, EU, AS, SEV

and XX (EXPORT) on the parts list and the schematic
diagram mean followings respectively.

UL ............ . ...... Manufactured for USA market.
(Underwriters Laboratories ap-
proved model.)

. Manufactured for Canadian market.

.. Manufactured for South African
market.

GSA
SA ..

BS, UK... .. Manufactured for United Kingdom
market.
EU .. .. Manufactured for European market.

AS .. .. Manufactured for Australian market.
SEV ................. Manufactured for Swiss market.
XX (EXPORT).. Standard Version.

NON MARK ..... Common Parts.

. Some printed circuit boards are not supplied as-

sembled.

To separate these in this service manual, the stock
numbers are not indicated for these boards.
However, stock numbers for individual parts are in-
dicated.

. Since some capacitors and resistors are omitted from

parts lists in this service 'manual, refer to the Com-
mon Parts List for capacitors & resistors, which was
issued on February 1983.

. Abbreviations in this service manual are as follows.

- IAbbreviations List

C.R. : Carbon Resistor

S.R. : Solid Resistor

W.R. 2 Wire Wound Resistor

M.R. : Metal Film Resistor

F.R. : Fusing Resistor

N.I,R. : Non-Intiammable Resistor

R.A. : Resistor Array

C.C. : Ceramic Capacitor

C.T. : Ceramic Capacitor, Temperature
Compensation

E.C. : Electrolytic Capacitor

E.L. : Low Leakage Electrolytic Capacitor

EB. : Bi-Polar Electrolytic Capacitor
E.B.L. : Low Leakage Bi-Polar Electrolytic
Capacitor

Ta.C. : Tantalum Capacitor

F.C. : Film Capacitor

M.P. : Metallized Paper Capacitor
F.C. : Polystyrene Capacitor

C.A. : Capacitor Array

V.R. : Variable Resistor

SW. : Switch

Chip R. : Chip Resistor

Chip C. : Chip Capacitor
