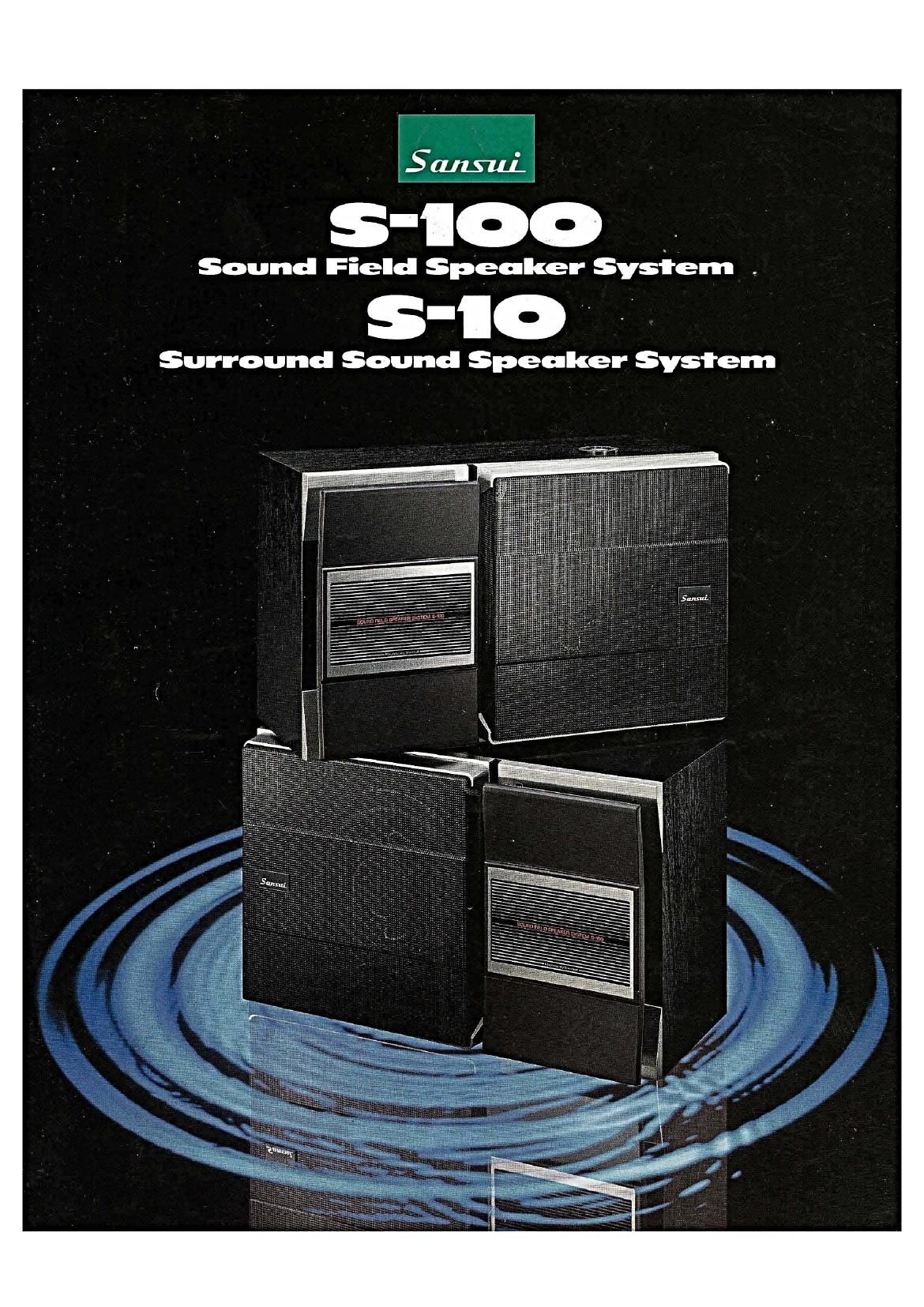

Sansui S 100 Brochure

Page 1

A J

Sound Field Speaker Sys'i'em .

Surround Sound Speaker System

Page 2

Basic configuration

The $100 comprises one 154mm (6-1/16")
cone woofer and two cone tweeters. 50mm
(MS/16") and 75mm (2-15/16"). respectively,
One tweeter is mounted coaxially with the
woofer. and the other is separate and has
an adjustable reflector to deflect and dis-
perse the sound it generates. A switch is
provided to choose between normal use
and surround sound. making the 8400

7

"1/ 5-100 Sound Field Speaker System-

Three-way application

I For ill-fl sound

You can use the 8-100 just like any high-
power speaker system. The woofer repro-
duces frequencies up to 4kHz. while
attenuating those beyond that frequency
with a sharp 18dBIoct. curve. The coaxi-
ally mounted tweeter is responsible for
frequencies of 5kHz and beyond. while

the separate tweeter handles frequencies I For video sound reproductlon

combining high power and
versatile applications.

The 5-10!) is nflonlmgei idea, it's a versatile one.

Use it like any other'spemter? -... H w-
it handles a high power input of 180 watts (peak).

Or use It as an AV" speaker beside your TV or monitor

to add exci Writent to videEviewingzd

it's magnetically shielded so it wontdistilbipicituiretiubfloliog
You can also use the 8-100 as a surround sound speaker , ,

for video programs: it has an extra speaker unit

:Nhose odtput can be deflectedjoitheyest suiodrfléffeft

7 7* 7; Whatever use you puma 8-196 to,

7 ourlnnovative speaker system creates a full,

i liteliitersound field, and puts you right in the middle of in,

I For surround sound

When set for surround sound. the 8-100
routes frequencies up to 4kHz to the
woofer (which cuts the sound beyond that
frequency with a mild 6dB/oct. curve).
frequencies from 10kHz and up to the
coaxially mounted tweeter, and frequen-
cies over 4kHz to the reflector-equipped
separate tweeter. By deflecting midrange
as well as high frequencies by the reflector.

oi 10kHz and up. Therefore. important in integrated AV systems where the
musical frequencies are handled by the separate speakers are placed in close
coaxially mounted units. so stereo imaging proxrmity to the TV, speaker magnetism
is razor-sharp. And high frequencies can adversely affect colors on the screen.
beyond 10kHz can be deflected by the With the 8-100. however. stray magnetism
sound reflector, to give you total control is fully contained. so you can place our

extremely versatile. you can recreate the ambience of a movie-
theater. Morever. since the vocal frequen-
cies of BOOHz to 1 kHz are given emphasis.

dialogue will be heard more clearly.

Quality parts for quality sound
Weve used choice parts for high»quality

over ambience or presence, whatever the speakers next to your TV or monitor to

Made for high power and quality
sound

The woofer has magnets that offer a high
combined magnetic flux of 11,000 gauss.
An aluminum voice coil is used to improve
efficiency and transient response. The
voice-coil bobbin is made of glass cloth
coated with polyimide to resist high tem-
peratures. The spider uses metha-Iinked"
aramid fiber impregnated with phenol to
improve linearity and expand the travel
range. The surround is made of a sepa-
rate high-polymer material for improved
linearity. And the cone is wet-pressed"
for strength and light weight, It all adds up
to high power (180 watts peak) and quality
sound-especially from digital programs.

room size or decor,

enjoy realistic video sound.

A setup for treble-rich. well-defined sound
better definition.

A setting for lrnulltlng the acoustics you'd have
sitting in I out at the roar of a moviehouu.

A setting that combines comfortable presence and

sound. For instance, the network features
inductors using OFC (Oxygen-Free Copper)
wire for coils. and high-temperature film
capacitors. The enclosure combines good
sonority and high rigidity to provide better
sound.

Theres more variety
The number of ways you can use the
S100 is almost
limitless. Using two
each for both front
and surround gives
you total control over
the 3~dimensional
sound field, Or. you
can stack a number of
them to dramatically
boost dynamics.

S-IO Surround Sound Speaker
System - a simple way to
upgrade to surround video

The 5-10 speaker system lets you plunge easily
into the exciting world of surround sound.
putting you in the center of a whirlpool ot
exciting sound. Like the 8-100. it has a sound
reflector that lets you adjust the sound to suit
the size and acoustics of your room. Just add
the pair (and a Sansul surround processor) to
your audio/video system. and you're ready to
enter the world of sheer realism.

Compact full-range design

An 11cm (4-3/8") full-range cone speaker unit
covers the 85Hz to 14kHz range to reproduce the
surround sound contained in new video tapes
and discs. Because the 3-10 is compact and
comes with mounting hardware. it can even be
hung from the wall it necessary.

Sound reflector to optimize ambience
The $10 comes with a front-mounted sound
reflection panel that can be tilted and adjusted.
so that sounds will be directed toward the
listening area or away to give you optimum
ambience.
