Sansui RZ 590 Service Manual

Page 1

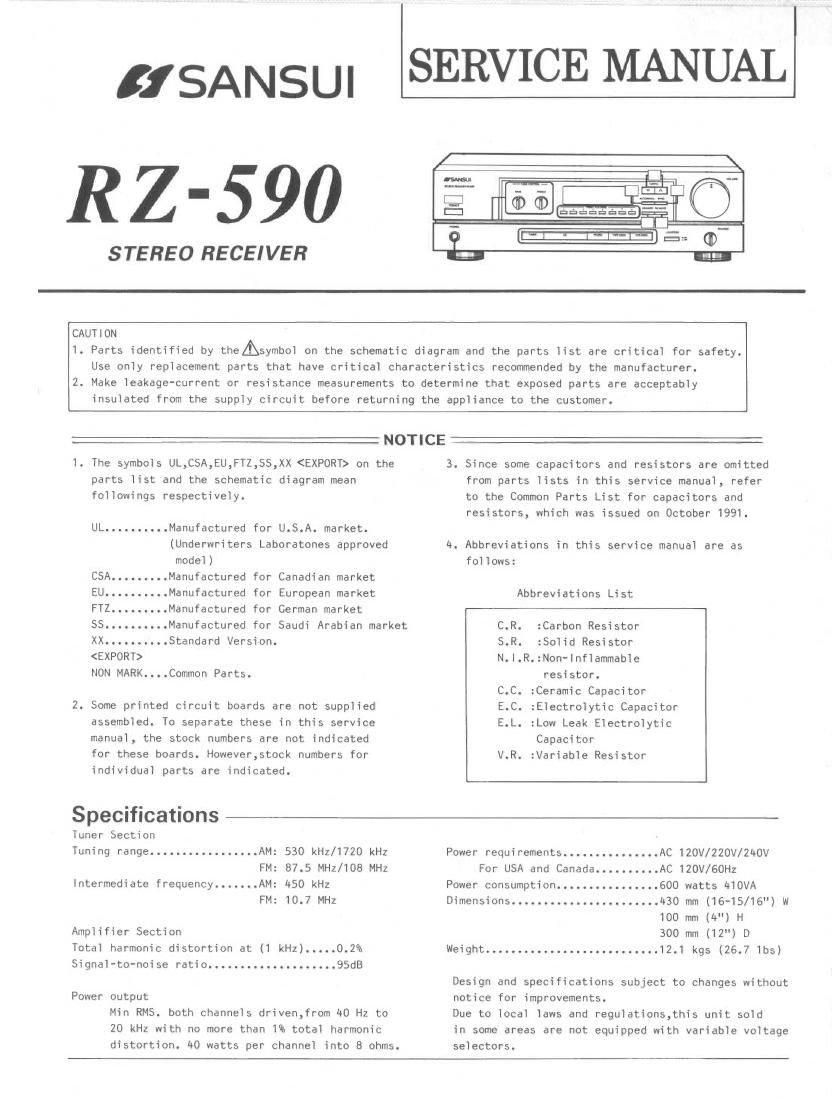

I] SANSUI ISERVICE MANUAL

RZ-590

STEREO RECEIVER

A \

9
El

CAUTlON

1. Parts identified by thezffisymbol on the schematic diagram and the parts list are critical for safety.
Use only replacement parts that have critical characteristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements to determine that exposed parts are acceptably
insulated from the supply circuit before returning the appliance to the customer.

1. The symbols UL,CSA,EU,FTZ,SS,
parts list and the schematic
followings respectively.

UL..........Manufactured for

XX on the
diagram mean

U.S.A. market.

(Underwriters Laboratones approved

model)

C5A.........Manufactured for
EU..........Manufactured for
FTZ .Manufactured for
SS..........Manufactured for
XX..........Standard Version,

NON MARK....Common Parts.

2. Some printed circuit boards a
assembled. To separate these

Canadian market
European market
German market

Saudi Arabian market

re not supplied
in this service

manual, the stock numbers are not indicated
for these boards. However,stock numbers for
individual parts are indicated.

NOTICE

3. Since some capacitors and resistors are omitted
from parts lists in this service manual, refer
to the Common Parts List for capacitors and
resistors, which was issued on October 1991.

4. Abbreviations in this service manual are as
follows:

Abbreviations List

C.R. :Carbon Resistor

S.R. Solid Resistor

N.l.R..Non-Inflammable

resistor.

C.C. :Ceramic Capacitor

E.C. :Electrolytic Capacitor

E.L. :Low Leak Electrolytic
Capacitor

V.R. :Variable Resistor

SpeCIficatIons

luner Section

Tuning range.............,...AM:
FM:

Intermediate frequency.......AM:
FM:

Amplifier Section
Total harmonic distortion at (1

Signal-to-noise ratio...........

Power output

530 kHz/1720 kHz
87.5 MHZ/108 MHZ
450 kHz
10.7 MHz

kHz). .O.2%
.........95dB

Min RMS. both channels driven,from 40 Hz to
20 kHz with no more than 1% total harmonic
distortion. #0 watts per channel into 8 ohms.

Power requirements...............AC 120V/220V/2HOV
For USA and Canada. .AC 120V/60H2
Power consumption................600 watts 410VA
Dimensions.......................k30 mm (16-15/16") W
100 mm (4") H
300 mm (12") D
Weight...........................12.l kgs (26.7 lbs)

Design and specifications subject to changes without
notice for improvements.

Due to local laws and regulations,this unit sold

in some areas are not equipped with variable voltage
selectors.
