Sansui RA 500 Owners Manual
This is the 9 pages manual for Sansui RA 500 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui RA 500 Owners Manual (Ocr-read)

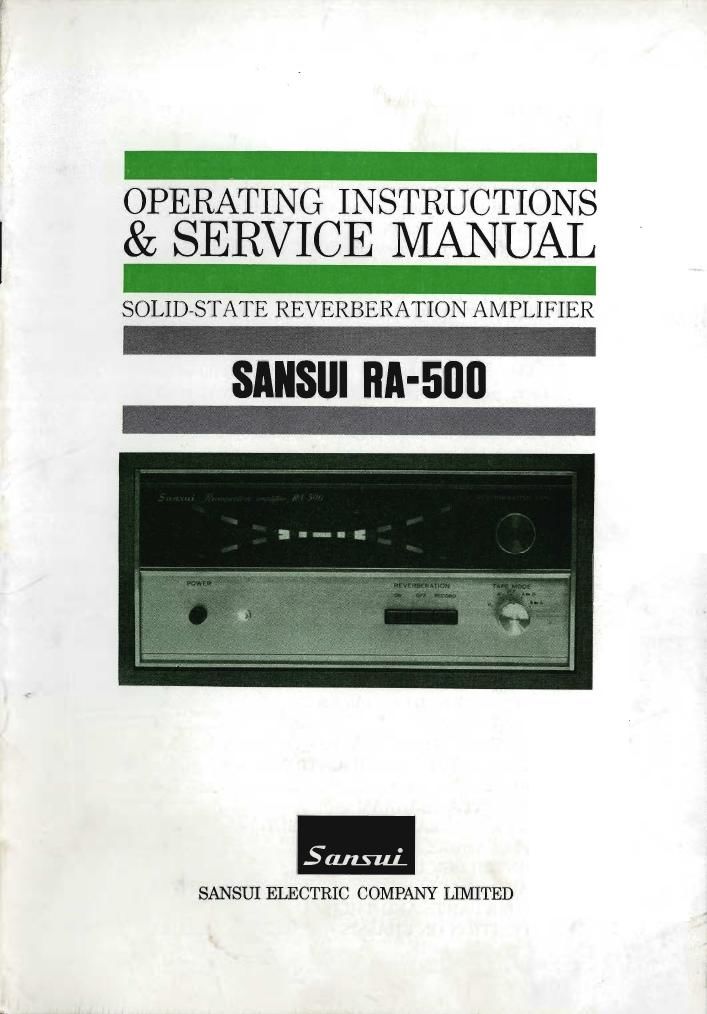

Page 1
OPERATING INSTRUCTIONS
& SERVICE MANUAL
SOLID-ST ATE REVERBERATION AMPLIFIER
SANSUI fill-500
_
SANSUI ELECTRIC COMPANY LIMITED
Page 2
Congratulations on joining the thousands of proud,
satisfied owners Of quality stereo components from
Sansui.
The RA-500 reverberation amplifier is a unique com-
ponent to add a new thrilling pleasure to your stereo
enjoyment. It can provide reverberation effects to all
the program sources set up on your existing stereo
control amplifier, including the playback from, record
ing on a tape deck, and dubbing between two tape
decks. The continuously controllable reverberation
time, multicolored reverberation indicator and other
new ideas have been engineered into the RA-500.
This manual has been prepared to guide you in con-
necting and operating the reverberation amplifier cor-
rectly. Please read it carefully before operating the
amplifier and retain it for future reference.
SWITCHES AND CONTROLS ........................... 3
CONNECTIONS ............................................. 4
CONNECTIONS /OPERATION ..................... 5, 6
HINTS ON USE /SPECIFICATIONS /
ACCESSORIES ......................................... 7, 8
SCHEMATIC DIAGRAM ................................. 9
BLOCK DIAGRAM /DISASSEMBLY
PROCEDURE /DIAL CORD ........................ 10
PRINTED CIRCUIT BOARDS
AND PARTS LIST ................................. 11, 12
OTHER PARTS AND THEIR
POSITION ON CHASSIS ........................ 13, 14
