Sansui RA 1000 Brochure

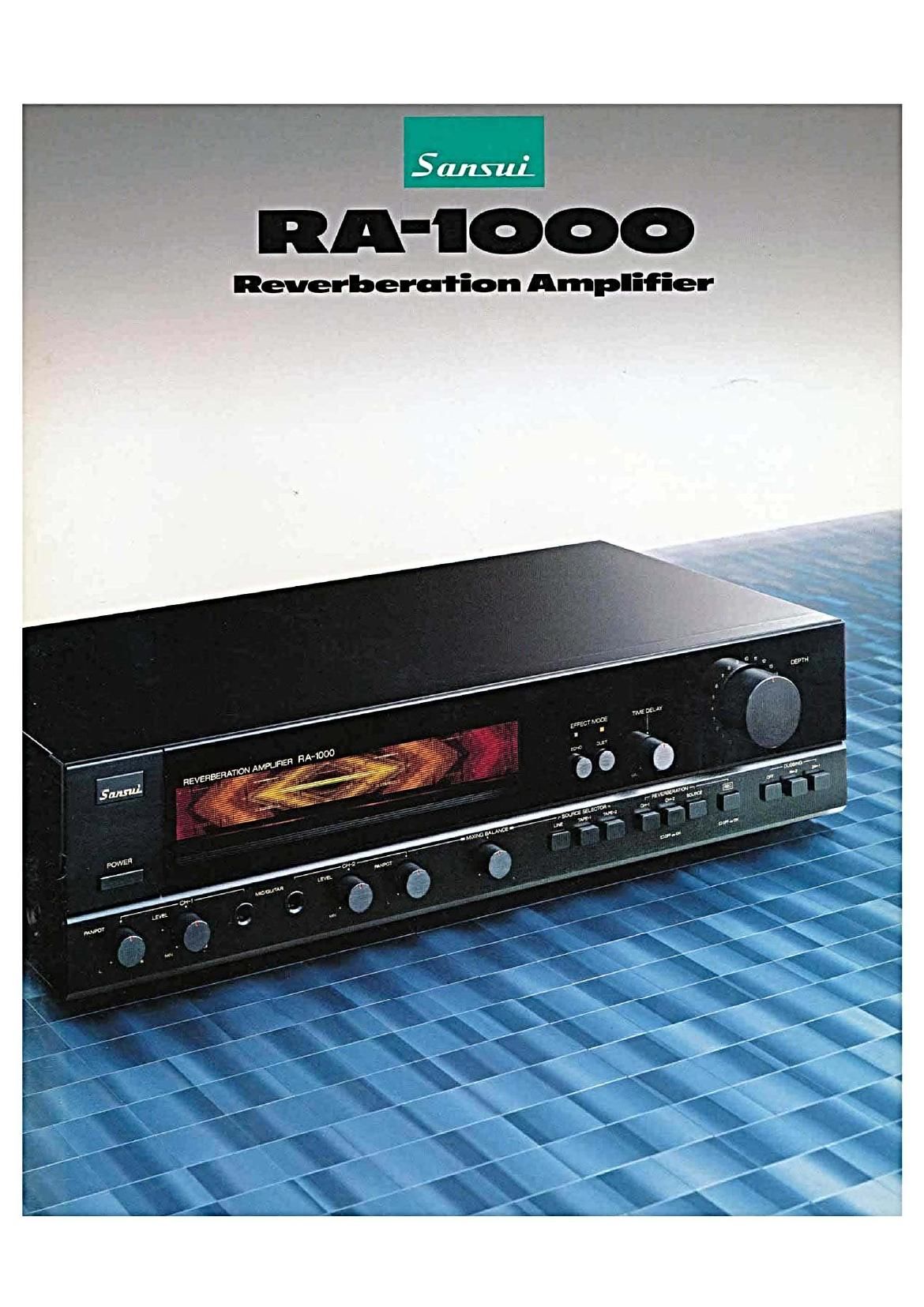

Page 1

Reverberu'l'ion Amplifier

.. I.

4:; .4 5

6
-

,

A __....- 4.

Page 2

Sansui RA-1000-turn your living room

into a concert hall,
movie theater, or discotheque.

What really gives music that you-are-
there realism is the amount of echo or
reverb you hear in the sound. A larger
amount of echo can make you feel like
you're sitting in a big hall or cathedral.
Smaller amounts create a discotheque-
like environment. Add echo to the sound
from your videos, and youve got your

own moviehouse-right in the home.

The Sansui IRA-1000 gives all the
concert hall realism you need, plus more.
You can make a solo artist sound like a
duo. Mix voice or guitar with the program
of your choice, and record the mix on
a connected tape deck-with echo.

Electronic 330 for
natural echo

Weve made the operation of our
reverb unit totally electronic. Using a
BBD (Bucket Brigade Device) ele-
ment. the RA-iOOO adds natural. Iow-
distortion reverberation to any pro-

gram material, including video sound.

I TWO reverb effects:

Echo and Duet

With echo on line, you can add
reverberation to the sound you hear
to simulate the acoustics of a vast
hall or intimate discotheque. The
duet effect. on the other hand.
makes a solo singer sound as if two
people were singing. The RA-iOOO
gives you a control over the delay
time to help you select the most
natural echo.

Color display pulsating
In sync with depth

As the dynamics fluctuate, so does
the colorful display on the front of
the PIA-1000. It expands and shrinks

Sansui:

Printed in Japan (60702P r .) Code No All-2680

and change colors in sync with the
beat of your music to create a visual
confirmation of what you hear.

2 mic (guitar) inputs for
mixing with audio Inputs

The RA~1000 has two inputs located
on the front panel for microphones
or guitars (or any other electronic
instrument). Reverberation can be
applied to either or both of the inputs.
You can move the source of your
voice or instrument anywhere be-
tween the stereo speakers-left.
right. or any intermediate location.
Moreover, you can mix the mic/guitar
sound with sound from a rear-
connected input (CD. record.

tape, radio) and play or record

the mix.

connections

Up to two tape decks can be con-
nected to the FiA-iOOO. You can dub
between the two decks in either
direction and even include reverb
effects in the recordings.

I 2 tape deck

SANSUI ELECTRIC CO.. LTD.

14-1. IZUMI 2-CHOME. SUGlNAMl-KU. TOKYO 168. JAPAN/TELEX J28310 SANSUITK
SANSUI ELECTRONICS CORPORATION

1250 VALLEY BROOK AVENUE. LYNDHURST. NEW JERSEY 07071. U S A.

SANSUI ELECTRONICS (UK) LTD.

UNIT 10A. LYON INDUSTRIAL ESTATE. ROCKWARE AVENUE. GREENFORD. MIDDX U86. 0AA. ENGLANDITELEX. 895 2103 (SANSUI G)

Because we use an electronic BBD
reverb unit, reverb is natural and noise
extremely low.

For enhanced sense of realism (or
just for fun), theres nothing like the
Sansui FiA-1000.

SPECIFICATIONS

TOTAL HARMONIC DISTORTION (at 2V)
less than 0025%
INPUT SENSITIVITY AND IMPEDANCE

MIC (GUITAR) 0.5mV/l0k ohms
LINE 150mv147k ohms
TAPE 150mv147ii ohms

RATED OUTPUT VOLTAGE AND IMPEDANCE
(reverberation oil)
TAPE REC 150mVI600 ohms
OUTPUT 150mV/4 7k ohms
(MAXIMUM OUTPUT 8V RMS a1005% THD)
FREQUENCY RESPONSE
(at 1V. reverberation time minimum)

SOURCE/TAPE io-BOOOOHz +DdB. -3dB
MIC (GUITAR) 100- 100001-41 4063. -3UB
SIGNAL-TO-NOISE RATIO
(at 3V)
MIC (GUITAR) more than 80dB (SnOTICIlCUIII
SOURCE more than 95dB (Aenelwork)
REVERBERATION TIME
ECHO 0-45 seconds
DUET 30-- 200m seconds
GENERAL
AC OUTLETS unswrtched total 150 watts
POWER REQUIREMENTS
POWER VOLTAGE 120. 220. 240V. 50/60Hz
POWER CONSUMPTION 15 watts
DIMENSIONS W 430mm 0645/16)
H it2mm (47116")
0 265mm (10-7/15")
WEIGHT 3 8kg (8 4 lbs.) Net

A7kg(104|bs)Packed

ODESIgIi and specrlications subtecl to change without
notice tor improvements

ODue to local laws and regulations. units sold in some areas
are not equrpped wuh variable voltage selectors
