Sansui QRX 6001 Owners Manual

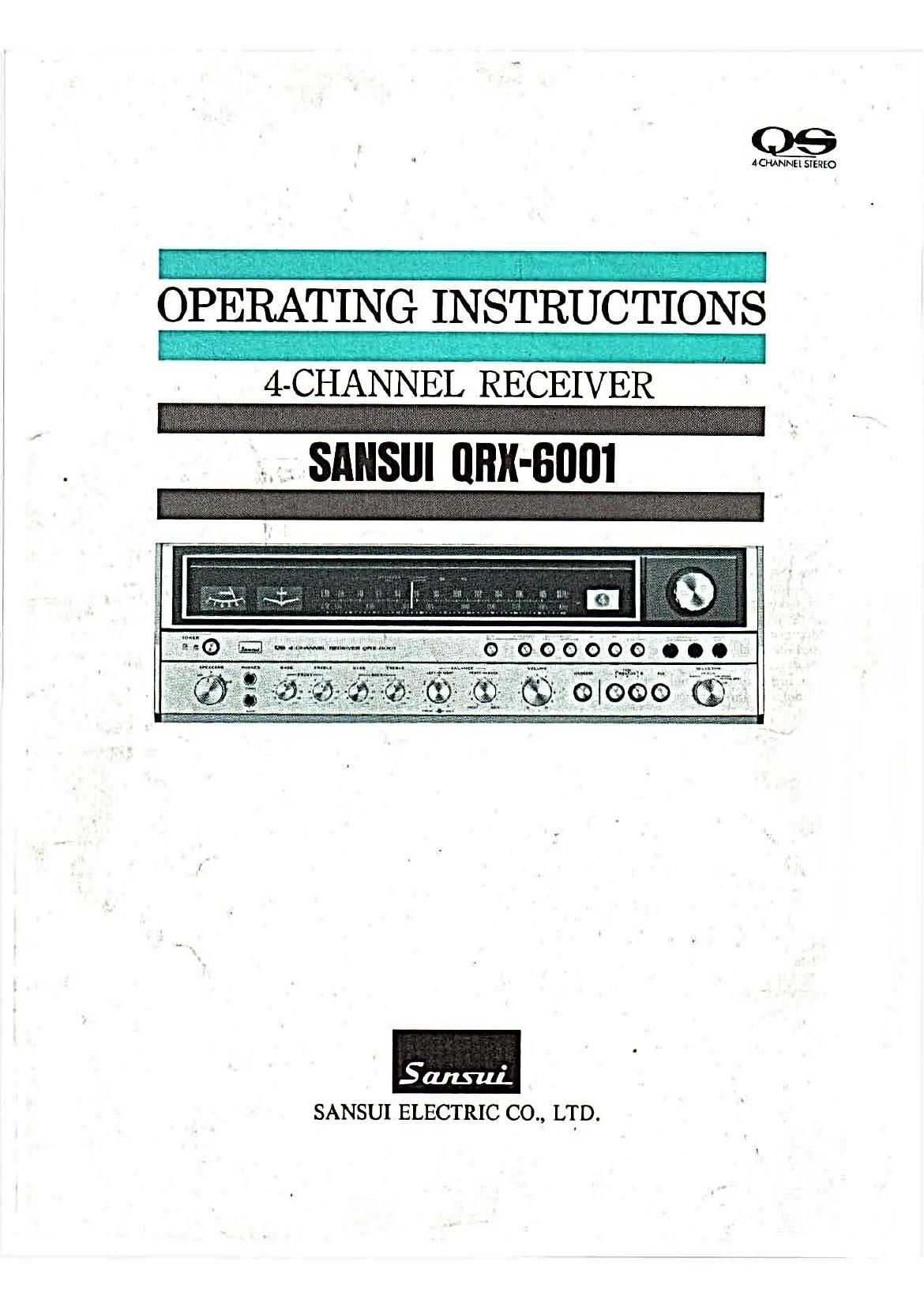

Page 1

4- HANNEL STEHE

n

OPERATING INSTRUCTIONS
4-CHANNEL RECEIVER

SANSUI HEX-8001

SANSUI ELECTRIC CO., LTD.

Page 2

We are grateful for your choice of the Sansui QRX-6001 4-channel receiver.
Before you begin to operate it, may we suggest that you read this booklet of
operating instructions once carefully? You will then be able to connect and
operate it correctly, and enjoy its superb performance for years.

OFUNCTIONAL FEATURES

Olncorporates a QSi Synthesizer circuit to reorganize
conventional 2-channel stereo signals and create a 4-
channel sound field.

OThe built-in QS regular matrix system 4-channel de-
coder decodes 4-channel records and tapes encoded
with the regular matrix system such as the Q5 system,
and their broadcasts, to reproduce them as a perfect
4-channel sound field.

OThe built-in Phase Matrix circuit, featuring Sansuis
own front-back logic, decodes records and tapes en-
coded with the SQ system to properly reproduce them
in 4-channel stereo.

OThe new Sansui-improved built-in CD-4** demodu-
lator makes it possible to reproduce discrete 4-channel
records, with increased inter-channel separation.
Olncorporates PHONO inputs, two 4-channel tape
record/playback circuits. The 4-channel front inputs can
be in exactly the same manner as 2-channel inputs, for
either ordinary 2-channel reproduction or 4-channel
reproduction through the built-in 4-channel decoding
circuit.

F-Table of Contents-

IMPORTANT PRECAUTIONS

OFacilities for independent adjustment of tonal quality
in the front and back channels.

OFor the reception of FM broadcasts, provisions are
made for both 75-ohm and 300-ohm FM antenna termi-
nals. Connection is extremely simple when setting up
an outdoor antenna using either a 75-ohm unbalanced
coaxial type lead-in cable or a 300«ohm balanced feeder
type leadrin cable.

T TM Sansui, ' TM cas, Inc., 0 m JVC. Inc.

N

REAR-PANEL CONNECTIO'

HINTS FOR BETTER REF .QN

-EDURES

BASIC OPERATING r

D TO YOUR TASTE
CHANNEL

CONTROLLING "
2-CHANNEl

PLACEM" «r SPEAKER SYSTEMS

CON
P .c} RECORDS

ON OF SPEAKER SYSTEMS/Connecting Headphones

.USTMENT FOR PLAYING CD-4 RECORDS
RECEIVING RADIO BROADCASTS

TAPE RECORDING & PLAYBACK

- 13

CONDITIONS MISTAKEN FOR BREAKDOWNS
SIMPLE MAINTENANCE HINTS

SPECIFICATIONS

16,17

18
