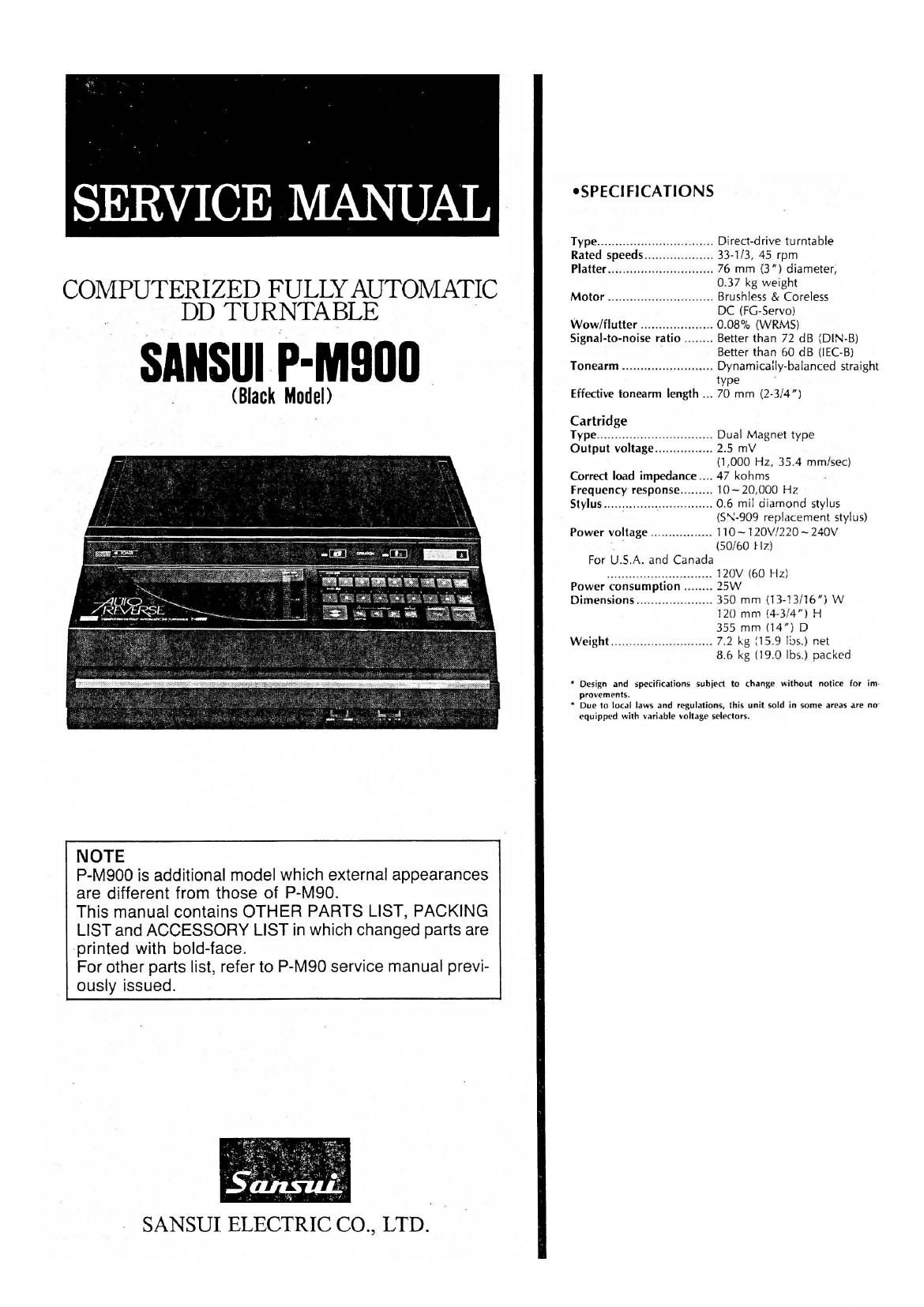

Sansui P M900 Service Manual
This is the 30 pages manual for Sansui P M900 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui P M900 Service Manual (Ocr-read)
Page 2
1. PACKING LIST
Parts No. Stock No. Description
1 Accessories (Sound Absober)
2 - Polyethlen Bag
3 Turntable
4 47859600 Vinyl Bag
5 13285400 Corrugated Board
6-1 13287710 Styrofoam Packing (Left Side)
6-2 13287810 Styrofoam Packing (Right Side)
7 Tag
8 00423400 Transit Screw, 4X16 Binding
9 47942100 Carton Case
10 Bottom Packing
2. ACCESSORY LIST
Stock No. Description
48181600 2P Plug Cord
46980600 Operating Instruction
Accessories (Sound Absoverl
13308100 Wooden Board (Front Side)
{13308000 Wooden Board (Rear Side)
13307900 Pipe
13145100 Insulator
46971900 Operating Sheet
3. OTHER PARTS
3-1. Disk Base and Disk Plate
LOCKSCWW 6) Rear Side of Disk Base Lock Screw
Jlle '1 @
Disk Plate
Lock Plate
Guide Rail Guide Rail
Disk -
B o o Dlsk
ase «a 419;, Ease
® E31 1) Rear gide of Disk Base G
Roller _ [[9 J . <9 . Roller.
GUId Rail - Guid Rail
