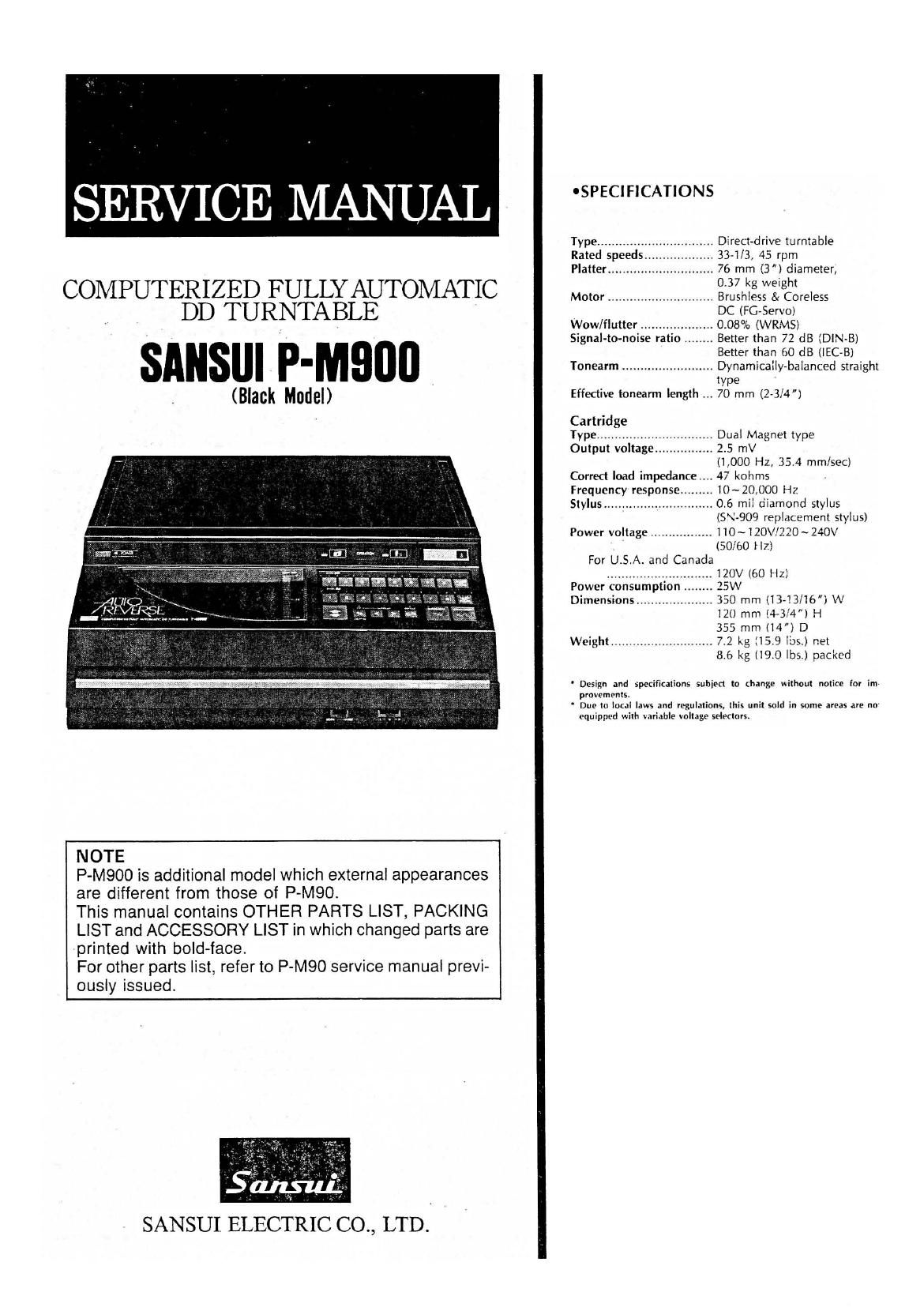

Page 1

SERVICE MANUAL

COMPUTERIZED FULLY AUTOMATIC

DD TURNTABLE

SANSUIP-M9flll

(Black Model)

NOTE

are different from those of P-MQO.

printed with bold-face.

ously issued.

P-M900 is additional model which external appearances

This manual contains OTHER PARTS LIST, PACKING
LlST and ACCESSORY LlST in which changed parts are

For other parts list, refer to P-MQO service manual previ-

SANSUI. ELE

CTRIC CO., LTD.

'SPECIFICATIONS
Type ................................ Direct-drive turntable
Rated speeds.. 33-1/3, 45 rpm
Platter ............................. 76 mm (3 ) diameter,
0.37 kg weight
Motor ............................. Brushless 8: Coreless
DC (FG-Servo)
Wow/flutter .................... 0.08% (WRMS)
Signal-to-noise ratio ........ Better than 72 dB (DINB)
Better than 60 dB (IEC~B)
Tonearm ......................... Dynamically-balanced straight
type
Effective tonearm length 70 mm (2-3/4)
Cartridge
Type ................................ Dual Magnet type
Output voltage ................ 2.5 mV

(1,000 Hz, 35.4 mm/sec)
Correct load impedance... 47 kohms

Frequency response ......... 10~20,000 Hz

Stylus .............................. 0.6 mil diamond stylus
(SN-909 replacement stylus)

Power voltage ................. 110 ~120V/220 ~ 240V
(50/60 Hz)

For U.S.A. and Canada
............................. 120V (60 HZ)

Power consumption. 25W

Dimensions ..................... 350 mm (13-13(16; W
120 mm (4-3/4") H
355 mm (14) D

Weight ............................ 7.2 kg (15.9 lbs.) net
8.6 kg (19.0 lbs.) packed

' Design and specifications subject to change without notice for im
provements.

Due to local laws and regulations, this unit sold in some areas are no
equipped with variable voltage selectors.

Page 2

1. PACKING LIST

Parts No. Stock No. Description

1 Accessories (Sound Absober)
2 - Polyethlen Bag

3 Turntable

4 47859600 Vinyl Bag

5 13285400 Corrugated Board

6-1 13287710 Styrofoam Packing (Left Side)
6-2 13287810 Styrofoam Packing (Right Side)
7 Tag

8 00423400 Transit Screw, 4X16 Binding
9 47942100 Carton Case
10 Bottom Packing

2. ACCESSORY LIST

Stock No. Description

48181600 2P Plug Cord
46980600 Operating Instruction

Accessories (Sound Absoverl
13308100 Wooden Board (Front Side)
{13308000 Wooden Board (Rear Side)
13307900 Pipe
13145100 Insulator
46971900 Operating Sheet

3. OTHER PARTS

3-1. Disk Base and Disk Plate

LOCKSCWW 6) Rear Side of Disk Base Lock Screw

Jlle '1 @

Disk Plate

Lock Plate

Guide Rail Guide Rail
Disk -
B o o Dlsk
ase «a 419;, Ease
® E31 1) Rear gide of Disk Base G

Roller _ [[9 J . <9 . Roller.
GUId Rail - Guid Rail
