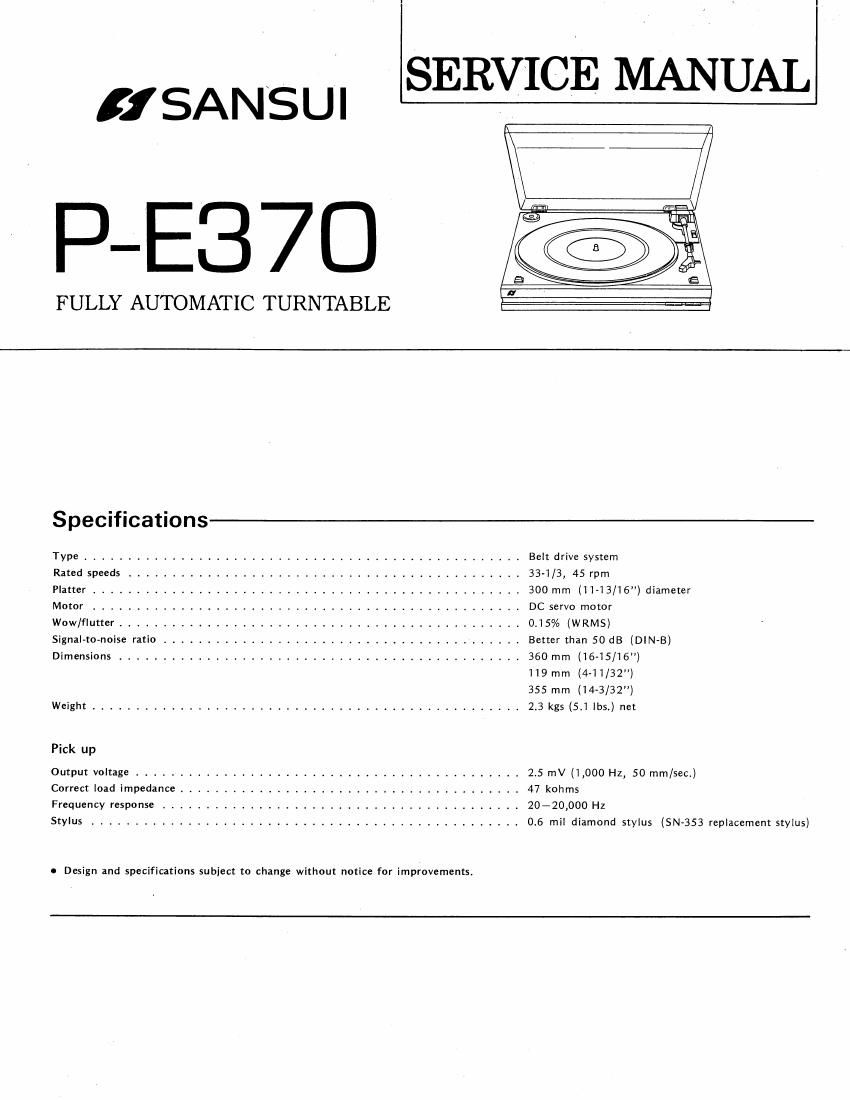

Page 1
lSERVICE MANUAL
[ISANSUI
P-E37D
FULLY AUTOMATIC TURNTABLE
Specifications
Type . _ Belt drive system
Rated speeds 33-1/3, 45 rpm
Flatter ............................................... 300 mm (11-13/16) diameter
DC servo motor
Motor ..............
Wow/flutter .......... 0.15% (WRMS)
Signal-to-noise ratio ....... Better than 50 dB (DlN»B)
Dimensions .............................................. 360 mm (16-15/16")
119 mm (4-11/32")
355 mm (14-3/32")
Weight ................................................. 2.3 kgs (5.1 lbs.) net
Pick up
Output voltage ............................................ 2.5 mV (1,000 Hz, 50 mm/secJ
Correct load impedance ....................................... 47 kohms
20-20300 Hz
...... 0,6 mil diamond stylus (SN-353 replacement stylus)
Frequency response ..................
Stylus
a Design and specifications subject to change without notice for improvements.
