Sansui P E350 Service Manual

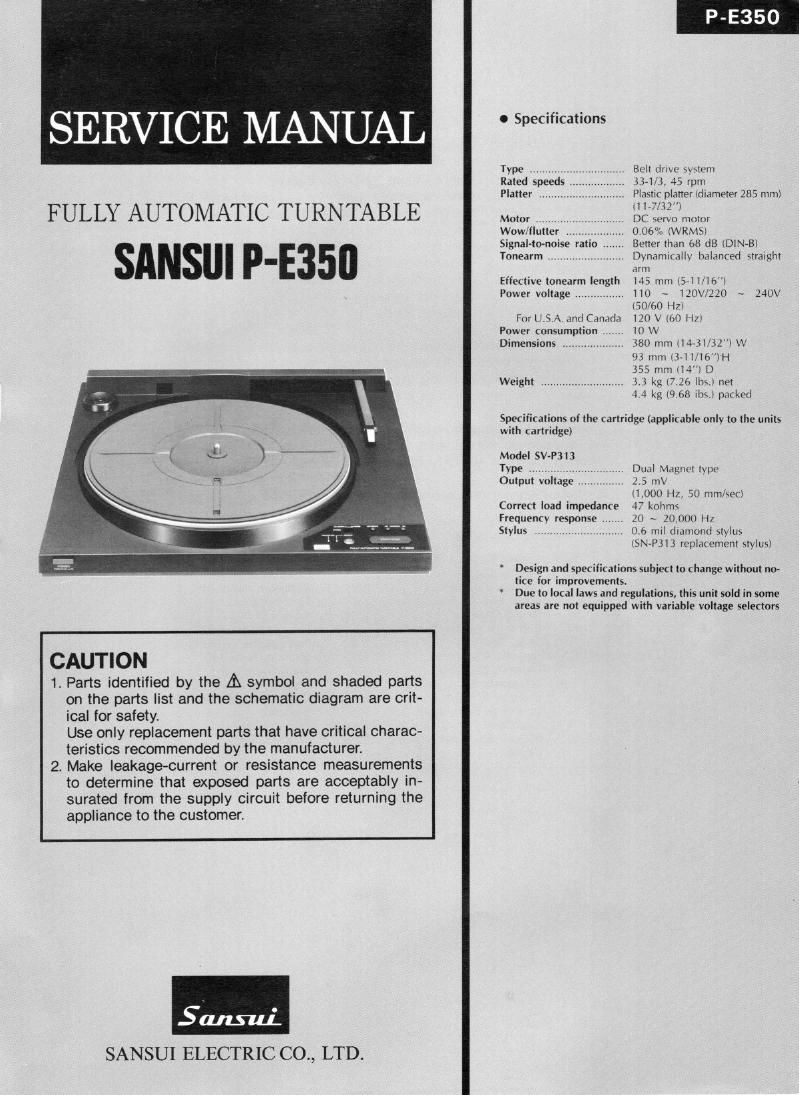

Page 1

SERVICE MANUAL 0 Specifications

Typo . . . . . . Boll (up do!
Rated speeds . . Ain't. 4% rpm
Planer ., .. .. .. . . Plamt planerldmmklerlfis mnll

FULLY AUTOMATIC TURNTABLE Mom, ,. . .Bélifg'mt

Wowflutter . U 06% (WRMSI

Signal-to-nmse r Better than ()8 dB (DlNrBl
sANsul P-E35u Tonearm . . .. D\fldllll(dll\ balanced straight
arm
Elli-(live tonearm length H3 mm \S-l lllh'l
Power voltage . ,, 1 ll) - 11thle ~ 240V
till/60 Hzl
For LA It and (anmla Ill) \. ll) /1
Power consumption . . 10W
Dimensions . .. 180 mm illllil." l W
H um! \l-l thW H
H3 mm \H' l [)
Weight . .. i i kg i :6 Ilw not
4 4 kg 19 68 ll)\ l par ketl

Speciikations of the cartridge tapplirahle only to the units
with cartridge)

Model SV»P313

Type . . . ,. Dual Manuel val

Output voltage . ..... 1.3 m\'
ll,()(lll H/ Ell nun/x00

Corral load impedance J7 knhum

Frequenty response . .0 ~ 20,000 Hz

Stylus 0.6 mil diamond ~l\ltis
th-Pil 5 wplatenwnl »l\|us)

Design and specifications subiect to change without no«
tice for improvements.

Due to local laws and regulations, this unit sold in some
areas are not equipped with variable voltage selectors

CAUTION

1. Parts identified by the A symbol and shaded parts
on the parts list and the schematic diagram are crit-
ical for safety.

Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
surated from the supply circuit before returning the
appliance to the customer.

Sanswu'.
SANSUI ELECTRIC C0., LTD.

Page 2

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.

UL ................. Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)
CSA ............... Manufactured for Canadian market.

Manufactured for South African market.
Manufactured for United Kingdom market.
. Manufactured for European market.
Manufactured for Australian market.
......... Standard Version.
NON MARK ..... Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capaci»
tors & resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

0 Abbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper
N.l.R. : Non-lnflammable Resistor Capacitor
A.R. : Array Resistor P.C. : Polystyrene Capacitor
C.C. : Ceramic Capacitor G.C. : Gimmic Capacitor
C.T : Ceramic Capacitor, A.C. : Array Capacitor
Temperature Compensation V.R. : Variable Resistor
E.C : Electrolytic Capacitor S.V.R. : Semi Variable Resistor
E.L. : Low Leak Electrolytic SW. : Switch
Capacitor Chip R. : Chip Resistor
E.B. : Bi-Polar Electrolytic Chip C. : Chip Capacitor

Capacitor
