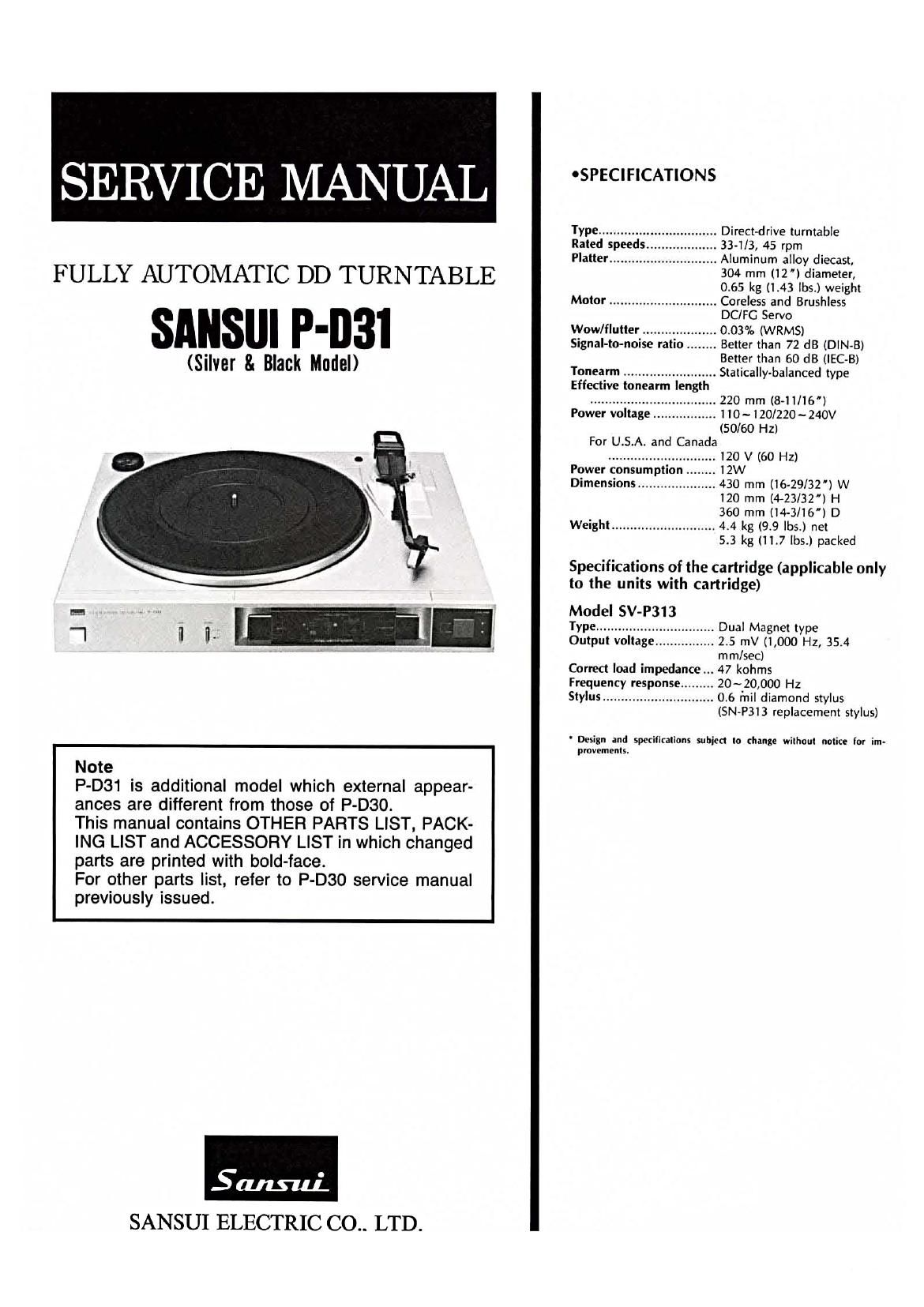

SERVICE MANUAL

FULLY AUTOMATIC DD TURNTABLE

SAHSIII P-D3l

(Silver & Black Model)

i

.Jil

Note

P-D31 is additional model which external appear-
ances are different from those of P-D30.

This manual contains OTHER PARTS LIST, PACK-
ING LIST and ACCESSORY LIST in which changed
parts are printed with bold-face.

For other parts list, refer to P-Dao service manual
previously issued.

SW11:
SANSUI ELECTRIC CO.. LTD.

'SPECIFICATIONS

Type ................................ Direct-drive turntable
Rated speeds ..... 33-1/3, 45 rpm

Platter ............................. Aluminum alloy diecast,

304 mm (12") diameter,
0.65 kg (1.43 lbs.) weight

Motor ............................. Coreless and Brushless
DC/FG Servo
Wow/flutter .................... 0.03% (WRMS)
Signal-to-noise ratio ........ Better than 72 dB (DIN-B)
Better than 60 dB (IEC-B)
Tonearm ......................... Statically-balanced type

Effective tonearm length
.................................. 220 mm (8-11/16)
Power voltage ................. 110 ~ 120/220 ~ 240V
(50/60 HZ)
For U.S.A. and Canada
............................. 120 V (60 Hz)
Power consumpt 12W
Dimensions ..................... 430 mm (16-29/32") W
120 mm (4-23/32") H
360 mm (14-3/16) D
Weight ............................ 4.4 kg (9.9 lbs.) net
5.3 kg (11.7 lbs.) packed

Specifications of the cartridge (applicable only
to the units with cartridge)

Model SV-P313

Type ......................... Dual Magnet type

Output voltage ................ 2.5 mV (1,000 Hz, 35.4
mm/sec)

Correct load impedance... 47 kohms

Frequency response ......... 20~20,000 Hz

Stylus .............................. 0.6 rnil diamond stylus

(SN-P313 replacement stylus)

' Design and specifications subiect to change without notice for im-
provemenls.

Page 2

1. OTHER PARTS

Front View

12512.5?" (2112,11 15117118, "131141151 11112
Parts List
Parts No. Stock No. Description Parts No. Stock No. Description
1 50624800 Cap 18 13145810 Indicator Holder
2 13083210 Adjusting Cam 19 47438510 Push sw Knob, REPEAT
3 13272100 1.1=.c. Ass'y 20 46395900 Push sw., REPEAT
4 13139900 Lifter Plate 21 07910900 Push sw Knob, SIZE, SPEED
5 13153400 Lifter Spring
6 13137600 Arm Rest 07911000 Push SW Knob, SIZE, SPEED
7 13138500 Rest Hook
8 13167700 Screw 2X5, rest hook 22 46368500 Push SW., SPEED
9 13283600 Tonearm Ass'y 23 46371000 Push SW., SIZE
10 13283300 Cartridge Assy, sv-P313 24 07971220 Push SW. Knob, POWER 101 13283400 Stylus, SN-P313 Mode|>
10-2 13288800 Screw Ass'y 07911210 Push SW. Knob, POWER 11 13139800 Push sw. Knob, UP/DOWN Model>
12 46371600 Push sw., UP/DOWN 25 46364300 Push sw., POWR
13 47438610 Push sw. Knob, START/STOP 26 13012300 EP Adaptor
14 46395900 Push sw., START/STOP 27 13140800 Turntable Sheet
15 07962600 Cushion
16 13253200 Indicator Case Cover 13140900 Turntable Sheet

17 13258600 Indicator Plate 28 13147210 Turntable Platter
~- Note:
The symbols, UL, CSA, SA, BS, UK, EU, AS and XX in the parts list
mean followings respectively.
UL ....................... Manufactured for USA market
(Underwriters Laboratories approved model.)
CSA .................... Manufactured for Canadian market.
SA ....................... Manufactured for South African market.
BS, UK ............... Manufactured for United Kingdom market.
EU ...................... Manufactured for European market.
AS ....................... Manufactured for Australian market.
XX ....................... Standard Version.
NON MARK ........ Common Parts.
