Sansui P D15 Service Manual

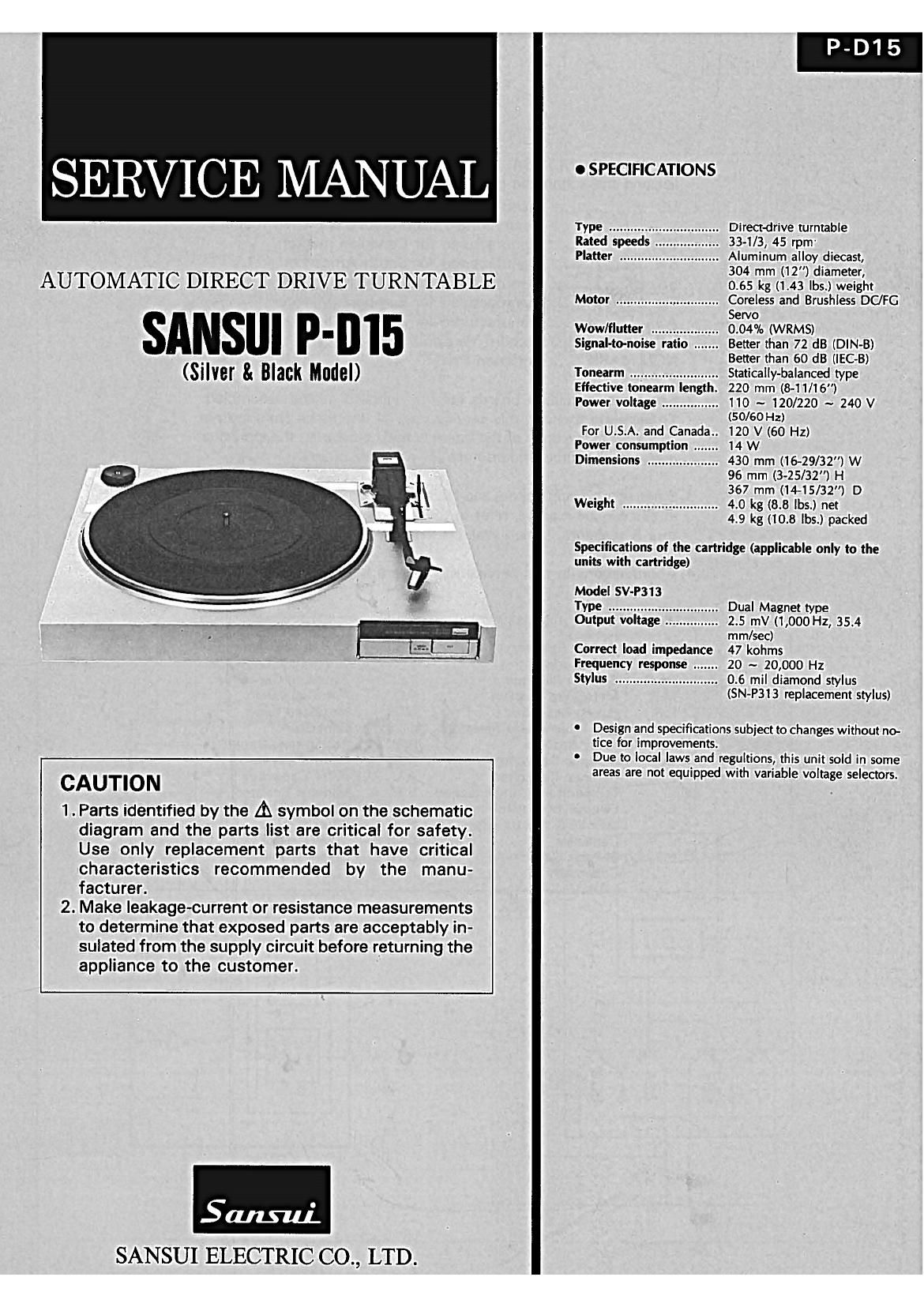

Page 1

SERVICE MANUAL 0 SPECIFICATIONS

Type ............................... Direct-drive turntable
Rated speeds 33-1/3, 45 rpm-
Platter ............................ Aluminum alloy diecast,
304 mm (12") diameter,
AUTOMATIC DIRECT DRIVE TURNTABLE 0.65 kg (1.43 lbs.) weight
Motor ................ _. ............ Coreless and Brushless DC/FG

Servo
- Wow/flutter ................... 0.04% (WRMS)
Signal-to-noise ratio ....... Better than 72 dB (DIN-B)

Better than 60 dB (lEC-B)

' Tonearm ......................... Statically-balanced type
(Silver & Blank Madel) Effective tonearm length. 220 mm (8-11/16")
Power voltage ................ 110 ~ 120/220 ~ 240 V
(50/60 Hz)
For U.S.A. and Canada. 120 V (60 Hz)
Power consumption ....... 14 W

Dimensions .................... 430 mm (16-29/32) W
96 mm (3-25/32) H
367 mm (14-15/32") D
Weight ........................... 4.0 kg (8.8 lbs.) net
4.9 kg (10.8 lbs.) packed

Specifications of the cartridge (applicable only to the
units with cartridge)

a Model SV-P313
*qu Type ............................... Dual Magnet type
5 Output voltage .. 2.5 mV (1,000 Hz, 35.4
mm/sec)
Correct load impedance 47 kohms
Frequency response ....... 20 ~ 20,000 Hz
Stylus ............................. 0.6 mil diamond stylus

(SN-P313 replacement stylus)

0 Design and specifications subject to changes without no-
tice for improvements.

' Due to local laws and regultions, this unit sold in some
areas are not equipped with variable voltage selectors.

CAUTION

1.Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical
characteristics recommended by the manu-
facturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

SANSUI ELECTRIC CO., LTD.

Page 2

CAUTION

1.The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.

UL ................. Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA ............... Manufactured for Canadian market.

SA ................. Manufactured for South African market.

BS, UK ........... Manufactured for United Kingdom market.

EU ................. Manufactured for European market.

AS ................. Manufactured for Australian market.

XX ................ Standrd Version.

NON MARK ..... Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock No's are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capaci-
tors & resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

-- Abbreviations List
C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper
N.|.R. : Non-lnflammable Resistor Capacitor
A.R. : Array Resistor P.C. : Polystyrene Capacitor
C.C. : Ceramic Capacitor G.C. : Gimmic Capacitor
C.T. : Ceramic Capacitor, A.C. : Array Capacitor
Temperature Compensation V.R. : Variable Resistor
E.C. : Electrolytic Capacitor S.V.R. : Semi Variable Resistor
E.L. : Low Leak Electrolytic SW. : Switch
Capacitor Chip R. : Chip Resistor
E.B. : Bi-Polar Electrolytic Chip C. : Chip Capacitor
Capacitor

Page 7

are numberr of Top View
are number of Bottom View.

9&0

*The" 69 ~ @ ~

* The ~
