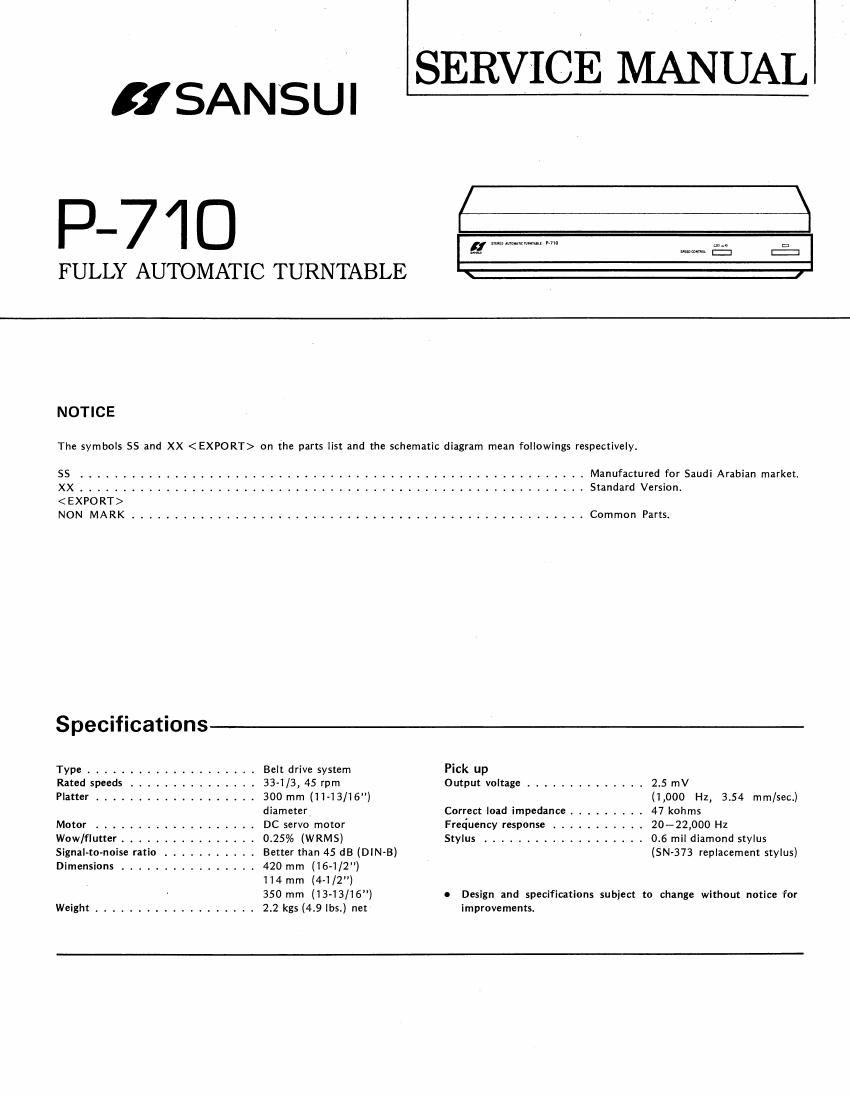

lSERVICE MANUAL
[ISANSUI
P-7ID
FULLY AUTOMATIC TURNTABLE
/ \
m MMWM m s... E.
g mm i=1 I2:
\ J
NOTICE
The symbols SS and XX
SS ........................................................... Manufactured for Saudi Arabian market.
XX ........................................................... Standard Version.
NON MARK ..................................................... Common Parts.
Specmcatlons
Type .................... Belt drive system Pick up
Rated speeds 33-1/3, 45 rpm Output voltage .............. 2.5 mV
Platter . . . . 300mm (ll-13/16) (1,000 Hz, 3.54 mm/sec.)
diameter Correct load impedance ......... 47 kohms
Motor ................... DC servo motor Freduency response ........... 20-22,000 Hz
Wow/flutter ................ 0.25% (WRMS) Stylus ................... 0.6 mil diamond stylus
Signal-to-noise ratio . . . . . . . . Better than 45 dB (DIN-B) (SN-373 replacement stylus)
Dimensions ................ 420 mm (16-1/2)
114 mm (4-1/2)
350 mm (13-13/16)
Weight ................... 2.2 kgs (4.9 lbs.) net
0 Design and specifications subject to change without notice for
improvements.
