Sansui HT 5002 Service Manual
This is the 26 pages manual for Sansui HT 5002 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui HT 5002 Service Manual (Ocr-read)

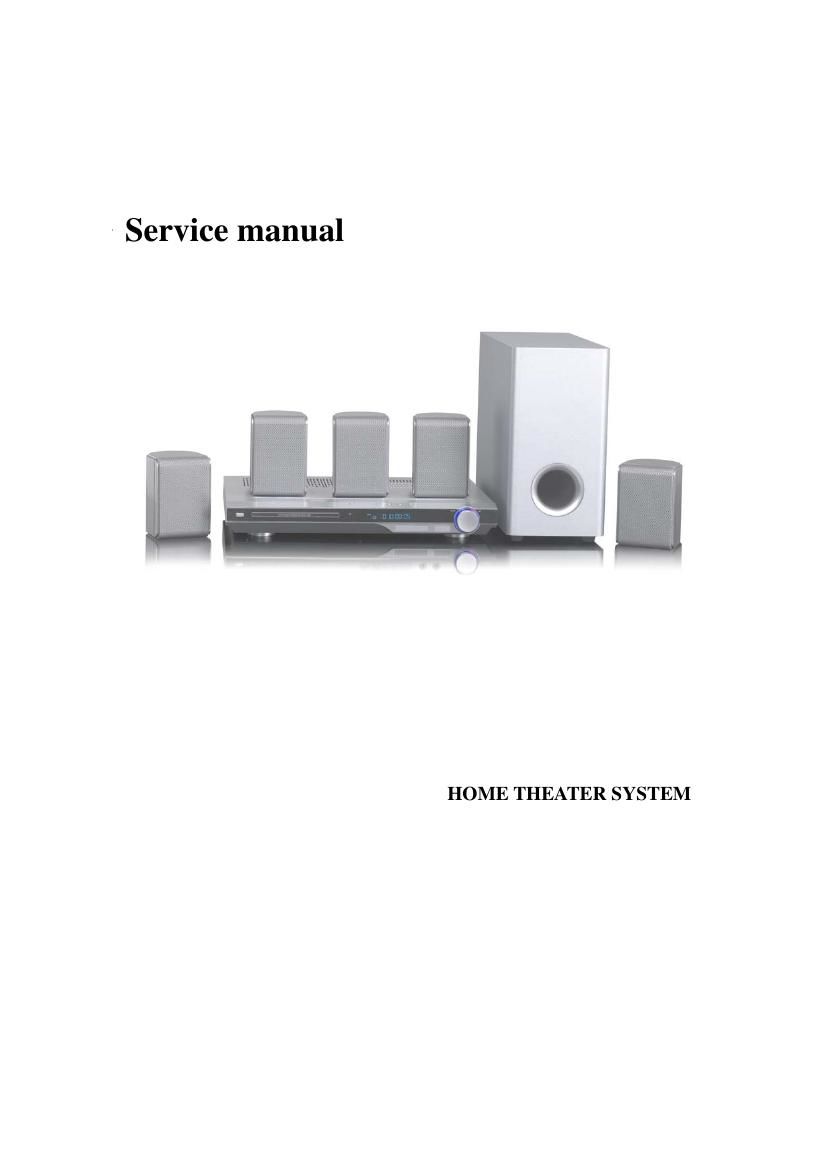

Page 1
- Service manual
HOME THEATER SYSTEM
Page 2
Model No: HT5002 Product code: 70150023281
Bill of Material Version: A Page: 1/11
Customer: KB Customer N0, RZ-9500AVD
Model DVD Amplifier Valid Date:
Series No Material No Part Name Specification Qty Material location
1 10513101811 door HT3101 1
2 10615101831 mirror ofdoor HT5101 l
3 20215302002 botom HT5302-WJ01-02 1
4 20315101811 topcover HT5101 1
5 20415002031 back panel RZ-9500AVD-MG06-01 1 HT5301-WJO3-02
6 209020306Wl screw 3*6PB 4 decoding board (4)
7 209020308Wl screw 3*8PB 9 1/0 jack (8) SCART (1 )
8 209060304Wl screw 3*4PWB 7 back panel (3 ) radiator(4)
9 209060306Wl screw 3*6PWB 10 front panel ( 3 ) top cover (7)
10 209060308Zl screw 3*8PWB 2
ll 209100308Wl screw 3*8PWM 2
12 21401310101 Front foot cusion 1718*11.8*615mm 2
l3 21401510101 Rear foot cusion (1320*315mm 2
14 22101310102 AM antenna HT3101 1
15 22101310103 FM antenna HT3101 1
16 221 14009001 Insulated PCS 140*90mm 1
l7 30420506001 Screen shield wire L:60mm-5Pin»2154mm-2.Omm 1
l8 30430912001 AV signal wire L:1.2M 1
19 30442405171 optical soft wire HTSSOZ-LJ 1 9.02 (L71 70111111151111) 1
20 30445200122 insert ware wire L:l 20mm»5Pin»210rnm l
2] 30445254091 insert ware wire L:90mm»5Pin»2154mm-2.0mm l
22 30446200062 insert ware wire L:60mm»6Pin»210mm-28# l
23 30451150007 power cord 1.5 (+0.39) M-7192mm/0175mm2 l
24 32200007151 battery 7% 2
