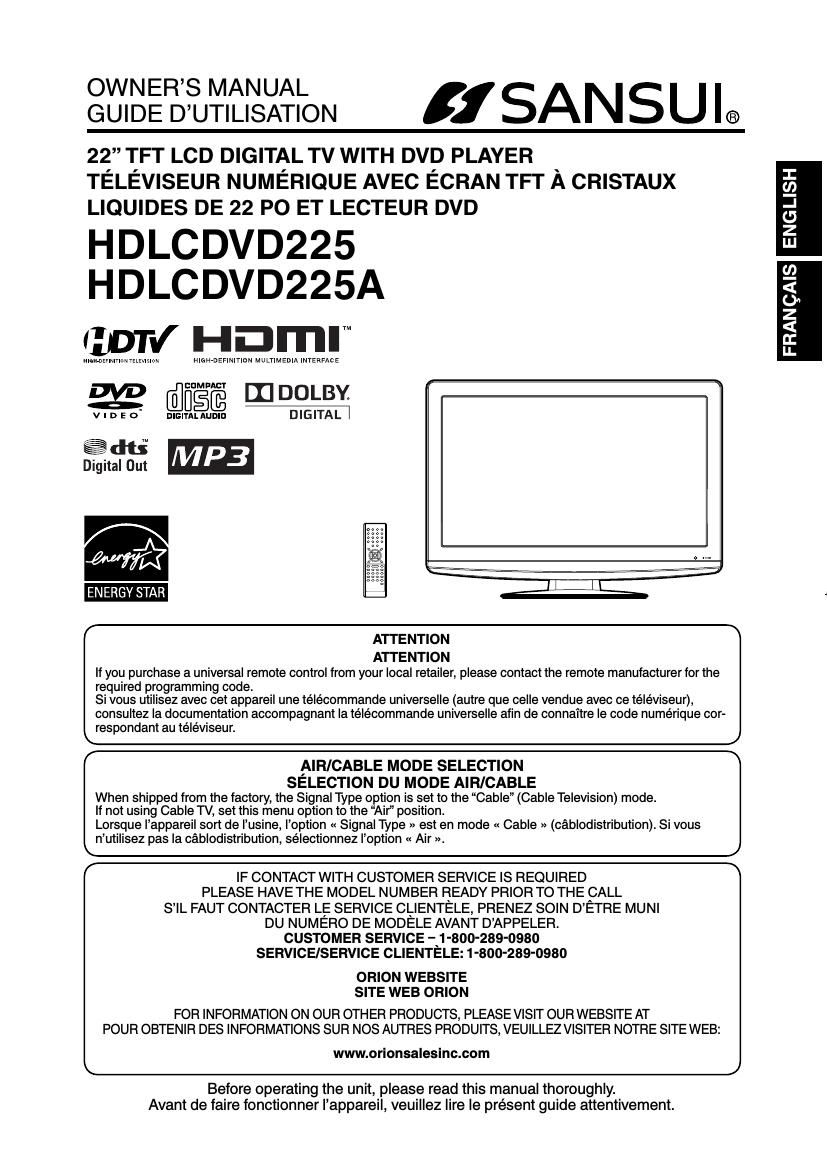

Sansui HD LCD VD225 Owners Manual
This is the 78 pages manual for Sansui HD LCD VD225 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui HD LCD VD225 Owners Manual (Ocr-read)
Page 1
2 CAUTION: THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE. USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO THE BEAM.Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J. Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. The lamp(s) within this product contain mercury. Disposal should be in compliance with local, state or federal laws. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules could void the users authority to operate this equipment. Record the model number and serial number. Model number Serial number ENGLISH CLASS 1 LASER PRODUCT
Page 2
3 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock. 18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit. 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. 20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition. 22) Keep your fingers clear of the disc slot as it is closing. It may cause injury. ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ANTENNA LEAD IN WIRE GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC NATIONAL ELECTRICAL CODE S2898A EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE ENGLISH
Page 17
18 Memorizing channels This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TVs memory. To use this TV with an antenna, set the Signal Type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode. Air/Cable selection 1 Select Channel, then press \b or ENTER. 2 Press or to select Auto Ch Memory, then press \b or ENTER. 3 Press or to select Signal Type. 4 Press or \b to select Air or Cable. Air - VHF/UHF channels Cable - CABLE TV channels Automatic Search Start Auto Ch MemorySignal Type Cable : Adjust : Select CABLE CHART The chart below is typical of many cable system channel allocations. NOTE: It may take a few seconds for a digital channel picture to appear on screen after being selected. Automatic search 1 Select Channel, then press \b or ENTER . 2 Press or to select Auto Ch Memory, then press \b or ENTER . 3 Press or to select Automatic Search, then press \b or ENTER. Auto Ch MemorySignal Type Cable Dig tal Channel Found 5 Analog Channel Found 7 Programming Now : Select ENTER:Cancel Automatic Search Stop - 4 The TV will begin memorizing all the channels available in your area. It may take from 15 minutes to 30 minutes to complete memorizing digital cable channels. Depending on the reception condition, a bar display may not advance for several minutes, please be patient. - NOTE: Memorizing channels is best accomplished during evening PRIMETIME hours, as more stations are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set that channel into memory. If you are unsure of the digital channels available in your area, you may visit www.antennaweb.org to receive a list based on your address or zip code. Should you require further assistance you may call our toll-free customer service line at 1-800-289-0980. New digital channels may be added to your area periodically, it is recommended to perform the Automatic Search procedure regularly. Adding Channel If you find a new digital channel unregistered, you can add the new channel into the channel memory. 1 Tune in the new channel. 2 Select Channel, then press \b or ENTER . 3 Press or to select Add/Delete, then press \b or ENTER. Add/Delete >> Clear All >> Add/DeleteAdding Channel>> : SelectENTER:Set 4 Press or to select Adding Channel, then press \b or ENTER. The new channel will be added into the channel memory. Add/Delete channel You can select the channel that you want to skip. 1 Select Channel, then press \b or ENTER . 2 Press or to select Add/Delete, then press \b or ENTER. 3 Press or to select Add/Delete, then press \b or ENTER. 4 Press or to select the channel that you want to skip. CH Signal 2 Analog 3 Analog Add 3 001 Digital Delete 3 002 Digital Add 4 Analog DeleteAdd/Delete : Adjust Add : Select 5 Press or \b to select Add or Delete, whichever function you want to perform. 6 Repeat steps 4 - 5 for other channels you want to add or delete. - - -
Page 30
31 ENGLISH Language code list Enter the appropriate code number for the initial settings Menu, Subtitle and/or Audio (see page 29). Language Name Code Language Name Code Language Name Code Language Name Code Abkhazian 1112 Fiji 1620 Lingala 2224 Singhalese 2919 Afar 1111 Finnish 1619 Lithuanian 2230 Slovak 2921 Afrikaans 1116 French 1628 Macedonian 2321 Slovenian 2922 Albanian 2927 Frisian 1635 Malagasy 2317 Somali 2925 Amharic 1123 Galician 1722 Malay 2329 Spanish 1529 Arabic 1128 Georgian 2111 Malayalam 2322 Sundanese 2931 Armenian 1835 German 1415 Maltese 2330 Swahili 2933 Assamese 1129 Greek 1522 Maori 2319 Swedish 2932 Aymara 1135 Greenlandic 2122 Marathi 2328 Tagalog 3022 Azerbaijani 1136 Guarani 1724 Moldavian 2325 Tajik 3017 Bashkir 1211 Gujarati 1731 Mongolian 2324 Tamil 3011 Basque 1531 Hausa 1811 Nauru 2411 Tatar 3030 Bengali; Bangla 1224 Hebrew 1933 Nepali 2415 Telugu 3015 Bhutani 1436 Hindi 1819 Norwegian 2425 Thai 3018 Bihari 1218 Hungarian 1831 Oriya 2528 Tibetan 1225 Breton 1228 Icelandic 1929 Panjabi 2611 Tigrinya 3019 Bulgarian 1217 Indonesian 1924 Pashto, Pushto 2629 Tonga 3025 Burmese 2335 Interlingua 1911 Persian 1611 Turkish 3028 Byelorussian 1215 Irish 1711 Polish 2622 Turkmen 3021 Cambodian 2123 Italian 1930 Portuguese 2630 Twi 3033 Catalan 1311 Japanese 2011 Quechua 2731 Ukrainian 3121 Chinese 3618 Javanese 2033 Rhaeto-Romance 2823 Urdu 3128 Corsican 1325 Kannada 2124 Romanian 2825 Uzbek 3136 Croatian 1828 Kashmiri 2129 Russian 2831 Vietnamese 3219 Czech 1329 Kazakh 2121 Samoan 2923 Volapük 3225 Danish 1411 Kirghiz 2135 Sanskrit 2911 Welsh 1335 Dutch 2422 Korean 2125 Scots Gaelic 1714 Wolof 3325 English 1524 Kurdish 2131 Serbian 2928 Xhosa 3418 Esperanto 1525 Laothian 2225 Serbo-Croatian 2918 Yiddish 2019 Estonian 1530 Latin 2211 Shona 2924 Yoruba 3525 Faroese 1625 Latvian, Lettish 2232 Sindhi 2914 Zulu 3631
Page 72
35 FRANÇAIS Raccordement dun dispositif HDMI ou DVI à lappareilLentrée HDMI reçoit un signal audio numérique et un signal vidéo non compressé dun dispositif HDMI ou un signal vidéo numérique non compressé dun dispositif DVI. Si vous branchez un dispositif DVI avec un câble adaptateur HDMI-DVI, seul un signal vidéo est transféré. Des câbles audio analogiques séparés sont nécessaires. Raccordement à un autre appareil (suite) Utilisation dun amplificateur AV à son ambiophonique numérique intégré Si vous utilisez un amplificateur à son ambiophonique numérique intégré, vous pouvez profiter de divers formats audio, notamment le Dolby numérique ambiophonique (Dolby Digital Surround), qui vous donne exactement le même son quau cinéma. Raccordez un amplificateur AV intégrant un décodeur Dolby numérique (Dolby Digital), DTS ou MPEG, etc., comme dans lillustration cidessous. Arrière de lappareil Câble adaptateur HDMI-DVI (connecteur HDMI de type A) (non compris) Câble audio (non compris) Câble HDMI (connecteur de type A) (non compris)Vers sortie DVI audio Vers sortie HDMIDispositif HDMIDispositif DVI Câble coaxial numérique (non compris) Amplificateur AV à décodeur ambiophonique numérique intégré (voir ci-dessus)Enceinte centrale Sortie audio numérique coaxiale Vers lentrée numérique coaxiale Arrière de lappareil HP avant (G)HP avant (D) Extrêmes graves HP ambiopho- nique (G) HP ambio- phonique (D) TV/DVD REMARQUE: Lors du visionnement démissions numériques, il ny aura pas de fonctionnement en conjugaison avec le son DTS ou MPEG. Aucun son nest émis si un amplificateur AV avec décodeur DTS ou MPEG intégré est connecté. -Vers lentrée HDMI IN REMARQUE: Lorsque vous employez HDMI pour raccorder vos dispositifs HDMI ou DVI, vous devez sélectionner la source dentrée audio correspondante (HDMI ou DVI) à lécran de menu (reportezvous à la page 17). Sinon, vous verrez limage, mais nentendrez pas le son. Si vous raccordez un appareil externe (décodeur de câblodistribution, démodulateur, etc.) au téléviseur ACL au moyen dun câble HDMI ou DVI-HDMI, limage ne saffiche pas si la résolution de sortie de lappareil est réglée sur 480i. Pour recevoir limage, vous devez changer la résolution de sortie sur la composante externe. Si vous avez besoin dexplications supplémentaires, veuillez contacter le fabricant de la composante externe. - -Vers lentrée PC/HDMI AUDIO IN
