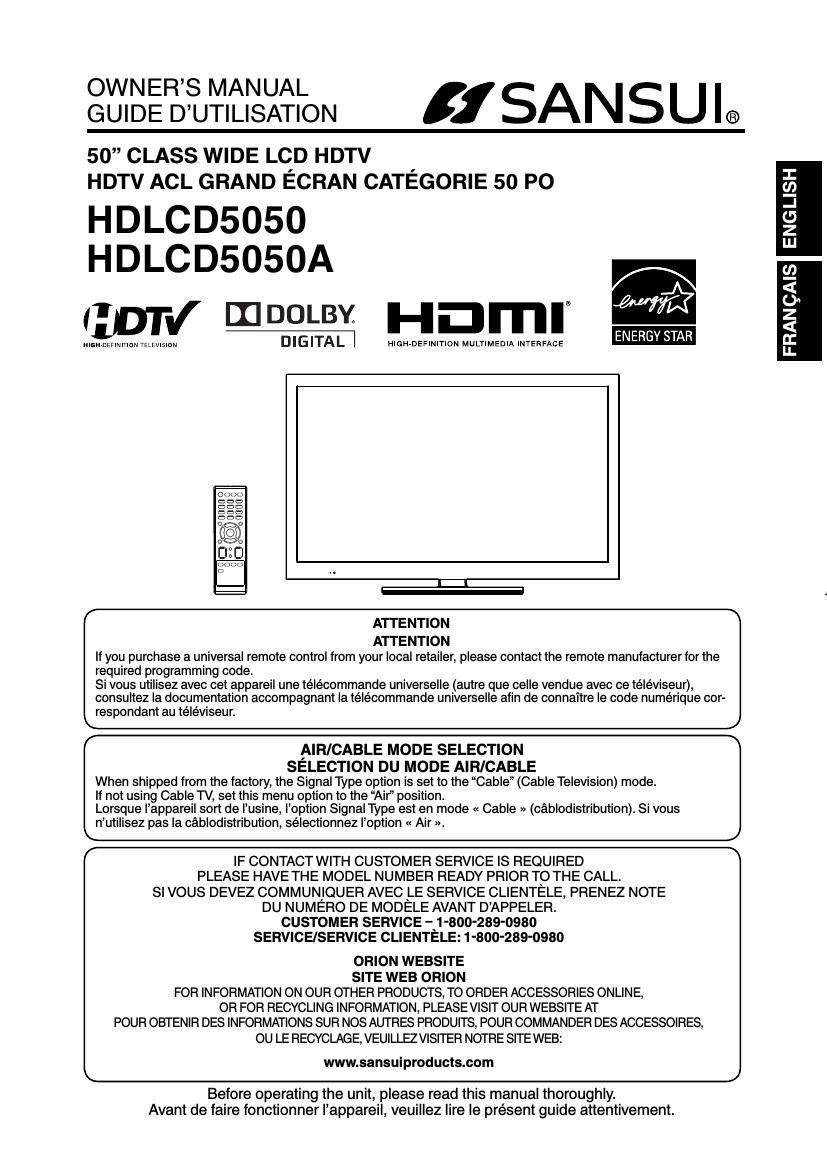

Sansui HD LCD 5050 Owners Manual
This is the 27 pages manual for Sansui HD LCD 5050 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui HD LCD 5050 Owners Manual (Ocr-read)
Page 1
EN2 ENGLISH Location of the required marking The rating sheet and the safety caution are on the rear of the unit. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES. CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. Record the model number and serial number. Model number Serial number The lamp(s) within this product contain mercury. Disposal should be in compliance with local, state or federal laws. FCC Declaration of Conformity Compliance Statement (Part 15): The Sansui HDLCD5050 and HDLCD5050A, LCD HDTV combination complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The party responsible for compliance to these rules is: ORION AMERICA,INC. 1105 SOUTH MAIN STREET PRINCETON, INDIANA 47670,U.S.A Ph: 1-800-289-0980
Page 2
3EN 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock. 18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit. 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. ANTENNA DISCHARGE UNIT (NEC SECTION 810 20)ANTENNA LEAD IN WIRE GROUNDING CONDUCTORS (NEC SECTION 810 21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC NATIONAL ELECTRICAL CODE S2898A EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE IMPORTANT SAFETY INSTRUCTIONS ENGLISH
Page 16
17EN Convenience functions You can change the default settings by pressing the MENU button on your remote, then select the one of the icons at the left of the menu - follow the On-Screen prompts to set your preferences. Icon Selected Items Setup hint Picture Picture PreferenceSports Bright and dynamic picture (factory-set) Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Memory Your personal preferences (set by you; see Picture Setting) Picture Setting Brightness /Contrast / Sharpness / Color / TintYou can adjust the picture quality to your preference. Color Temperature Cool (Bluish) / Standard (Neutral) / Warm (Reddish) DBC On/Eco/Off Use this feature to change the Black level automatically according to the brightness of an image. The Black level will become dark in a dark scene. If Eco is selected, the power consumption is reduced and Backlight will be skipped. Backlight* 2 The Backlight feature adjusts the screen brightness for improved picture clarity. Picture Size See page 22. Film Mode On/Off A smoother motion may be obtained by setting the Film Mode to On (480i only). PC Setting Hor Position / Ver Position To adjust the horizontal / vertical position of the image on the PC monitor screen. Each video standard will require a different value for this setting. Clock To minimize any vertical bars or stripes visible on the screen background. Phase This must be adjusted after the frequency has been set optimize picture quality. Auto Adjust To adjust the all PC settings automatically. DNR On/OffDNR (Digital Noise Reduction) can reduce the roughness of the picture. Audio Equalizer Mode Standard/Music/Movie/ News/Memory/FlatYou can adjust the Equalizer Mode to your preference. Audio Setting Bass/Treble You can adjust the sound quality to your preference. (Flat mode only) Equalizer Setting100Hz/250Hz/500Hz/1kHz/2kHz/4kHz/10kHz (Not available in Flat mode) Balance You can adjust the sound quality to your preference. MTS Stereo / SAP / Mono The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information. When the TV receives a stereo or SAP broadcast, the word Stereo or SAP displays on-screen every time you press DISPLAY. Surround On/Off The dynamic presence and sound created offers a thoroughly enjoyable listening experience. Auto Volume On/Off Volume level can be adjusted automatically by the sound level. Audio Language When two or more audio languages are included in a digital signal, you can select one of the audio languages. (This function is available only for digital broadcast.) HDMI1 Audio HDMI When you connect the HDMI device to the TV, select this setting. DVI When you connect the DVI device to the TV with analog audio cords, select this setting. Speakers On/Off Use this feature to turn the TV speakers off when you connect an audio system. Channel Add / Delete See page 18. DTV Signal See page 19. Auto Ch Memory See page 18. Ch Label See page 19. Lock See page 20. Setup Closed Caption See page 21. Language You can choose from three different languages (English, Français (French) and Español (Spanish)) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options. Video Label See page 19. On Timer Off / 0h30m / 1h00m / 1h30m / 2h00m / 3h00m12h00mYou can set the On Timer to automatically turn on the TV. To cancel the On Timer select Off . Auto Shut Off* 1 On/Off If the Auto Shut Off feature is On, a station being viewed stops broadcasting and the TV is not operated, the TV will automatically shut itself off after 15 minutes. Auto Setup See page 15. PC Standby On/Off In PC mode, if no signal is received or no operation performed for 1 minute, the TV will turn to standby mode automatically (LED light will flash red). When an input signal is received or an operation performed on the PC, the TV will return to the On mode. Reset* 2 The Reset function returns your Picture/Audio settings to the factory settings. Picture Size, MTS , Audio Language, HDMI1 Audio and Speakers cannot be reset by this function. NOTE:*1 If there is no input signal in the PC mode, after 1 minute Auto Shut Off will be activated. In PC mode the PC Standby setting takes precedence. *2The device may not conform to the Energy Star standard after Reset is performed or the Backlight is adjusted.
