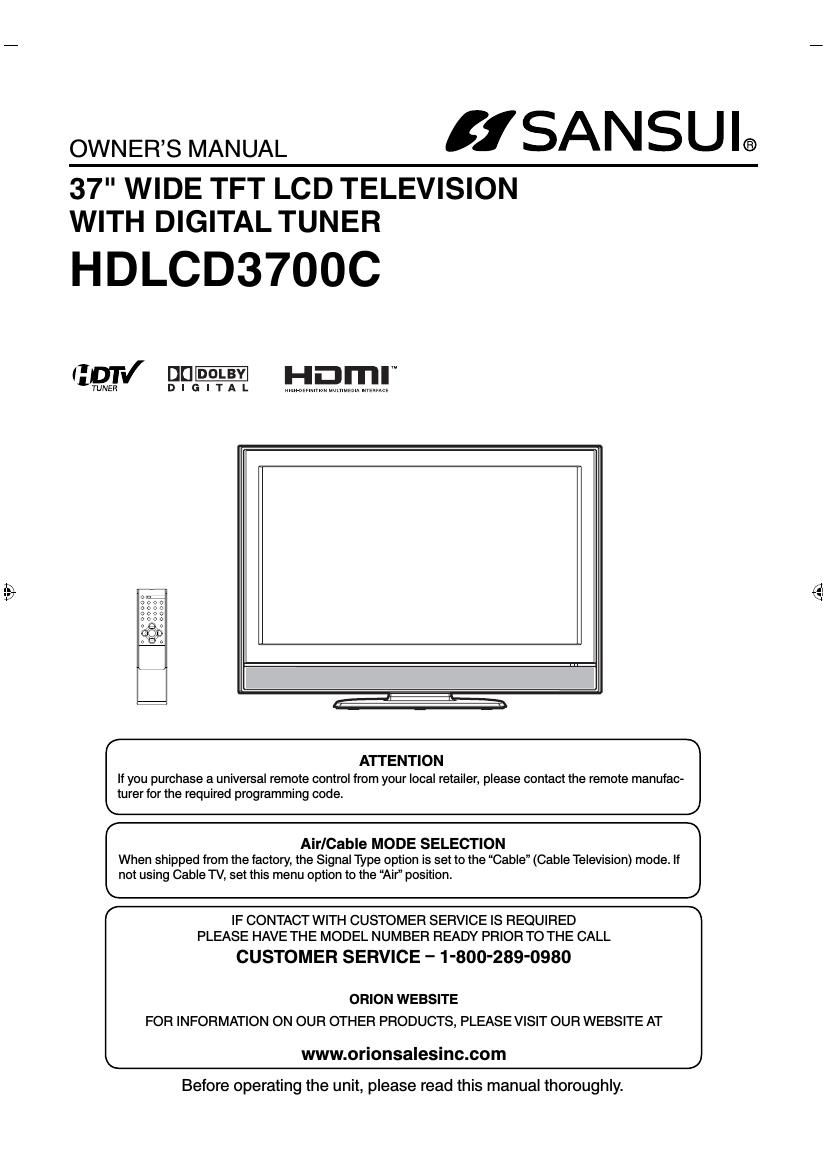

Sansui HD LCD 3700C Owners Manual
This is the 29 pages manual for Sansui HD LCD 3700C Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Sansui HD LCD 3700C Owners Manual (Ocr-read)
Page 1
2 Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. The lamp(s) within this product contain mercury. Disposal should be in compliance with local, state or federal laws. Record the model number and serial number. Model number Serial number
Page 2
3 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with a clean dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician to replace the obsolete receptacle. 10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug damage, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock. 18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit. S3126A PORTABLE CART WARNING (symbol provided by RETAC)
Page 13
14 Connections to other equipment To connect the LCD TV to a DTV receiver/settop box If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a component video cord. To connect the LCD TV to an HDMI or a DVI device The HDMI input receives digital audio and uncompressed video from an HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with an HDMI-to-DVI adapter cable, it transfers only the video signal. Separate analog audio cords are required. NOTE: When you connect a DVI device, you must connect only with HDMI1. When using HDMI1 to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or DVI) on the menu screen (see Selecting the HDMI audio input source on page 26). Otherwise you will only see the image with no sound. If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output resolution on the external component. Should you require further instruction, please contact the manufacturer of the external component. - - Y P B PR To Component OUT To Audio OUT Audio cord (not supplied) Left side of the LCD TV To COMPONENT INTo AV2 AUDIO (L/R) IN HDMI - to - DVI adapter cable (HDMI type A connector) (not supplied) Audio cord (not supplied) HDMI cable (type A connector) (not supplied) To DVI output To HDMI out or Left side of the LCD TV HDMI device DVI device To HDMI 1To HDMI 2 (or 1) To PC/HDMI 1 AUDIO IN Component video cord (not supplied)
Page 21
22 4 Press or to select Analog Caption or Digital Caption. When you select Analog Caption, you can choose C1, C2, C3, C4, T1, T2, T3 and T4. When you select Digital Caption, you can choose from CS1, CS2, CS3, CS4, CS5 and CS6. 5 Press or to select the desired Closed Caption mode for both Digital and Analog Caption. 6 Press or to select CC Priority, then press or to select Digital CC or Analog CC. NOTE: Depending on the broadcast signal, some Analog Captions will function with a Digital broadcast signal. This step prevent that two kind of captions are overlapping. - 7 Press EXIT to return to the normal screen. NOTE: If the program or video you selected is not closed- captioned, no captions will display on-screen. If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the CC Setting to Off . When selecting Closed Captions, the captioning will be delayed approx. 10 seconds. If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode. Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing. When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with Closed Captions. Some cable systems and copy protection systems may interfere with the Closed Captioned signal. If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna. CC advanced When you have selected Custom as the display method, you can adjust the various setting listed below as follows: This feature is designed to customize Digital Captions only. 1 Press MENU. The menu screen will appear. 2 Press or to select Setup, then press or ENTER. - - - - - - - - 3 Press or to select Closed Caption, then press or ENTER. The Closed Caption menu will appear. 4 Press or to select Digital CC Preset, then press or to select Custom. 5 Press or to select CC Advanced, then press or ENTER. The CC Advanced menu will appear. 6 Press or to select the desired item, then press or to change the setting. CC AdvancedText Size Auto Text Type Auto Text Edge Auto Text Color Auto Text Opac ty Auto Background Color Auto Background Opacity Auto : Adjust : Select You can select from among the following items and parameters. Text Size: Auto, Small, Standard, Large Text Type: Auto, Style1, Style2, Style3, Style4, Style5, Style6, Style7 Text Edge: Auto, None, Raised, Depressed, Uniform, Left Shadow, Right Shadow Text Color: Auto, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan Text Opacity: Auto, Solid, Transparent, Translucent, Flashing Background Color: Auto, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan Background Opacity: Auto, Solid, Transparent, Translucent, Flashing 7 Press EXIT to return to the normal screen. NOTE: Do not set the Closed Caption Text Color and Background Color as the same color or you will not be able to see the text. Do not set both the Text Opacity and the Background Opacity to Transparent or you will not be able to see the text. Adjusting the picture preference You can select four picture modes-Sports, Standard, Movie and Memory-as described in the following table: 1 Press MENU. Then press or to select Picture, then press or ENTER. 2 Press or to select Picture Preference. 3 Press or to select a mode you want to adjust. On PC Setting >> DNR On PictureP cture Setting >>P cture Preference Sports P cture Size >> Film Mode : Adjust : Select - -
