Sansui HD LCD 3700 Owners Manual

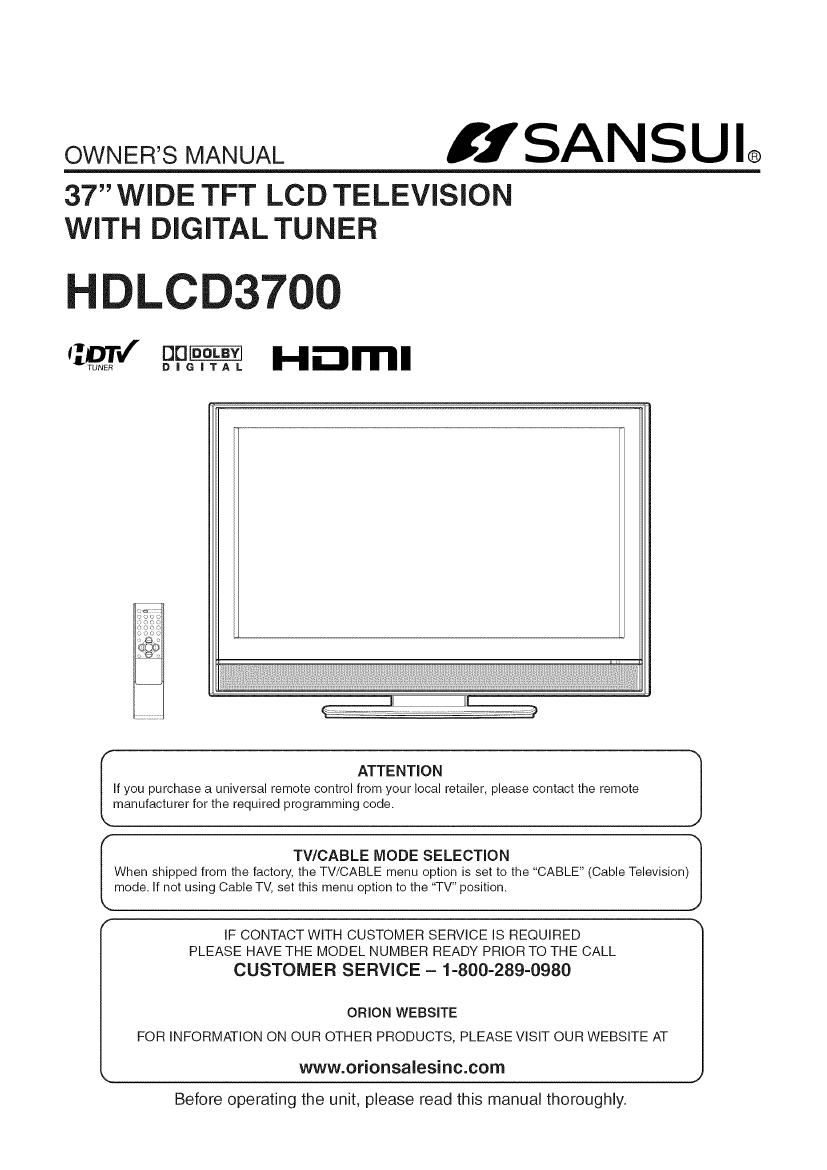

Page 1

OWNERS MANUAL 1SANSU |®

37WIDE TFT LCD TELEVISION
WITH DIGITAL TUNER

H DLC D3700

GDT/ Du- HUI-I'll

TUNER DIGITAL

( \
ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote

manufacturer for the required programming code,

\ J

r \
TV/CABLE MODE SELECTION

When shipped from the factory, the TV/CABLE menu option is set to the CABLE (Cable Television)

mode. If not using Cable TV, set this menu option to the TV" position

\ J
( \
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

CUSTOMER SERVICE - 1-800-289-0980

ORION WEBSITE
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT

\ ww.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

Page 2

The lightning flash with arrowhead

symbol, within an equilateral triangle
CAUTION is intended to alert the user to the
RISK OF ELECTRIC SHOCK presence of uninsulated dangerous
DO NOT OPEN voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.

CAUTION. TO REDUCE THE RISK OF ELECTRIC The exclamation point within an
SHOCK, DO NOT REMOVE COVER equilateral triangle is intended to alert
(OR BACK). NO USER-SERVICEABLE the user to the presence of important
PARTS INSIDE. REFER SERVICING TO Warming and mammme (serVic'
ing) instructions in the literature
QUALIFIED SERVICE PERSONNEL. accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIs APPLIANCE TO RAIN

OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSEFITED TO PREVENT BLADE EXPOSURE.

FCC Declaration of Conformity Compliance Statement (Part 15):

WARNING:

CAUTION:

The Sansui HDLCD3700, WIDE TFT LCD TELEVISION WITH DIGITAL TUNER complies with
Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

The party responsible for compliance to these rules is:

ORION SALES, INC

HIGHWAY 41 ORION PLACE, PRINCE, PRINCETON, INDIANA 47670

Ph: 1-800-289-0980

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the partly responsible for compliance with
the FCC Rules could void the user's authority to operate this equipment.

Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.

Page 4

IMPORTANT SAFETY INSTRUCTIONS

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code. ANSI/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure. grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes. and requirements for
the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE

ANTENNA LEAD
IN WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT

(NEG SECTION 810-20)

' GROUNDING CONDUCTORS
(NEC SECTION 310-21)

ELECTRIC SERVICE
EQUIPMENT

p
4% GROUND CLAMPS

-' POWER SERVICE GROUNDING
NEc-NATIONAL ELECTRICAL CODE ELECTRODE SYSTEM

82898A (NEC ART 250, PART H)

20) When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.

23) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.

24) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker
overheating and fire.

25) This reminder is provided to call the cable TV system installers attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and. in particular, specifies thatthe cable ground shall be con-
nected to the grounding system of the building, as close to the point of cable entry as practical.

Page 20

TV operation

1 To turn on the TV, press POWER.

2 Adjust the volume level by
pressing VOL + or - .The volume
level will be indicated on the
screen by white bars. As the
volume level increases, so do the mm 25
number of bars. If the volume --""""_
decreases, the number of white
bars also decreases.

3 Set the TV/CABLE menu
option to the appropriate
position (see page 23).

4 Press the Direct Channel
Selection (0-9, -) buttons to select
the channel.

T0 SELECT ANALOG CHANNELS me. E";

1-9: Press 0 twice, then 1-9 as

needed. Example, to selectchannel 2, press 0,0, 2.

10-99: Press 0, then the remaining 2 digits. Example, to

select channel 12, press 0,1,2.
100-125: Press the 3 digits in order. Example, to select
channel 120, press 1, 2, O.

T0 SELECT DIGITAL CHANNELS

Press the first 3 digits, then press the - button, followed by the
remaining 3 digits.

Example, to select channel 015-001, press 0, 1, 5, -, 0, 0, 1.

' If a channel is selected with only audio content, AUDIO
ONLY" will be displayed on the screen.

' If a channel is selected with a weak digital signal, DIGITAL
CHANNEL SIGNAL STRENGTH IS LOW" will be displayed
on the screen.

- If a channel is selected to which you have not subscribed,
DIGITAL CHANNEL IS SCRAMBLED will be displayed on
the screen.

VHF/UHF/CABLE CHANNELS

TV CABLE
VHF VHF
2-13 2-13
UHF STD/HRC/IRC
14-69 14-36 (A) (W)
37-59 (AA) (WW)
. 60-85 (AAA) (ZZZ)
NOTES . . 86-94 (86) (94)
' If a channel With no broadcast lS 95.99 (A-l (1)
selected, the sound will automatically 100-125 (100)( 125)
be muted. 01 (5 A)

' It may take a few seconds for a digital
channel picture to appear on screen
after being selected.

20

Page 37

Selecting the HDMI audio input source/
Selecting the audio language

Selecting the HDMI audio input source
When you use HDMI AUDIO IN jacks with HDMI or DVI device,
you must select HDMI audio input source from HDMI" or DVI.

1 Press MENU.Then press 4 or
b to select .D (AUDIO) menu.

2 Press A or V to select HDMI",
then press 4 or b to select
HDMI" or DVI.

HDMI: When you connect the
HDMI device to the TV,
select this setting.

DVI: When you connect the

srznzo
25
LE 25
E n
No on:

o :ADJUSI

asssr »

@zsztzcr eznmusr

DVI device to the TV with analog audio cords, select

this setting.

3 Press EXIT to return to the normal screen.

Selecting the audio language
When two or more audio languages are included in a digital
signal, you can select one of the audio language.

1 Press MENU, then press 4 or b
to select J3. (AUDIO) menu.

2 Press A or V to select AUDIO
LANGUAGE".
Then press 4 or V to display the
AUDIO LANGUAGE menu.

3 Press A / V or Number button
(0-7) to select your desired
language, then press ENTER.

SIERED
25

25

an N E n
sunnouuu 0;;

AV -sELECI 4» «must

u sachr

4b.ADJUST

AUDIO LANGUAGE

[n.n . sszcr
szr zurzn

4 Press EXIT to return to the normal screen.

37

Page 46

IlSANSUI®

LIMITED WARRANTY
37 WIDE LCD TELEVISION

ORION warrants this product to be free from manufacturing defects in material and workmanship under
normal use and conditions for a period of 1 year from date of original purchase in the United States.

Should service be necessary under this warranty for any reason due to a manufacturing defect or
malfunction during the first 12 months from date of original purchase, ORION will provide in-home repair service
by an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to
manufacturing defect In material and workmanship within one year from date of original purchase we will
replace the defective part, provided the defect or malfunction Is verified along with dated proof of purchase.

There are ORION authorized Independent Service Centers located throughout the country. For the one
nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.0rionsalesinc.com. ORION will not
be liable for damages incurred in shipment of the unit. If there are no ORION authorized Independent Service
Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is:

(a) Damaged through negligence, misuse, abuse, or accident.

(b) Used in a commercial application or rentals.

(c) Modified or repaired by anyone other than an Independent Service Center authorized by ORION to effect
warranty repairs to the class of product or by the ORION Factory Service Center.

(d) Damaged because it is improperly connected to the equipment of other manufacturers.

This warranty does not cover:

(a) Damage to equipment not properly connected to the product.

(b) Costs incurred in the shipping of the product to an ORION authorized Independent Service Center or
ORION Facton/ Service Center.

(0) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow
operating instructions provided with the product.

(d) Ordinary adjustments to the product which can be performed by customer as outlined in the owner's
manual.

(e) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER
AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A
PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF
ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL
APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE
PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH
THE USE OF THIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM
STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR
EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO
YOU

ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450

46
