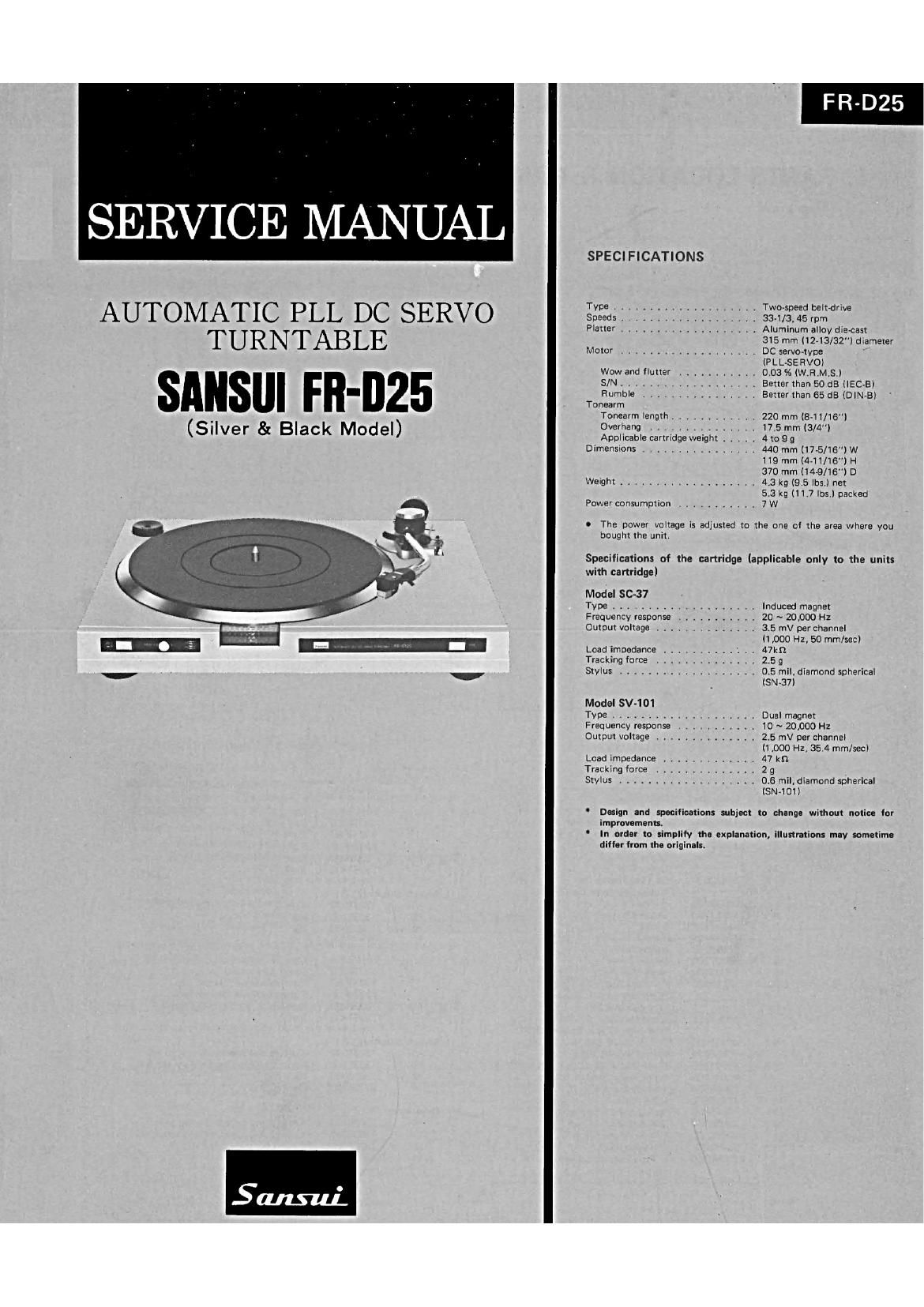

SERVICE MANUAL

AUTOMATIC PLL DC SERVO
TURNTABLE

SAHSUI FB-IJZE

(Silver & Black Model)

FR-D25

SPECIFICATIONS
Type ................... Two-speed beltdrive
Speeds ................... 33-13, 45 rpm
Planer ................... Aluminum alloy diacast
315 mm l12»13/32"l diameter
Motor ................... DC servo-type '
(PLL-SERVO)
Wow and flutter ........... 0.03 % (W.FI,M,S.)
SIN ................... Barter than 50 dB (IEC-Bl
Rumble ................ Better than 65 dB (DIN Tonearm
Tonearm length ............ 220 mm l8-11/16"1
Overhang ............... 17.5 mm (3/4")
Applicable cartridge weight ..... 4 to 9 9
Dimensions ................ 440 mm (17-5/16) W
119 mm (4-11/16) H
370 mm (14-9/16) D
Weight ................... 43 kg i9.5 lbs.) net
5.3 kg (11.7 Ist packed
Power consumption ........... 7 W

o The power voltage is adiusred to the one 01 the area where you
bought 1he unil.

Specifications of the cartridge (applicable only 10 the units
with cartridge]

Model 36-37

Tvpe .................... Induced magnet

Frequency response ........... 20 ~ 20,000 Hz

Output voltage .............. 3.5 rnV per channel
11,000 Hz, 50 moi/sec)

Load impedance .......... '. . , 47km

Tracking force .............. 2,5 g

SIyius ................... 0.5 mil, diamond spherical
(8N8?)

Model SV-101

Tvpe .................... Dual magnet

Frequency response ........... 10 ~ 20,000 HZ

Output voltage .............. 2.5 mV per channel
11,000 Hz, 3514 mm/secl

Load impedance ............. 47 kn

Tracking force .............. 2 g

Stylus ............... . . . 0.6 mil, diamond spherical
(SN-101)

' Design and specificaxions subject to change wiihout notice for
improvemenis.

' In order to simplify the explanation, illustrations may sometime
differ from the originals.

Page 2

FR-D25

1. PARTS LOCATION & PARTS LIST

1-1. Top View

a] (Auto Return Adiustment Screw)

$3050

1900

Parts List
Part: No. Stock No. Description Pars No, Stock No. Description
1 13012300 45 rpm. Adaptor (Al 24 13005300 Arm Rest
2 00449600 PSB Type Screw M4 x 10 25 _ 13013100 Fook,arm rest
3 13017200 Main Gear Assy 26 13013200 Flat Fillister Screw M13 x 8
3-1 - Lower Trip 27 00454500 8 Type Tapping Screw M3 x 6
3-2 -- Upper Trip 28 13013500 Lifter Knob
33 51822900 CS Type Washer 3d: 29 13039100 Lifter Lever Ass'y
4 - Polyslider Washer 6o x 94 x 1.0 30 13039200 Lifter Lever Plate
5 00489400 E Fling 5o 31 00457600 WT Type Tapping Screw M3 x 10
6 13051700 Center Spindle 32 13043200 I.F.C. Assv
7 13017500 S Clip 33 13069600 Main Weight Ass'v
8 13017400 Torsion Spring 34 50624800 Cup
9 13025100 Reject Arm
13 13037700 Strobo Cover 70122210 Dust Cover Ass'y
1 5 13043100 Head Shell Ass'y 13044600 Hinge. dust cover
1 6 43102200 Cartridge Ass'y. SC-37 13036600 Turntable Sheet, platter
(Cartridge, Stylus, Screw) 13036700 Turntable Sheet, platter (UL)
(XX,EU,AS,BS) 13036100 Platter
13010800 Cartridge Ass'y, SV-101 13037400 Belt
lCartridge.Sty|us, Screw) (UL)
164 49401100 Stylus, 5N3? (XX, EU, AS, 55) Silver Model Onlv.
13010900 Stylus, SN-101 (UL) 10 13037000 Knob, speed selector Br stop Mitch
16-2 51921500 Screw Ass'y, SC-37 (XX, EU, AS, BS) 11 13037100 Knob, 33/45 rpm. pitch control VR
51921500 Screw Assy,SV-101 (UL) 12 13035000 Plate (L)
17 13069500 Tone Arm Assy 14 13034900 Plate (R)
18 13038900 Lifter Plate
19 1m35600 Spring, 53¢ x 10 mm (C) Black Model Only.
20 13035700 Spring, 9.3:» x 14 mm (E) 10 13039700 Knob, speed selector 8: stop Mitch
21 00466500 P Type Washer 30) x 10 1 1 13037200 Knob, 33/45 r.p.m, pitch control VR
22 13011600 Elevation Chip 12 13035200 Plate (L)
23 13038000 8 Type Tapping Screw M3 x 16 14 13035100 Plate (Fl)

(Type 2) Yellow
