Sansui FR 4060 Brochure

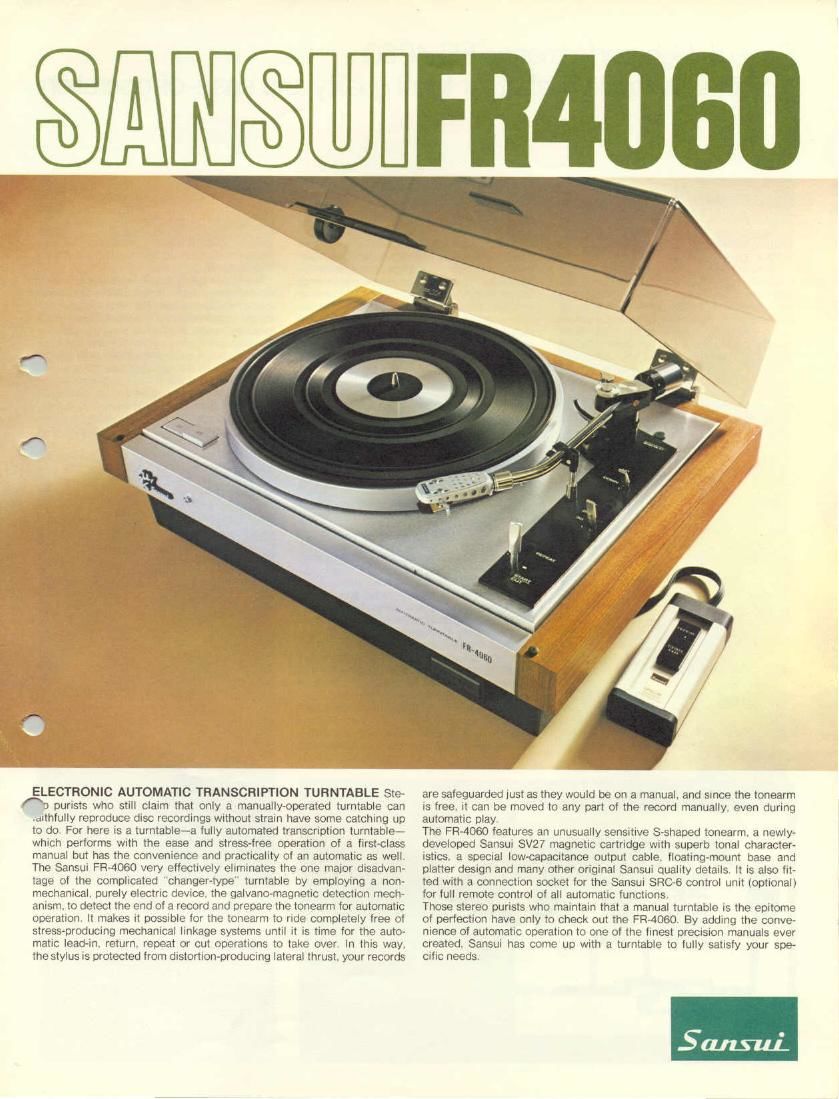

Page 1

ELECTRONIC AUTOMATIC TRANSCRIPTION TURNTABLE Ste

9 purlsts who SIIII clalm that only a manuallyoperated turntable can
.atthfully reproduce dlSC recordlngs wIthout straln have some catching up
to do For here l5 3 turntable~a fully automated transcnptlon turntable-
which performs wuth the ease and stress-tree operation of a hrstclass
manual but has the convenience and practtcallty 0' an automatlc as well
The Sansur FRAOGO very effectlvely eliminates the one major disadvan-
tage of the compltcated changer-type turntable by emplbylng a non»
mechanical, purely electric devxce the galvano-magnetlc detection mechv
anrsm. to detect the end ol a record and prepare the tonearm lor automatic
operatron It makes rt possnble lor the tonearm to nde completely tree at
stressproducmg mechanical linkage systems until It is time for the auto-
matic lead-m. return, repeat or cut operatlons to take over In IIIIS way
the stylus Is protected from drstortton-producmg lateral thrust, your records

are safeguarded just as they would be on a manual and smce the tonearm
is free It can be moved to any part ol the record manuallyt even durmg
automatic play

The FR-4060 features an unusually sensmve S-shaped tonearm, a newly-
developed Sansut SV27 magnetic cartrtdge wrth superb tonal character-
istics. a spectal low-capacitance output cable. lloatlng-mount base and
platter destgn and many other orrginal Sansul quality details It ls also llt~
ted With a connectlon socket for the Sansut SRO-6 control unit lopttonall
for full remote control of all automatic functtons

Those stereo purists who maintain that a manual turntable Is the epitome
of perfection have only to check out the FR-4060 By adding the conve-
mence ot automatlc operatxon to one at the finest prectsion manuals ever
created. Sansut has come up with a turntable to lully satisfy your spe-
ctlic needs

SansuL

Page 2

Sansuis high-performance FR-40602
No other turntable rivals it for tonal quality and ease-of-operation.

PRECISION PERFORMANCE

4-POLE SYNCHHONOUS MOTOR

The heavy. high-Inertia platter ot the FR~4060
is belt-driven from a 4-pole synchronous motor
WlIh large drive torque Precisron speed con-
trol Is assured by matching motor rotation with
line frequency. thus av0iding incorrect speeds
due to changes In supply voltages The motor
and Its mounting unit are destgned for minimum
Vibration and wow-flutter and low power con-
sumption Heat. motor hurn and other adverse
conditions are avoided

PRECISION FINISHED POLYURETHANE
DRIVE BELT

The belt-drive system. proven to be Ideal for
reducing motor vibration and wow-flutter levels.
employs a super tine polyurethane belt of high
dimensional accuracy, uniform thickness [0.5
mml and excellent aging characteristics.

300M DIECAST ALUMINUM ALLOY PLATTER

Any belt-drive system works best With a heavy.
high inertia platter. such as the 1 7kg (3 8 lbs.)
diecast aluminum alloy platter in the FR-4060
It eliminates low Ireouency Vibration through
strictly controlled balancmg

SUPER-PRECISION CENTER SPINDLE AND
BEARINGS

The bullet-shaped tip of the center spindle
provides maxtmum safety when handling re-
cords ot varying center hole diameters Preci-
sion machined tor accuracy, first by centerless
polishlng then by roller finishing, the rigid spin-
dle made ot high-grade 1&8 stainless-steel op-
erates within an aluminum bearing casmg.
Thrust bearing is a combination ball bearing
and selflubncating. wear-proof tluorrc resm.
The turntables high Signal-to-noise ratio (higher
than 50dB) is assured by the special lithium-
based heavy duty lubricant sealed into the bear-
ing housing.

IDEAL TRIPLE INSULATION

To protect the turntable from howling and any
vibration, however small. which may affect its
tonal quality in operation. the entire motor board
15 floated from the cabinet wrth coil springs
The motor itselt is also floated trom the motor
board with special insulators of synthetic rubber
lined With another type of synthetic rubber of
a ditterent elastic ratio to shut out motor Vibra-
tion and ensure high S/N A third insulation sys»
tem is provided In the cabinet itselt. preventing
howling and other norse through its specral com-
bination of materials which have the elastic co-
efficients of natural rubber and an air cushion.

ThreeWay Suspension System

SUPERB TONAL QUALITY

NEW, LIGHT STYLUS-PRESSURE MM CART-
RIDGE SV-27

The three most important factors for proViding
optimum tonal quality In a turntable are its fre-
quency response transient response and dis-
tortion characteristics The FR-4060 provrdes
excellent results in all three areas through the
use of a new, super light stereo cartridge spe-

cial S-shaped tonearm and other quality details-\

The Sansur SV-27 cartridge has been deve
oped from extenswe and comprehenswe re
search It provides uncolored. Wide dispersion
of source images over an extended frequency
range Remarkable improvements of rigidity
and reduction of mass are achieved by the SV-

27s dual pipe cantilever of titanium alloy an

through the unique method of supporting the
cantilever to provide stylus motion. The ex-
tended frequency response of the cartridge (10
to 23.000Hz) assures correct reproduction of
all sounds. well beyond the audible ranges for
Wide marginal reproduction
