Sansui FR 3080 Brochure

Extracted text from Sansui FR 3080 Brochure (Ocr-read)

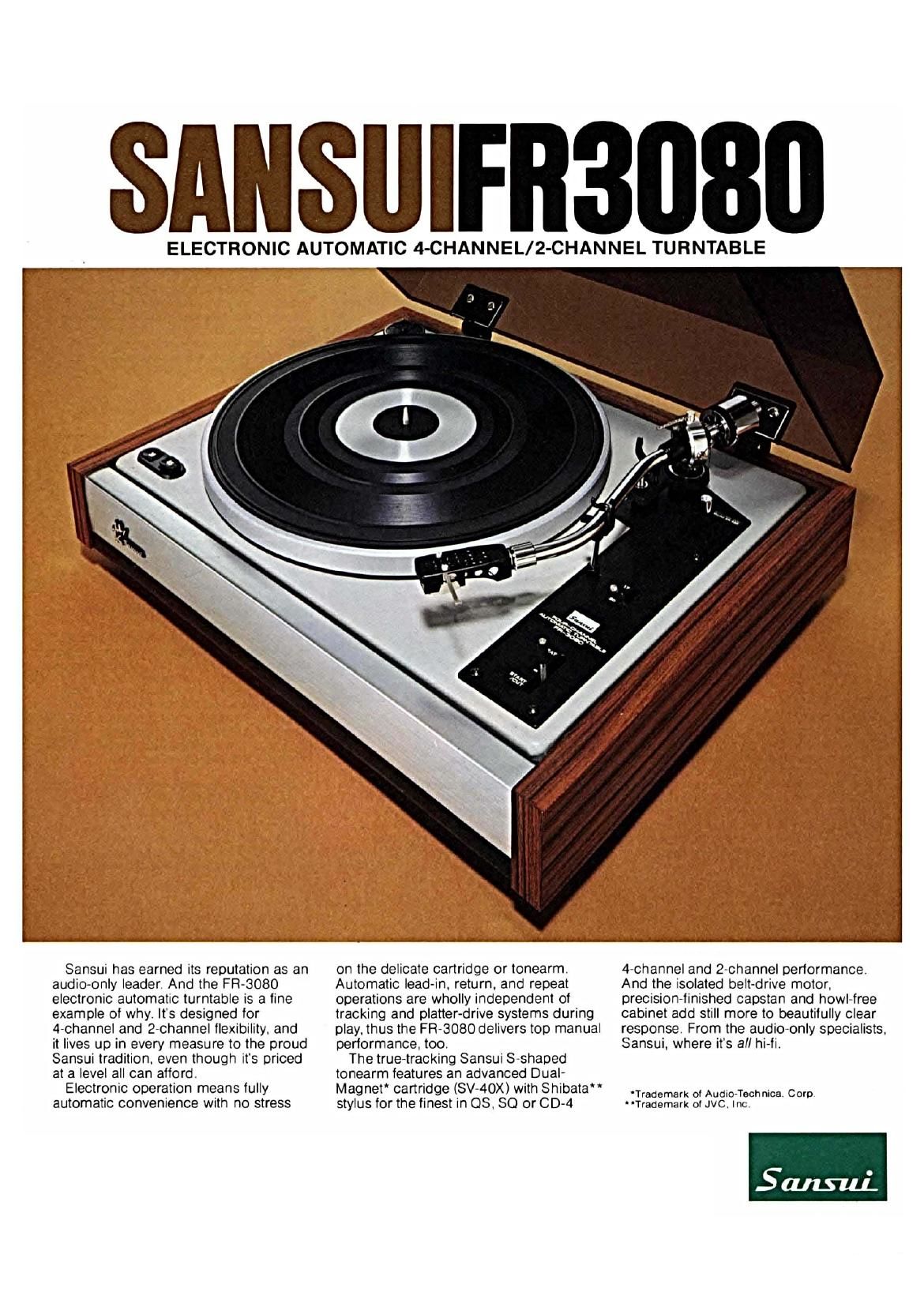

Page 1

SANSIIIFB3080

ELECTRONIC AUTOMATIC 4-CHANNEL/2-CHANNEL TURNTABLE

WWW

Sansui has earned its reputation as an
audio-only leader. And the FR~3080
electronic automatic turntable is a fine
example of why Its designed for
4-channel and 2-channel flexibility, and
it lives up in every measure to the proud
Sansui tradition. even though it's priced
at a level all can afford

Electronic operation means fully
automatic convenience with no stress

'1

~.\'"/

_,____

on the delicate cartridge or tonearm.
Automatic lead-in. return. and repeat
operations are wholly independent of
tracking and platter-drive systems during
play. thus the FR-3080 delivers top manual
performance. too.

The true-tracking Sansui S-shaped
tonearm features an advanced Dual-
Magnet cartridge (SV»4OX) with Shibata
stylus for the finest in OS. 80 or CD-4

4Achannel and 2-channel performance.
And the isolated belt-drive motor,
precision-finished capstan and howl~free
cabinet add still more to beautifully clear
response, From the audio~only specialists,
Sansui. where its all hi-fi.

Trademark of Audio-Tech nica. Corp
"Trademark of JVC Inc.

Salami

Page 2

THE ELECTRONIC AUTO/ MANUAL FROM SANSUI

In 4-Channel or 2-Channel its all hi-fi.

Plays any 4-channel or 2-channel disk
Sansui's outstanding FR-3080 electronic
turntable has been specifically engineered to
deliver the finest musical performance in
conventional stereo (Echannel) as well as all
4channel (08. SO. CD-4) formats. The
Sansui-designed S-shaped tonearm is equipped
with a special Dual-Mag net cartridge employing
the smallest moving magnets possible to
manufacture. The cartridge (SV-40X) is capable
of a flat response over the entire audio range
without irregularities thanks to a separate mag net
and coil for each main channel. This is especially
important in 4channel reproduction for less
crosstalk and better channel separation.

Tension
adtusting screw
of moving unit

Dual magnet

. transducer
Suspension string


Super-permalloy
pole piece

Shlbala
stylus tip

Tapered
cantilever

Shibata stylus for CD-4 and longer wear

The cartridge includes a specially-shaped
Shibata stylus with increased lateral contact
with the record groove. It assures precise
tracing and significantly less wear. both on the
stylus itself and on records. The cartridge/
stylus combination in the FR-3080 extends
high frequency response well over the ultra-
high 50.000Hz mark for perfect handling of
the CD-4 carrier wave. Low-capacitance signal
cords (40pF/m) prevent high-frequency
attenuation.

SPECIFICATIONS

CONTROLS

O Counter-balance weight

0 Skating force canceller

0 Record Slze Selector

O C using lever

O Statically-balanced S-shaped tubular tonearm

Independent automatlc operatlon

One simple-to-use control lever does it all.
Set the record-size selector. then operate the
control to perform the automatic lead-in.
When the stylus touches the record. the
automatic mechanism is set free and the arm
and platter drive systems perform independently

as in any top-quality manual. When the record
is played out. a special Sansui galvo-magnet
detection mechanism triggers the independent
automatic tonearm return function. You can
override these automatic functions at any point.
or even set the control to repeat the cycle of
lead-in, play and return indefinitely, Thus the
Sansui FFt-3080 is a fully independent manual
turntable, or a fully automatic one. The choice
is up to you.

nghly accurate. Independent motor and
heavy platter

The FR'3080 features a 4-pole synchronous
motor with a tested and proven reliability to
deliver accuracy. Motor speed is independently
synchronized at all times regardless of
fluctuations in supply voltage. This high-torque
motor spins a well-balanced. high-inertia
aluminum die-cast platter (SOCm/lz") by
means of a proven belt»drive arrangement
employing a fine urepane (urethane/ neoprene)
belt of excellent physical and aging
characteristics. The resulting wow/flutter and
rumble levels are practically negligible.

StatlcaIIy-balanced tonearm wlth skatlng-Iorce
canceller

Minimized friction is the key to the smooth
performance of the statically-balanced tubular
tonearm in the FFl-SOBO. The elongated S shape
exhibits optimum lateral balance for true
tracking accuracy. The built-in skating-force
canceller eliminates harmful distortion and
stylus/ record wear caused by uneven pressure
on groove walls. It has a directreadout pressure
dial. The tonearm also features a universal-type
connector with gold-plated terminals.

Sella-walnut graln cablnet and Isolated motor
The cabinet of the FR-SOBO is as functional

as it is attractive. The use of solid and expertly

joined wooden parts suppresses howling,

and the unique motor suspension system

developed by Sansui (patent pending) serves

as a dramatic way to reduce all types of noise.

TYPE Two-speed. belt-driven automatic
turntable
OPERATION MODES

Manual/Automatic (lead-in. return/

stoD. repeat. cutl

PLATTER Aluminum alloy die-cast. dlameter
300mm (12')

MOTORS 4-pole synchronous for platter drive
16-pole (3 rpm) geared synchronous
for automatic operation

SPEEDS 33Arpm5i 45mm

wow a FLUTIER Less than 0.07% (W.R.M.S.)
SlGNALvTO-NOISE RATIO

Better than 52dB (lEC-Bl

Better than 60dB (DIN-Bl

Statically balanced S-shaped tubular
with universal shell connector
TONEARM LENGTH (stylus up to ermplvot)
220mm (8" ."l

15mm 06")

RUMBLE
TONEARM

OVERHANG

SANSUI ELECTRIC CO.. LTD. 14-1. 2-CHOME. IZUMI. SUGINAMI-KU. TOKYO 168. JAPAN/TELEPHONE: 323-1111/TELEX: 232-2076
SANSUI ELECTRONICS CORPORATION 5541 QUEENS BLVD. WOODSIDE. NEW YORK 11377. U.S.A./TELEXZ NEW YORK 422633 SEC Ul
SANSUI AUDIO EUROPE S A. DIACEM BUILDING. VESTINGSTRAAT 53-55. 2000 ANTWERP. BELGIUM/TELEX: ANTWERP 33538

TRACKING FORCE SETTING
O to 4 grams
APPLICABLE CARTRIDGE WEIGHT
4 to to grams
CARTRIDGE Dual-magnet type (SV-4OX)
FREQUENCY RESPONSE
to to 50.000Hz
CHANNEL SEPARATION
2508 (1.00042)
OUTPUT VOLTAGE
2.2mV per channel (1.000Hz)
LOAD IMPEDANCE
50K to 100K ohms
STYLUS SN-4OX. diamond. Shibata stylus
OPTIMUM TRACKING FORCE
2 grams
GENERAL
POWER REQUIREMENTS
120/240V (Usable 100-130/
210-260Vl. 50/60Hz

POWER CONSUMPTION
15 watts
DIMENSIONS
445mm (rm.'th165mm (6%"le
357mm (I4Vra5D
7.8kg (17.2 lbs.) Net
9.5kg (20.9 lbs.) Packed
ACCESSORIES 45mm record spindle adaptor, oil.
removable dust cover with automatic
hinges. stylus brush. overhang
gauge. motor pulley for son
or BOHz

WEIGHT

Design and specifications subiact to change without
notlce for Improvements,

Sansui.

Printed in Japan 5600311
