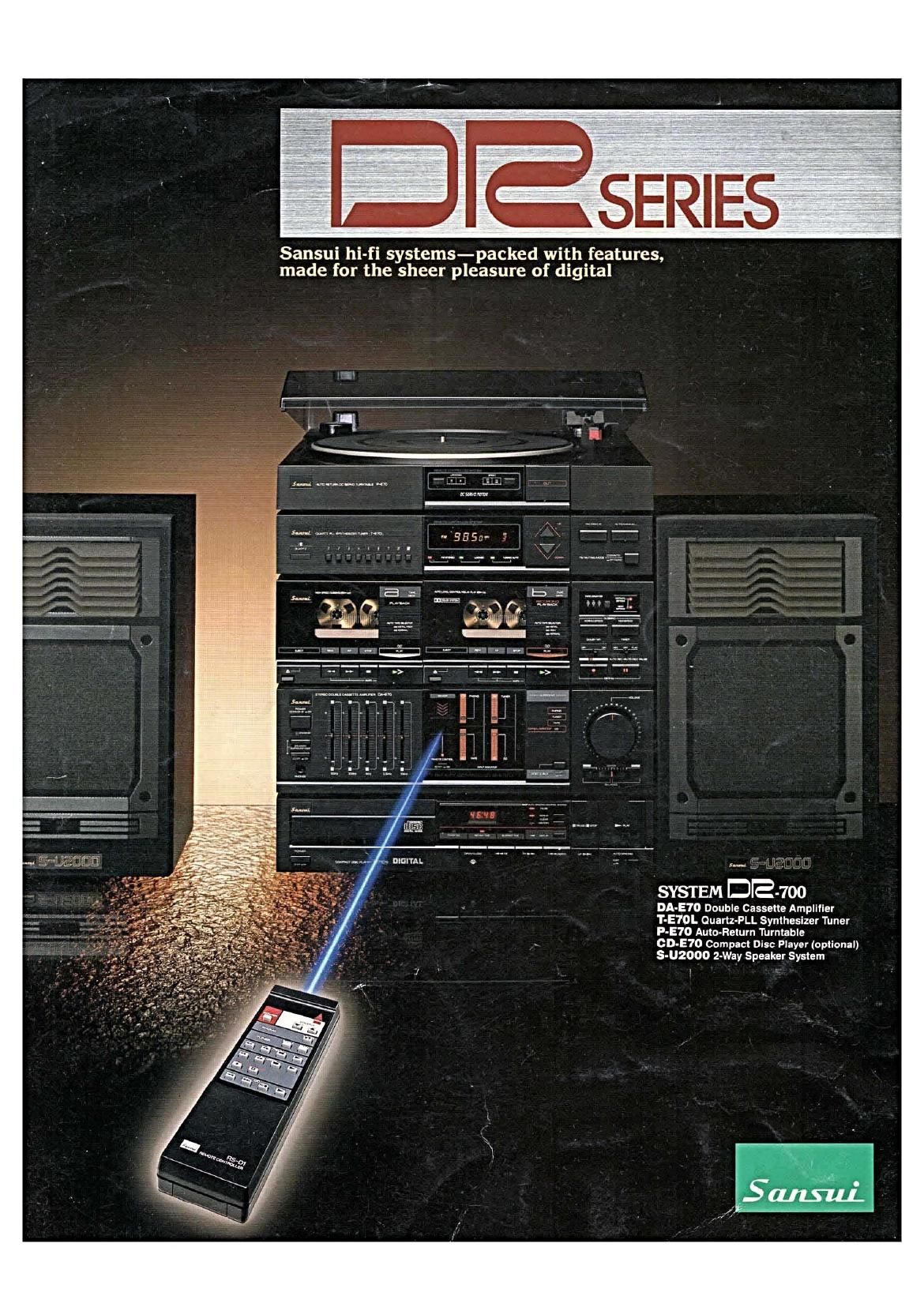

Page 1
Sansui hi-fi systems-packed with features,
made for the sheer pleasure of digital
:m
SYSTEM [DE-700
DA-E'IO Double Cassetle Amplifier
T-E7OL Quartz-PLL Synthesizer Tuner
P-E70 Auto-Return Turntable
CD-E'IO Compact Disc Player (optional)
S-UZOOO 2-Way Speaker System
Page 2
"m-
Shelflaop compacts for
digital sound
SYSTEM DIE-700
0High power output of 65 watts x 2 (DIN)
020-key full-function remote control
05 inputs: PHONO, TUNER, CD, TAPE,
VIDEO SOUND/AUX
05-band graphic equalizer (100, 330Hz,
1k. 3.3K, 10kHz)
OConnections for Speakers A, B and
Surround Sound
0Double cassette transports with full
logic tape control
OOne-touch dubbing at normal/high speed
IContinuous relay play of two tapes
0AMPS (Automatic Music Program
Search) for tape
0Dolby B noise reduction for low tape
noise
0Accurate quartz-PLL synthesizer tuning
oPresets for 8 FM and 8 MW/LW stations
0Convenient auto-return record playback
0Low-mass straight tonearm for better
tracking
0Two-way speaker systems with 165mm
woofers
OCD player (optional) with 3-beam laser
pickup, random programming of up to
16 tracks, auto spacing and 3-way repeat
"'Dolby" and the double-D symbol are trademarks oi Dolby
Labotatories Licensing Corporation.
SPECIFICATIONS
DA-E'Io [AMP] THD: 0.5% (at rated output)
Freq. Response: 10-50,000Hz SIN Ratio: SOdB
[CASSETTE DECK] Wow 5. Flutter: 0.06% (WRMS)
sm Ratio: ewe (Dolby B" on)
Dimensions (W x H x D): 380 x 222 x 301mm Weight: 8.1kg
'I'-E70I. FM Sensitivity: 10.8d81l03pv (DIN)
Dimensions (W x H x D): 380 x 67 x 227mm Weight: 1.7kg
P-ETO Wow II Flutter: 0.06% (WRMS)
Dimensions (W x H x D): 380 x 98 x 365mm Weight: 2.9kg
CD-E70 THD: 0.003% SIN Ratio: 100dB (lEC-A-WTD)
Dimensions (W x H x D): 380 x 62 x 313mm Weight: 36kg
S-UZOOO Woofer: 165mm cone type
TWeeter: 50mm cone type
Dimensions (W x H x D):
226 x 368 x192mm
Weight: 3.4kg
SYSTEM DIE-600
0High power output of 35 watts x 2 (DIN)
04 inputs: PHONO, TUNER, CD/AUX,
TAPE
05-band graphic equalizer (100, 330Hz,
1k, 3.3k, 10kHz)
ODouble cassette transports
0Normallhigh speed dubbing
OContinuous relay play of two tapes
0Mic mixing with source program
ODolby B noise reduction system for low
tape noise
0Accurate quartz-PLL synthesizer tuning
OPresets for 8 FM and 8 MW/LW stations
OConvenient auto-return record playback
0Low-mass straight tonearm for better
tracking
0Two-way speaker systems with 165mm
woofers
OCD player (optional) with 3-beam laser
pickup. random programming of up to
16 tracks, auto spacing and 3-way repeat
SPECIFICATIONS
DA-ESO [AMP] THD: 0.5% (at rated output)
Freq. Response: 10-50,000Hz SIN Retlo: SDdB
[CASSET TE DECK] Wow It Flutter: 0.12% (WRMS)
SIN thlo: 64dB (Dolby B on)
Dimensions (W x H x D): 380 x 222 x 301mm Weight: 5.9kg
1-E7oL FM Sensitivity: meant/09w (DIN)
Dimensions (W x H x D): 380 x 67 x 227mm Weight: 1.7kg
P-Eso Wow 3. Flutter: 0.06% (WRMS)
Dimensions (W x H x D): 380 x 98 x 365mm Weight: 2.9kg
CD-E70 THD: 0.003% SIN Ratio: 100dB (lEC-AWTD)
Dimensions (W x H x D): 380 x 82 x 313mm Weight: 3.6kg
S-UIOOO Wooter: 165mm cone type
TWeeter: 50mm cone type
Dimensions (W x H x D): 226 x 368 x 192mm Weight: 3.2kg
SYSTEM DIE-500
DA-ESO Double Cassette Amplliler
T-ESOI. FMIMW/LW Timer
P-ESO Auto-Return Tumtabie
CD-EIO Compact Disc Player (optional)
S-UIOOO 2-Wey Speaker System
UNIT 10A. LYON INDUSTRIAL ESTATE. ROCKWAFIE AVENUE, GREEN 0RD.
MIDDX U86. 0AA, ENGLAND/TELEX: 895-2103 (SANSUI G)
SYSTEMDEeoo
DA-ESO Double Cassette Amplifier
'I'-E70L Ousrtz-PLL Synthesizer Tuner
P-E50 Auto-Retum Titrntable
ell-£70 Compact Disc Player (optional)
S-U1000 2-Wsy Speaker System
SYSTEM DIE-500
sHigh power output of 35 watts x 2 (DIN)
04 inputs: PHONO, TUNER, CD/AUX,
TAPE
05-band graphic equalizer (100, 330Hz,
1k, 3.3K, 10kHz)
ODouble cassette transports
oNormal/high speed dubbing
0Continuous relay play of two tapes
0Mic mixing with a source program
ODoiby 8 noise reduction system for low
tape noise
OFM interstation noise muting
03-band radio reception: FM, MW and LW
OConvenient auto-return record playback
0Low-mass straight tonearm for better
tracking
0Two-way speaker systems with 165mm
woofers
OCD player (optional) with 3-beam laser
pickup, random programming of up to
16 tracks, auto spacing and 3«way repeat
SPECIFICATIONS
DhEso [AMP] THD: 0.5% (at rated output)
Freq. Response: 10-50.000Hz SIN Ratio: 90dB
[CASSETTE DECK] Wow 3. Flutter: 0.12% (WRMS)
SIN Ratio: 64dB (Dolby B" on)
Dimensions (W x H x D): 380 x 222 x 301mm Weight: 59kg
'l'-E50L FM Sensitivity: 10.8dBI/09uv (DIN)
Dimensions (W x H x D): 380 x 67 x227mm Weight: 1.7kg
P-Eso Wow s Flutter: 0.06% (WRMS)
Dimensions (W x H x D): 380 x 98 x 365mm Weight: 2.9kg
CD-ETD THD: 0.003% SIN Retlo: 100dB (lEC-A-WTD)
Dimensions (W x H x D): 380 x 82 x 313mm Weight: 3.6kg
s-urooo Wooten 165mm cone type
Theeter: 50mm cone type
Dimensions (W x H x D): 226 x 368 x 192mm Weight: 3.2kg
0 Design and specifications subject to change without notice
for improvements.
eln some areas. only the 2-band FMIAM VILISIOD Is available
Stun u".
SANSUI ELECTRIC 00., LTD.
14-1, IZUMI ZCHOME. SUGINAMl-KU. TOKYO 168.
JAPAN/TELEX: J28310 SANSUITK
SANSUI ELECTRONICS (UK. LTD.
Printed in Japan (SOBDSKIT DR-UK)Code No AT-27m
