Sansui D 69 C Service Manual

Page 1

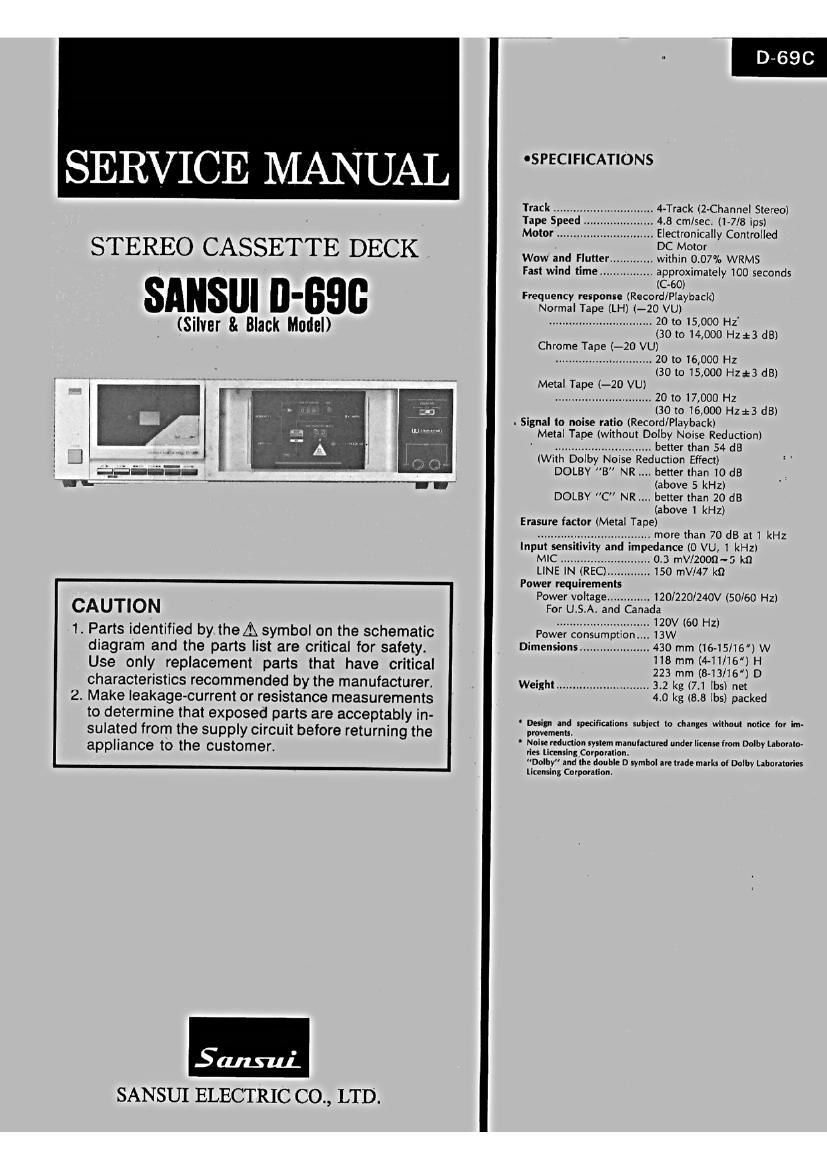

D-69C

SERV CE MANUAL 'SPECIFICATIONS

Irack .........

. 4»Track lZ-Channel Stereo)
Yape Speed . 4.8 cm/sec. (1-7/8 ips)
Motor . Electronically Controlled

STEREO CASSETTE DECK Wow and Flutter .vaEhmoi)%7/n WRMS

Fast wind time ..... . approximately 100 seconds

(060)
I Frequency response (Record/Playback)
Normal Tape (LH) (-20 VU)

- ,,,,,,, 20 to 15,000 Hz
(Silver 8. Black Model) (30.014900 Hm d8,
Chrome Tape (-20 VU)
............................. 20 to 16,000 Hz
13010 15,000 HZ$3 dB)

Metal Tape (-20 VU)
t. .20 to 17,000 Hz
(30 to 16,000 Hz:3 d8)
. Signal lo norse ratio (Record/Playback)
Metal Tape (without Dolby Noise Reduction)
............................ better than 54 dB
(With Dolby Noise Reduction Effect)
DOLBV "B NR better than 10 dB
(above 5 kHz)
DOLBY C" NR.... better than 20 dB
(above 1 kHz)
Erasure factor (Metal Tape)
................. more than 70 dB at 1 kHz
Input sens vity and impedance (0 VU, 1 kHz)

MIC ............. 0.3 mV/ZOOfl~5 k9
LINE IN (REC) 150 mV/47 kn
Power requirements
Power voltage ............. 120/220/240V (50/60 Hz)
CAUTION For U.S.A. and Canada
, _, , ..................... 120V (60 Hz)
1. Parts Identified by theA symbol on the schematic Power consumption. 13w
diagram and the parts list are critical for safety. Dimenswns -------------- 33 mm fi-lflg'hw
Use only replacement parts that have critical 223 fig Emmy; D
characteristics recommended by the manufacturer. Weight ............................ 3.2 kg17.1 lbs) net
2. Make leakage-current or resistance measurements 4.0 kg lea lbs) packed
to determlne that exposed parts are acceptably m' ' Design and lperifi't-ltlons subim to changes without notice for im-
sulated from the supply crrcutt before returning the mung... I m red d I. ' mm m I
. - n . m... m.
appliance to the customer. .erTanflfgéxnflixr' " .. ' m" , '
Dolby and Ihe double D symbol are trade mark: 0100le Labnratories
licensinl Corporation.
0
Satmu.

SANSUI ELECTRIC CO., LTD.

Page 2

CAUTION

. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX (EXPORT) on

the parts list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA ..... Manufactured for Canadian market.

SA ..... . Manufactured for South African market.
BS, UK . Manufactured for United Kingdom market.
EU . Manufactured for European market.

AS.. . Manufactured for Australian market.
XX (EXPORT) . . Standard Version.
NON MARK ........ Common Parts.

. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual, the stock No's are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from pans lists

in this service manual, refer to the Common Parts List for capacitors

& resistors, which was issued on February 1983.

0Abbreviations List

. Abbreviations in this service manual are as follows.

ClR. : Carbon Resistor E.B.L. : Low Leak Bi-Polar

S.R. : Solid Resistor Electrolytic Capacitor

Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor

M.R. : Metal Film Resistor F.C. : Film Capacitor

FR. : Fusing Resistor M.P. : Metalized Paper Capacitor

N.I.R. : Non-Inflammable Resistor P.C. : Polystyrene Capacitor

A.R. : Array Resistor G.C. : Gimmic Capacitor

CC. 2 Ceramic Capacitor A.C. : Array Capacitor

C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temoerature Compensation S.V.R : Semi Variable Resistor

E.C. : Electrolytic Capacitor SW. : Switch

E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip 0. : Chip Capacitor

EB. : Bi-Polar Electrolytic

Capacitor
