Sansui D 65 CR Service Manual

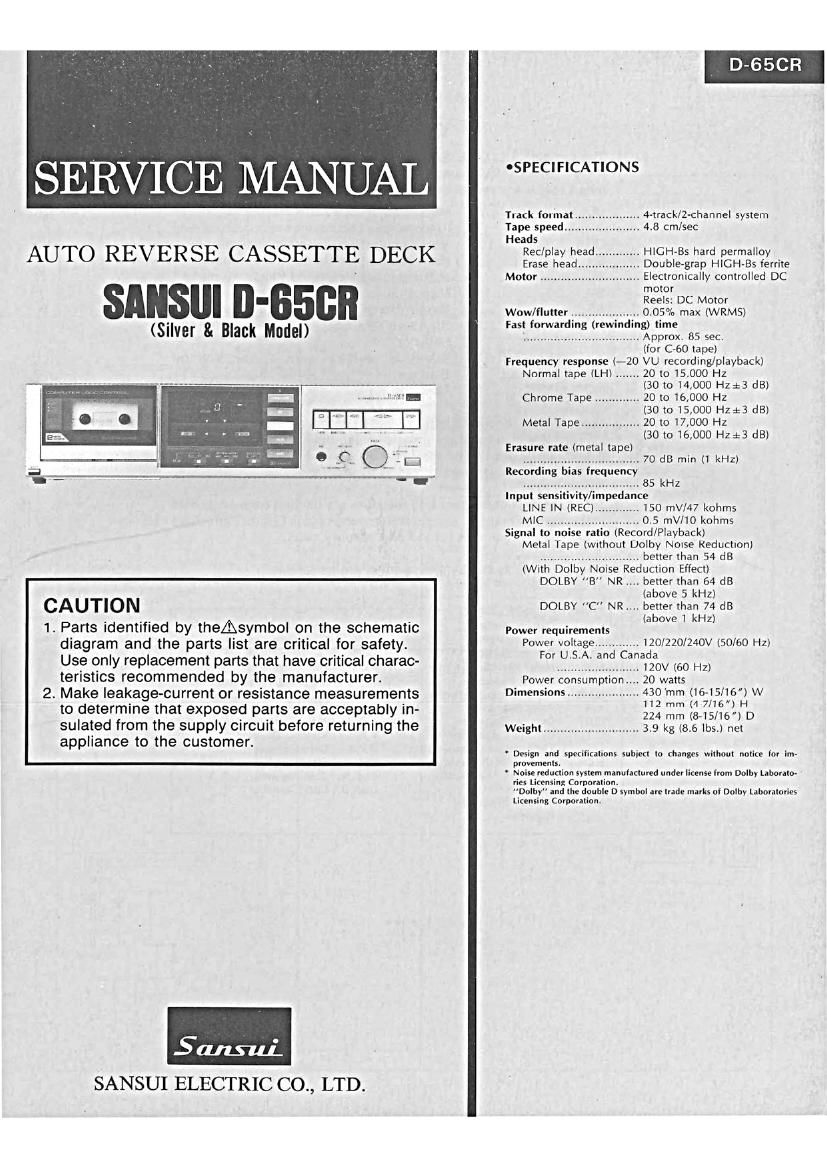

Page 1

D-65CR

SERV CE MANUAL 'SPECIFICATIONS

Track format.

4track/2-cha nnel system

Tape speed... 4.8 cm/sec
Heads
Rec/play head. .. HlCH-Bs hard permalloy
AUTO REVER SE CASSETTE DECK Erase head... Double-grap HIGH-BS ferrite
Motor .............. Electronically controlled DC
motor
A" I n. Reels: DC Motor
Wow/flutter: .................. 0.05% max (WRMS)
(Silver & Black Model) f.ffffiifffffifff-.ff..-23;"; 85

(for (3-60 tape)
Frequency response (*20 VU recording/playbackl

Normal tape (LH) ....... 20 to 15,000 Hz

(30 to 14,000 H213 dB)
Chrome Tape ............ 20 to 16,000 Hz

(30 to 15,000 H213 dB)
Metal Tape ................. 20 to 17,000 Hz

(30 to 16,000 H213 dB)
Erasure rate (metal tape)
.................................. 70 dB min (1 kHz)

.............. 85 kHz
ty/impedance
LINE IN (REC). 150 mV/47 kohms
MIC ............ 0.5 mV/lO kohms

Signal to noise ratio (Record/Playback)
Metal Tape (without Dolby NOISE Reduction)
............................. better than 54 dB
(With Dolby Noise Reduction Effect)
DOLBY B NR better than 64 dB
(above 5 kHz)

CAUT|ON DOLBY "C" NR.... better than 74 dB

1. Parts identified by theAsymboi on the schematic power requirements we 1 kHz
diagram and the parts list are critical for safety. Power voltage 120/220240V (50/60 HZ)
Use only replacement parts that have critical charac- F" U'SA 3" mfgv (60 Hz)
teristics recommended by the manufacturer. Power 233555;; " 20 watts

2. Make leakage-current or resistance measurements Dimensions ~~~~~~~~~~~~~~ ~ 430W" (16-5/16)W
to determine that exposed pans are acceptably in- 3,2; m ggjg'gblfiD
sulated from the supply circuit before returning the Weight ............................ 3.9 kg (8.6 lbs.) net

appliance to the customer.

' Design and speculation; subject to changes without notice for im-
prover-rants.

' Noiw reduction system manufactured under lirense imm Dolby Laborato-
ries licensing Corporation.
"Dolby" amt the double D symbol are trade marks at Dolby Laboratories
tiansing Corporation.

Sans-111°.
SANSUI ELECTRIC CO., LTD.

Page 2

D-GSCR

CAUTION

1. The symbols, UL, CSA. SA. BS. UK, EU, AS, XX < EXPORT> and

XX-V < EXPORT(V)> on the parts list and the schematic diagram
mean followings respectively.

UL ............................... Manufactured tor U.S.A market.
(Undewvriters Laboratories approved model.)
Manufactured for Canadian market.
Manufactured for South African market.

. Manufactured for United Kingdom market.
Manufactured for European market.
Manufactured for Australian market.

XX ........... Standard Version with Inner Voltage
Selector.

XX-V ....Standard Version with Outer Voltage
Selector.

NON MARK ................ Common Parts.

. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from parts lists

in this service manual, refer to the Common Parts List for capacitors

& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

-Abbreviations List

C.R. : Carbon Resistor EBL : Low Leak Bi-Polar

S.R. : Solid Resistor Electrolytic Capacitor

Ce.R. : Cement Resistor Ta.c. : Tantalum Capacitor

MR : Metal Film Resistor FtC. : Film Capacitor

F.R. : Fusing Resistor M.P. : Metalized Paper Capacitor

N.|.R. : Non-Inllammable Resistor P.C. : Polystyrene Capacitor

A.R. 2 Array Resistor GtC. : Gimmic Capacitor

C.C. : Ceramic Capacitor AtC. : Array Capacitor

C.T. 2 Ceramic Capacitor. VtR. : Variable Resistor
Temperature Compensation SVR : Semi Variable Resistor

EtC. : Electrolytic Capacitor SW. : Switch

E.L. : Low Leak Electrolytic Chip Ft. : Chip Resistor
Capacitor Chip Ct : Chip Capacitor

E.B. : Bi-Polar Electrolytic

Capacitor
