Sansui D 350 W Service Manual

Page 1

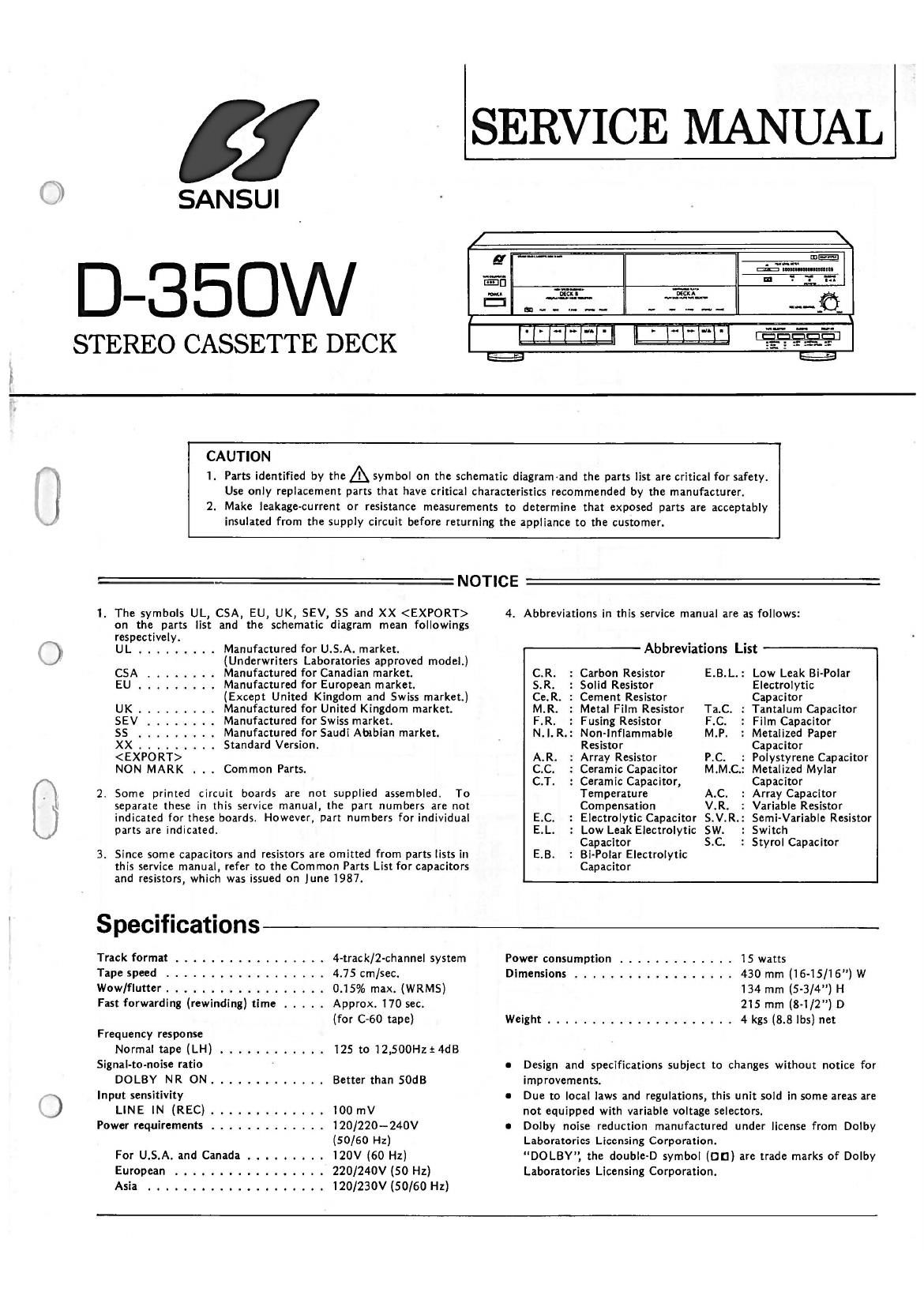

SERVICE MANUAL

SANSUI

-_._-.- HIE

D-BSOW =

STEREO CASSETTE DECK

-
DECKA
u..._..-.- fl

CAUTION

1. Parts identified by the A symbol on the schematic diagram'and the parts list are critical for safety.
Use only replacement parts that have critical characteristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements to determine that exposed parts are acceptably
insulated from the supply circuit before returning the appliance to the customer.

NOTICE

1. The symbols UL, CSA, EU, UK, SEV, SS and XX 4. Abbreviations in this service manual are as follows:
on the parts list and the schematic diagram mean followings
respectively.

U

L ......... Manufactured for U.S.A. market. ---- Abbreviations List
(Underwriters Laboratories approved model.)
CSA ........ Manufactured for Canadian market. C.R. : Carbon Resistor E.B.L.: Low Leak Bi-Polar
EU ......... Manufactured for European market. S.R. 2 Solid Resistor Electrolytic
(Except United Kingdom and Swiss market.) Ce. R. : Cement Resistor Capacitor
UK ......... Manufactured for United Kingdom market. M.R. : Metal Film Resistor Ta.C : Tantalum Capacitor
SEV ........ Manufactured for Swiss market. F.R. : Fusing Resistor F.C. : Film Capacitor
SS ......... Manufactured for Saudi Ababian market. N.I.R.: Non»lnflammable M.P : Metalized Paper
XX ......... Standard Version. Resistor Capacitor
A.R. : Array Resistor P.C : Polystyrene Capacitor
NON MARK . . . Common Parts. C.C. : Ceramic Capacitor M.M.C.: Metalized Mylar
C.T. : Ceramic Capacitor, Capacitor
2. Some printed circuit boards are not supplied assembled. To Temperature A.C. : Array Capacitor
separate these in this service manual, the part numbers are not Compensation V.R. ; Variable Resistor
indicated for these boards. However, part numbers for individual E.C. : Electrolytic Capacitor S.V.R.: Semi-Variable Resistor
parts are indicated. E.L. : Low Leak Electrolytic SW. : Switch
Capacitor S.C. : Styrol Capacitor
3. Since some capacitors and resistors are omitted from parts lists in E.B. : Bi-Polar Electrolytic
this service manual, refer to the Common Parts List for capacitors Capacitor
and resistors, which was issued on June 1987.
C I I
Specrflcations
Track format ................. 4-track/2-channel system Power consumption ............. 15 watts
Tape speed ...... . ........... 4.75 cm/sec. Dimensions .................. 430 mm (16-15/16) W
Wow/flutter .................. 0.15% max. (WRMS) 134 mm (5-3/4) H
Fast forwarding (rewinding) time ..... Approx. 170 sec. 215 mm (8-1/2") D
(for C-60 tape) Weight ..................... 4 kgs (8.8 lbs) net
Frequency response
Normal tape (LH) ............ 125 to 12,500Hzi4dB
Signal-to-noise ratio > a Design and specifications subject to changes without notice for
DOLBY NR ON ............. Better than 50dB improvements.
Input sensitivity 0 Due to local laws and regulations, this unit sold in some areas are
LINE IN (REC) ............. 100 mV not equipped with variable voltage selectors.
Power requirements ............. 120/220-240V o Dolby noise reduction manufactured under license from Dolby
(50/60 Hz) Laboratories Licensing Corporation.
For U.S.A. and Canada ......... 120V (60 Hz) DOLBY, the double-D symbol (Du) are trade marks of Dolby
European ................. 220/240V (50 Hz) Laboratories Licensing Corporation.

Asia . ................... 120/230V (50/60 Hz)
