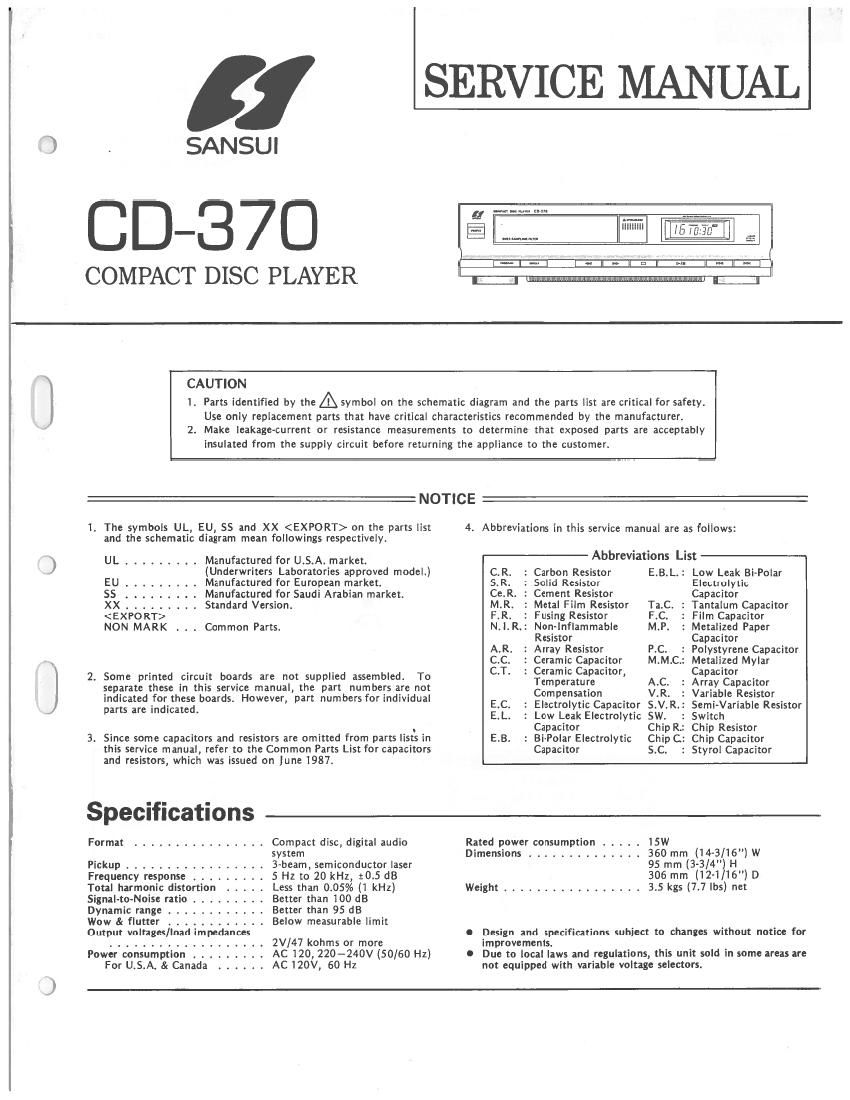

lSERVICE MANUAL

SANSUI

CD-37O

COMPACT DISC PLAYER

E 11717?th

l

CAUTION

1. Parts identified by the A symbol on the schematic diagram and the parts list are critical for safety.
Use only replacement parts that have critical characteristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements to determine that exposed parts are acceptably
insulated from the supply circuit before returning the appliance to the customer.

. The symbols UL, EU, 55 and XX on the parts list
and the schematic diagram mean followings respectively.

UL ......... Manufactured for U.S.A. market.
(Underwriters Laboratories approved model.)
Manufactured for European market.

. Manufactured for Saudi Arabian market.
Standard Version.

NON MARK . . . Common Parts.

. Some printed circuit boards are not supplied assembled. To
separate these in this service manual, the part numbers are not
indicated for these boards. However, part numbers for individual
parts are indicated.

NOTICE

4. Abbreviations in this service manual are as follows:

Abbreviations List

C. R. : Carbon Resistor E.B.L.: Low Leak Bi-Polar

S,R. : Solid Resistor Electrolytic

Ce.R. : Cement Resistor Capacitor

M.R. : Metal Film Resistor Ta.C. : Tantalum Capacitor

F.R. : Fusing Resistor F C : Film Capacitor

N,l.R.: Non-lnflammable M P : Metalized Paper
Resistor Capacitor

A.R. : Array Resistor P.C. : Polystyrene Capacitor

C.C. : Ceramic Capacitor M.M.C.: Metalized Mylar

C.T. : Ceramic Capacitor, Capacitor
Temperature A C : Array Capacitor
Compensation V.R. : Variable Resistor

E.C. 2 Electrolytic Capacitor S.V.R.: Semi~Variable Resistor

E.L. : Low Leak Electrolytic SW. : Switch

. Capacitor Chip R; Chip Resistor
. Since some capacitors and resistors are omitted from parts lists in E.B. : Bi-Polar Electrolytic Chip C.: Chip Capacltor
this service manual, refer to the Common Parts List for capacitors Capacitor S.C. : Styrol Capacitor
and resistors, which was issued on June 1987.
I . .
Specifications
Format . . . . ....... . . . . . Compact disc, digital audio Rated power consumption ..... 15W
system Dimensions ......... . . . . . 360 mm (14-3/16") W
Pickup ................. 3~beam, semiconductor laser 95 mm (3-3/4") H
Frequency response ......... 5 Hz to 20 kHz, $0.5 dB 306 mm (l2-1/16") D
Total harmonic distortion ..... Less than 0.05% (1 kHz) Weight ................. 3.5 kgs (7.7 lbs) net
Signal-to-Noise ratio . . . . . . . . Better than 100 dB
Dynamic range ..... . . . . Better than 95 dB
Wow It flutter ............ Below measurable limit

Output voltages/load impedances
..... 2V/47kohmsormore

Power consumption . . . . . . AC 120, 220-240V (50/60 Hz)

For U.S.A. Sr Canada ...... AC 120V, 60 Hz

I Design and specifications subiect to changes without notice for
improvements.

0 Due to local laws and regulations, this unit sold in some areas are
not equipped with variable voltage selectors.

Page 2

I CD370

1. SAFETY PRECAUTIONS FOR CD PLAYER

CAUTION: USE OF CONTROLS FOR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECI FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BV ANYONE EXCEPT PROPERLY QUALI-
FIED SERVICE PERSONNEL.

" The following label has been affixed to The unit, listing The proper
procedure for working with The laser beam,

(UL and XX model only)

PRODUCT COMPLIES WITH DHHS
RULES 21 CFR, SUBCHAPTER J,
PART 1040 10.

MANUFACTURED:

(EU model only)

1 THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO
INFORM THAT THE APPARATUS CONTAINS A LASER COMPO~

NENT.
2. THIS LABEL Is ATTACHED TO THE INSIDE OF THE TOP COVER CLASS 1
As ILLUSTRATED. so THAT ANY FURTHER PROCEDURE WILL
BRINGING THE USER INTO EXPOSURE WITH THE LASER LASER PRODUCT
BEAM.

3. THE WARNING LABEL INFORMING 0F RADIATION IS PLACED
INSIDE THE UNIT AS SHOWN IN THE ILLUSTRATION, TO
WARN AGAINST FURTHER MEASURES ON THE UNIT. THE
EQUIPMENT CONTAINS A LASER COMPONENT RADIATING LA-
SER RAYS EXCEEDING THE LIMIT OF LASER PRODUCTS OF
CLASS 1.

IEU model only)

ADVARSELI I:]

u vuuc LASERSTRAUNG VED ABNING.
SIKKERHEDSAFBRVDERE ER UDE
AF FUN 0N. UNDGA UDSEflELSE

FOR 5 NE. _J'-
\
