Sansui BA 100 Service Manual

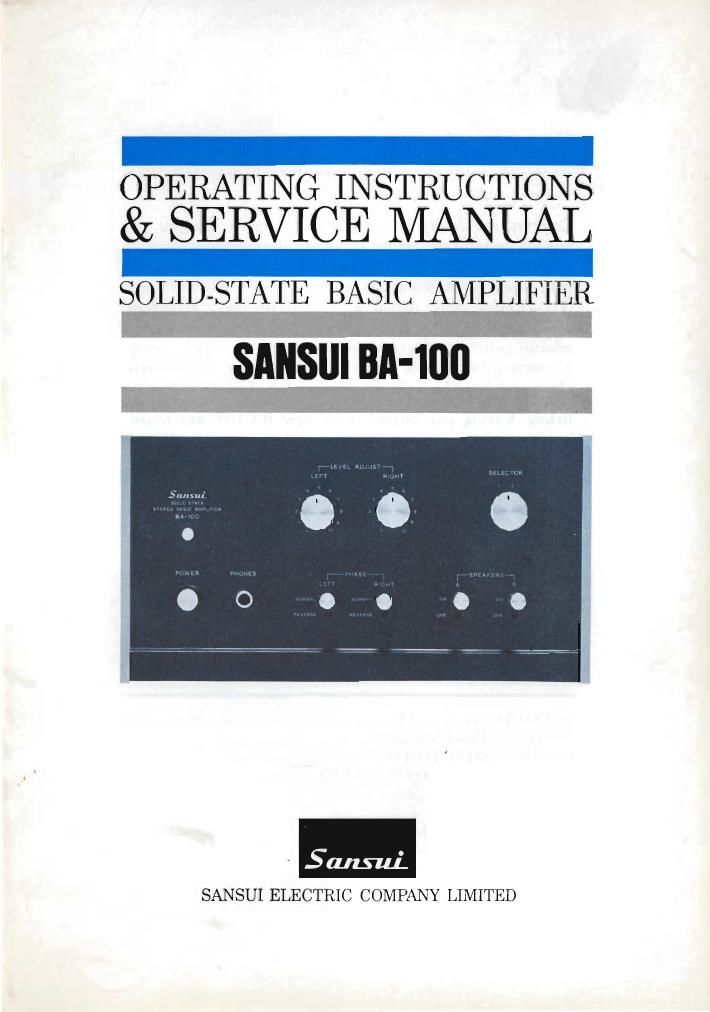

Page 1

-
OPERATING INSTRUCTIONS

& SERVICE MANUAL

_
SOLID- STATE BASIC AMPLIFIER

1ANSlII 1111-100

SANSUI ELECTRIC COMPANY LIMITED

Page 2

Congratulations on joining the thousands of proud, satisfied
owners of quality stereo components from Sansui, the worlds
foremost audio-only specialist.

Designed specifically for an ardent audiophile like you, the
BAAIOO features the refined non-glare black panel common to
all Sansui professional components; thoroughly direct-coupled
pure complemeutary circuits which deliver a full 100 watts
(4.0! in music power output with unprecedentedly good tone
quality; two sets of program inputs controlled by the front
selector switch; two sets of speaker terminals which permit
connecting two sets of stereo speaker systems; and separate
phase switches which simplify the speaker phasing.

Before leaving our factory, your new BA-lOO was tested,
inspected and certified to be in perfect operating conditions.
It is now up to you to keep it that way. This manual has been
prepared to guide you in connecting and operating the BA-IOO
correctly. It contains some very helpful information on using
controls properly and operating components most effectively.
Please read it carefully before operating the amplifier and
retain it for future reference.

CONTENTS

CONNECTIONS ......
SWITCHES AND CO
FOUR-CHANNF S IhRIy
ELECTRON It

SCH LMATIC DIAC

D ASSEMBLY PR(

TEST POINTS

ALIGNMENT .

PRINTED CIRC BOARDS AND PARTS LIST

OTHER IAR'L, AND THEIR POSITION ON CHASSIS
